EATON ECN5422CAE PANEL PUMP 440/460VAC NEMA 3R 460V 25HP

Product Description

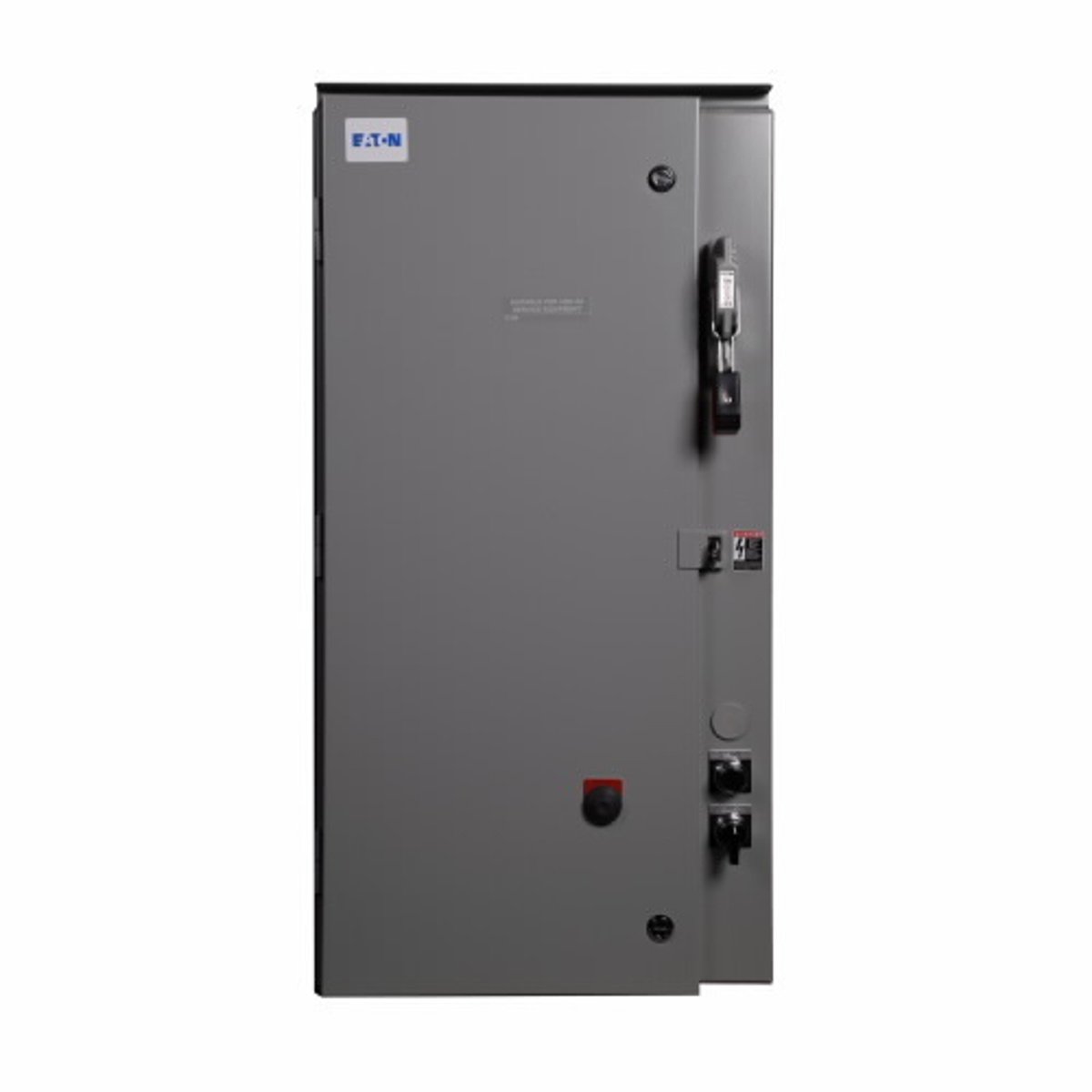

The EATON ECN5422CAE is a pump control panel designed for industrial applications. This panel operates at 440/460 volts with a frequency of fifty to sixty hertz and is suitable for motors rated at twenty-five horsepower. The enclosure is NEMA Type 3R, which ensures protection against the weather. This panel is part of the Freedom series, which combines reliable control features with robust construction.

• Flange style disconnect handle (fusible or circuit breaker)
• NEMA 3R painted steel enclosure
• 600 V/60 A type R fusible clip

Product Highlights

The EATON pump panel features a start pushbutton and a hand-off-auto selector switch control for easy operation. The design includes a disconnect, contactor, and overload relay, ensuring compatibility with the Freedom line of combination starters. Its dimensions are eight point four seven inches length, eighteen point eight six inches width, and thirty-eight point four inches height.

Product Information

Standard Information

• Manufacturer: EATON
• UPC: 782114138908

Technical Specifications

• MPN: ECN5422CAE
• Motor Power: 25 hp
• Coil Voltage: 440/460 VAC
• Enclosure Type: NEMA 3R
• Dimensions: 8.47 in L x 18.86 in W x 38.4 in H
• Weight: 67 lb
• Application: Industrial pumping systems
• Country of Origin: United States
