Eaton ECN1621AAA-R63/D Freedom NEMA enclosed control 110V/50 Hz-120V/60 Hz

Product Description

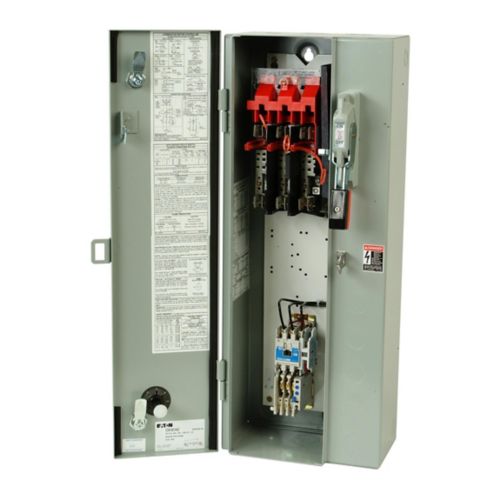

The Eaton ECN1621AAA-R63/D Freedom NEMA enclosed control operates at 110V/50 Hz-120V/60 Hz and is suitable for general-purpose Type 1 applications. This combination non-reversing starter features a disconnect switch and NEMA 3R enclosure. It utilizes a 9-45A solid-state overload relay without ground fault protection and is designed for three-phase systems, NEMA size 2.

• Combination with disconnect switch
• 9-45A solid-state relay without ground fault
• Suitable for general-purpose Type 1 applications

Product Highlights

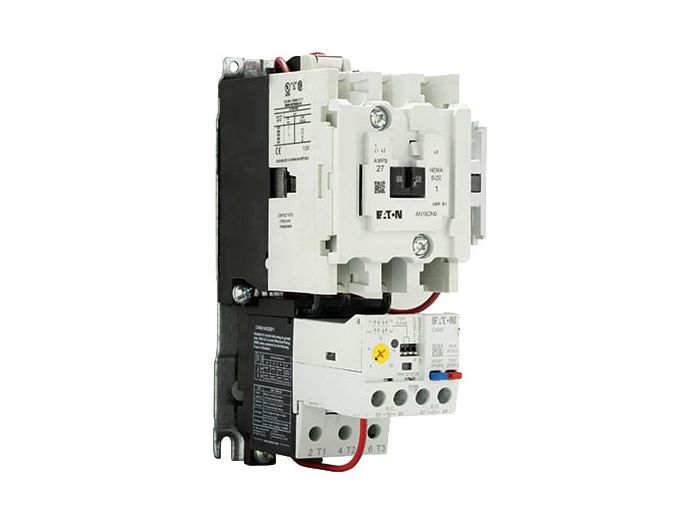

Eaton's Freedom series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN1621AAA-R63/D

Technical Specifications

• Product Name: Eaton Freedom NEMA enclosed control
• Catalog Number: ECN1621AAA-R63/D
• UPC: 786685453057
• Product Length/Depth: 30.7 in
• Product Height: 11.1 in
• Product Width: 12.2 in
• Certifications: UL Listed file E1491
• Product Type: Enclosed control
• Coil voltage: 110V/50 Hz-120V/60 Hz
• Enclosure: NEMA 1
• Type: Combination non-reversing starter circuit breaker
• Overload relay: 9-45A solid-state relay without ground fault
• Phase: Three-phase
• Size: NEMA size 2
• Manufacturer Part Number: ECN1621AAA-R63/D
• Manufacturer: Eaton
• Product Series: Freedom
• Family Series: Eaton Starters, Freedom Series
• Description: Eaton Freedom NEMA enclosed control, 110V/50 Hz-120V/60 Hz, Type 1-general Purpose, Combination with disconnect switch, NEMA 3R
• Style: Enclosed
• Industry Standard: NEMA
• Poles: 3
• Voltage: 110-120 VAC
• Nominal Voltage: 120 VAC
• Coil Type: Magnetic
• Auxiliary Contact: None
• Overload Type: Electronic
• NEMA Frame Size: 2
• Circuit Breaker: No
• Approvals: cUL, UL
• Net Weight: 40.6 lbs
• Gross Weight: 40.6 lbs
