Eaton ECN1611EAB Freedom NEMA enclosed control 208V/60 Hz NEMA size 1

Product Description

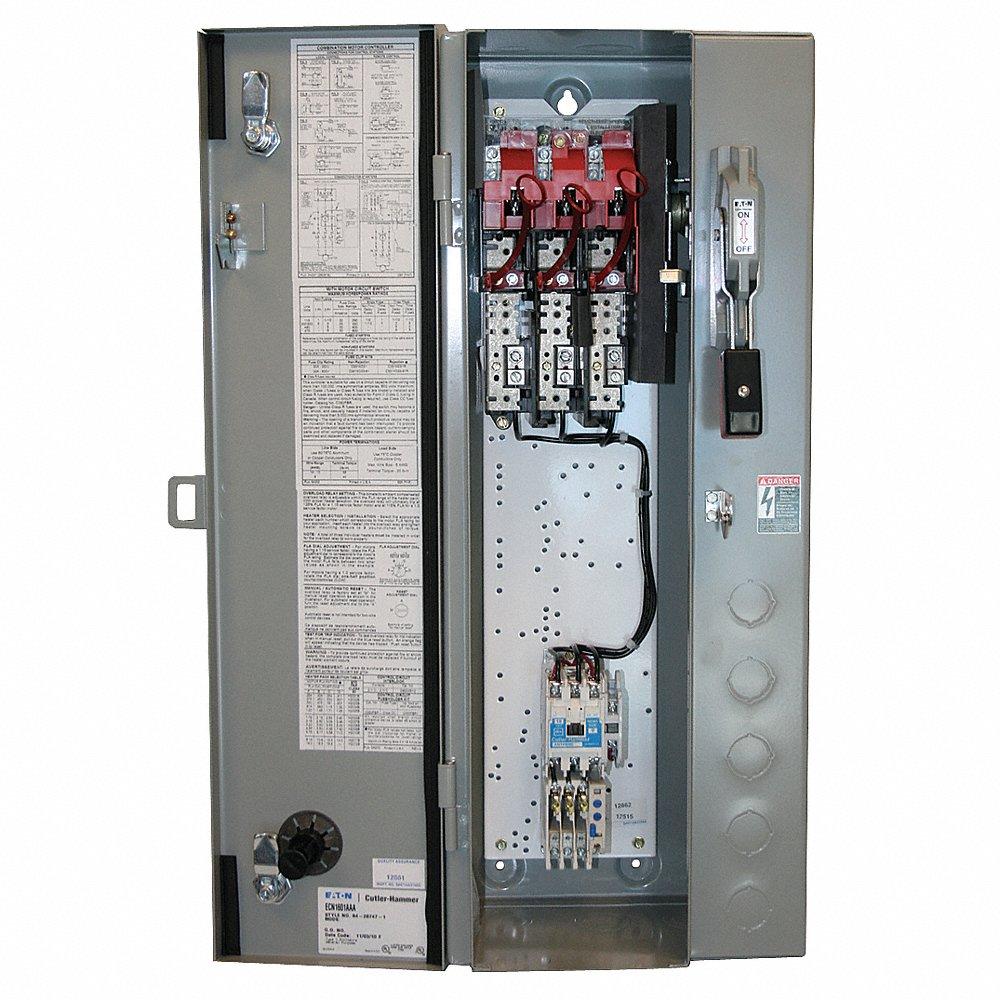

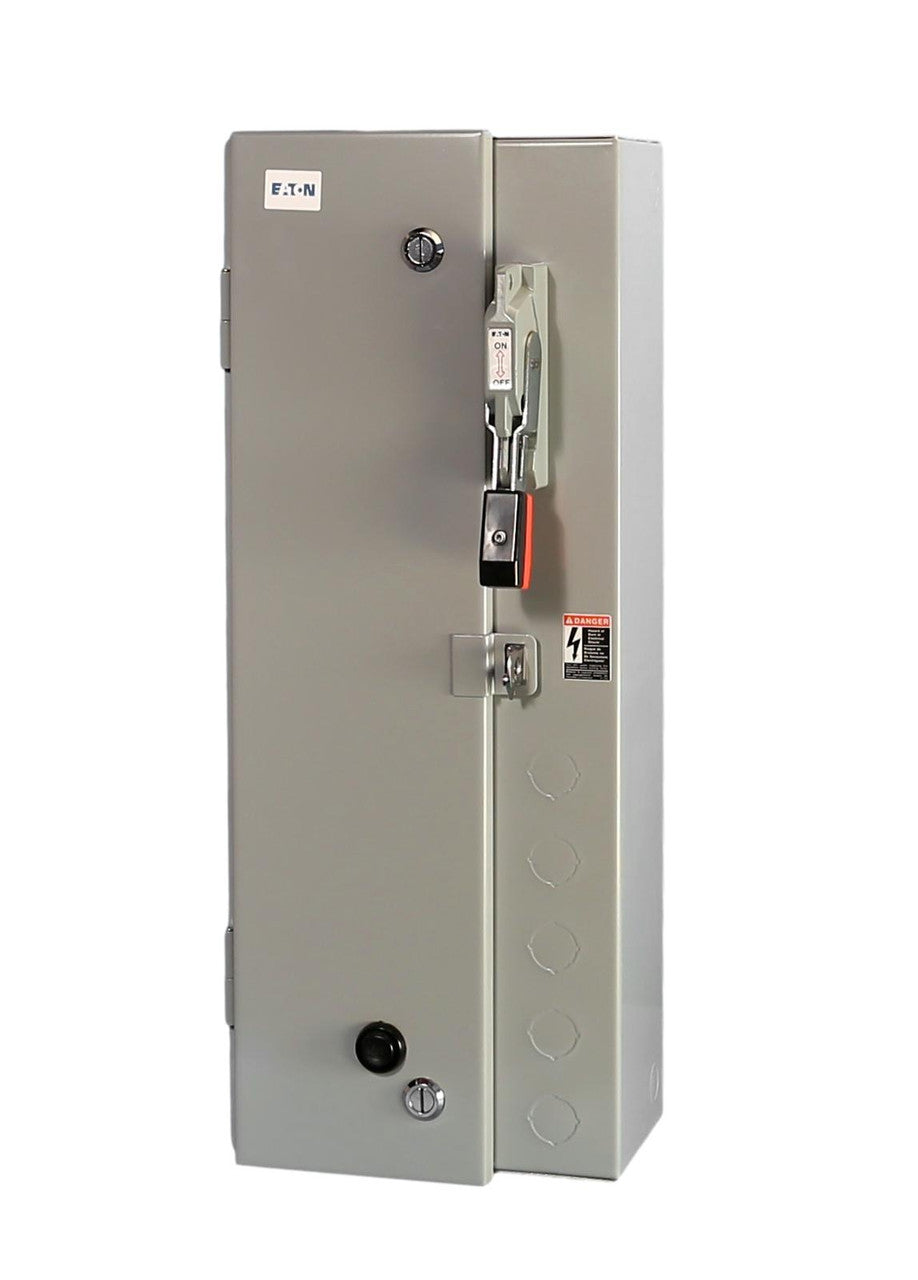

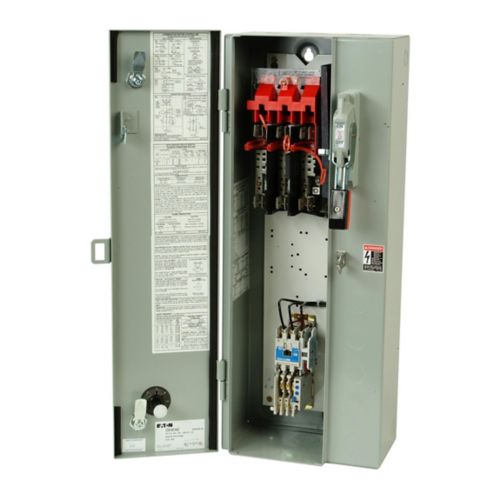

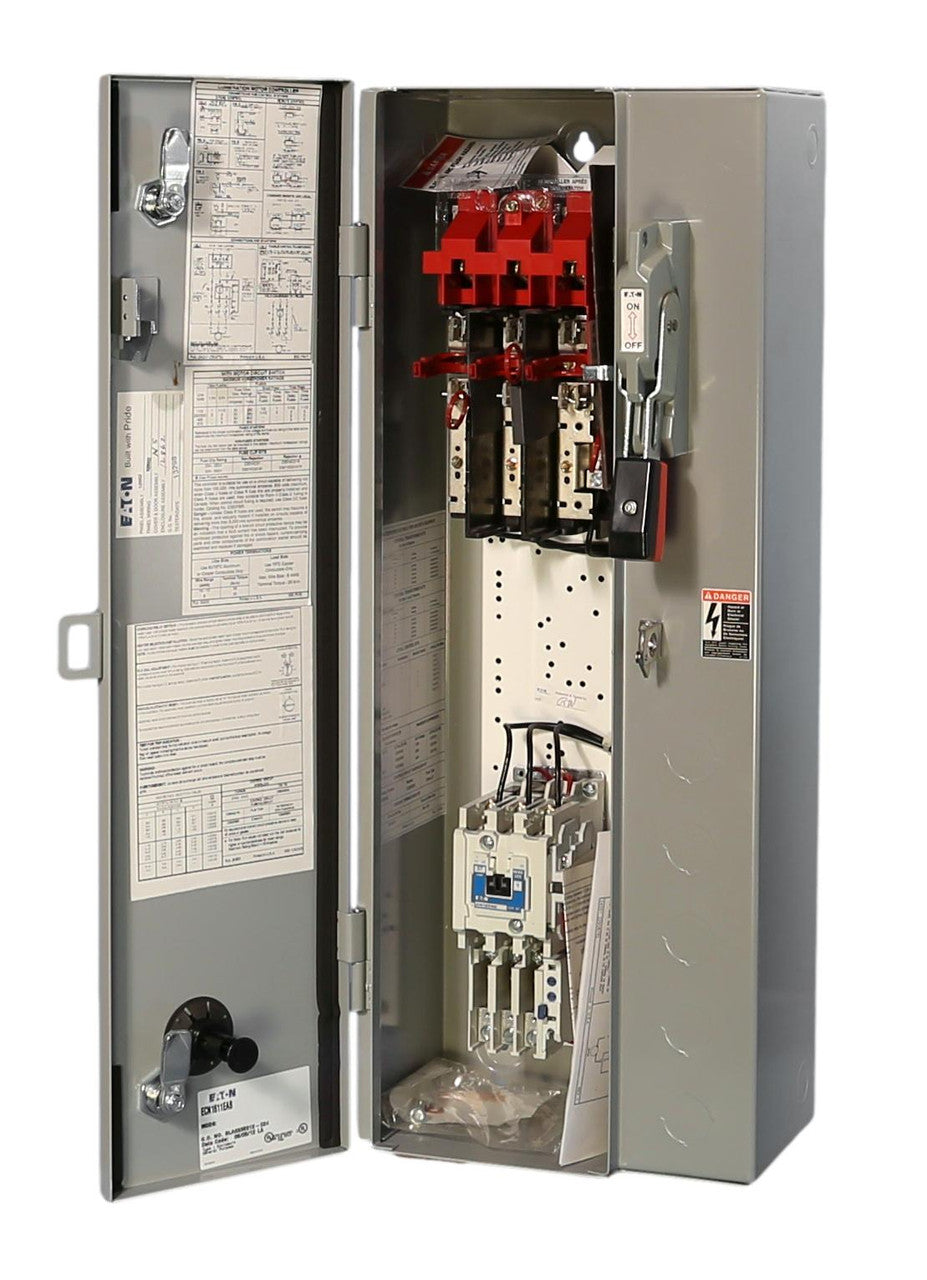

The EATON ECN1611EAB Freedom NEMA enclosed control operates at 550V/50 Hz-575V/60 Hz and features a NEMA 1 enclosure. This three-phase combination non-reversing starter includes a fusible disconnect and is rated for 7A. It features a compact, space saving design with high strength, impact and temperature-resistant insulating materials.

• Adjustable bi-metallic ambient compensated overload relays with interchangeable heater packs
• Straight through wiring, line lugs at top, load lugs at bottom
• Screw type power terminals have captive, backed out self lifting pressure plates with screws reduced wiring time

Product Highlights

EATON's Freedom series starters and contactors are ideal for general purpose applications. This combination starter offers a fusible disconnect and a NEMA 1 enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN1611EAB
• Country of Origin: US

Technical Specifications

• Product Name: Eaton Freedom NEMA enclosed control
• Catalog Number: ECN1611EAB
• UPC: 782114033098
• Product Type: Enclosed control
• Coil Voltage: 208 VAC at 60 Hz
• Enclosure Type: NEMA 1
• Type: Combination non-reversing starter circuit breaker
• Circuit breaker rating: 3A
• Phase: Three-phase
• Size: NEMA size 1
• UNSPSC: 39121521
• Application: General Purpose Applications
• Overload Relay: Ambient Compensated Bimetal
• Voltage Rating: 208
• Connection Type: Screw
• Series: Freedom
• Amperage Rating: 30
• Item: NEMA Fusible Combination Starter
• Auxiliary Contact Form: 1NO
• Auxiliary Contact Module Capacity: 4
• Control Transformer: Yes
• Electrical Operating Durability: 100000
• Frequency: 60 Hz
• Horsepower @ Single Phase: Not Rated
• Horsepower @ Single Phase - 120v Ac: Not Rated
• Horsepower @ Single Phase - 240v Ac: Not Rated
• Horsepower @ Three Phase - 208v Ac: 7 1/2 hp
• Horsepower @ Three Phase - 600v Ac: 10 hp
• Hp @ 3 Phase - 240v: 7 1/2 hp
• Hp @ 3 Phase - 480v: 10 hp
• Includes Auxiliary Contacts: Yes
• Includes Control Transformer: Yes
• Includes Pilot Light: No
• Ip Rating: IP20
• Max Current (ac): 27A
• Max. Overload Relay Amps Setting: 45A
• Maximum Voltage Rating: 600V AC
• Minimum Overload Relay Current Setting: 9A
• Mounting Postion: Horizontal, Vertical
• Mounting Style: Through Panel
• Nema Enclosure Rating: 1
• Nema Size: 1
• No. Of Auxillary Contacts: 1
• No. Of Terminals: 3
• Nominal Coil (secondary) Voltage: 120V AC
• Nominal Control (primary) Voltage: 208V AC
• Number Of Poles: 3
• Operator: No
• Operator Type: No Operator
• Overload Protection Type: Electronic
• Resistance Properties: Impact Resistant, Tamper Resistant
• Reversing Capability: Non-reversing
• Short Circuit Protection: Fusible Disconnect
• Starter Style: NEMA
• Terminal Connection Type: Screw Terminals
• Thermal Unit Code: Not Applicable
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Trip Class: Class 10, Class 20, Class 30
• Ul Fuse Class: Class R
• Wire Termination Type: Screw
