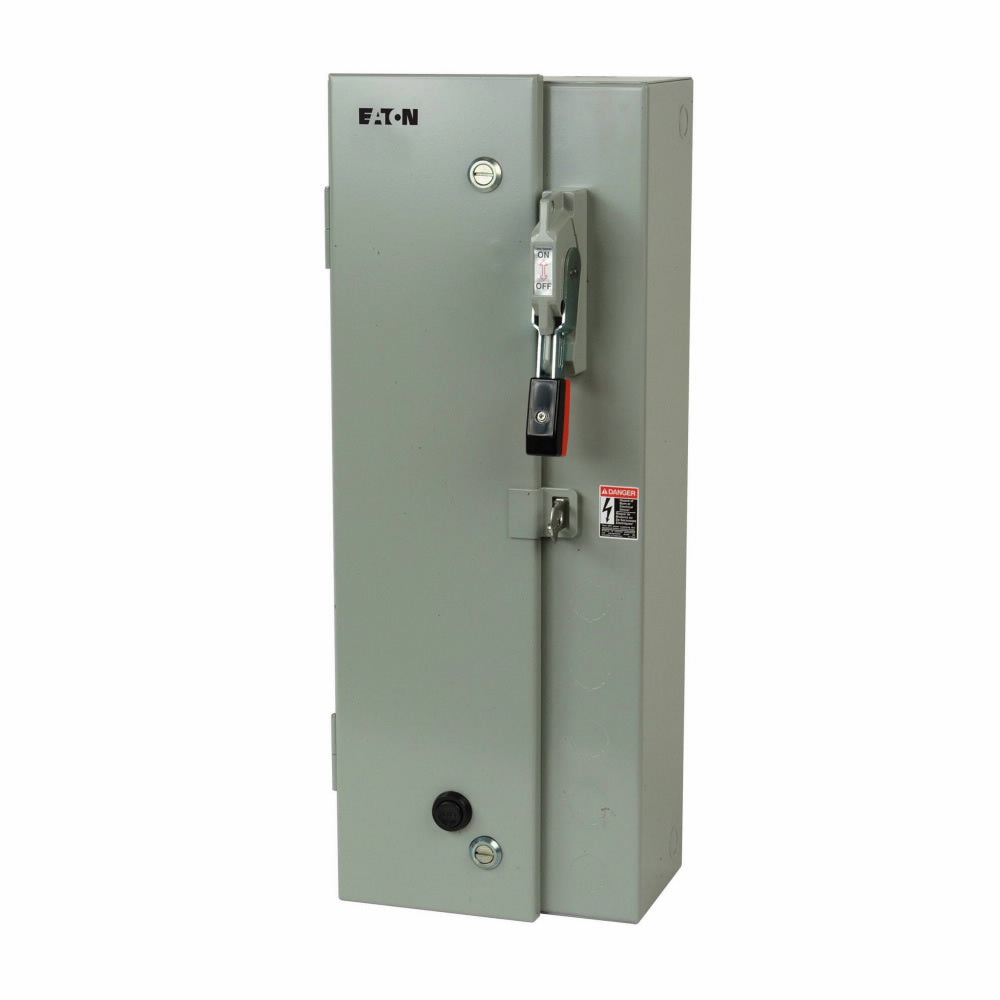

EATON ECN1611AAC STARTER COMBINATION 3 NEMA 1 600VAC 30A

Product Description

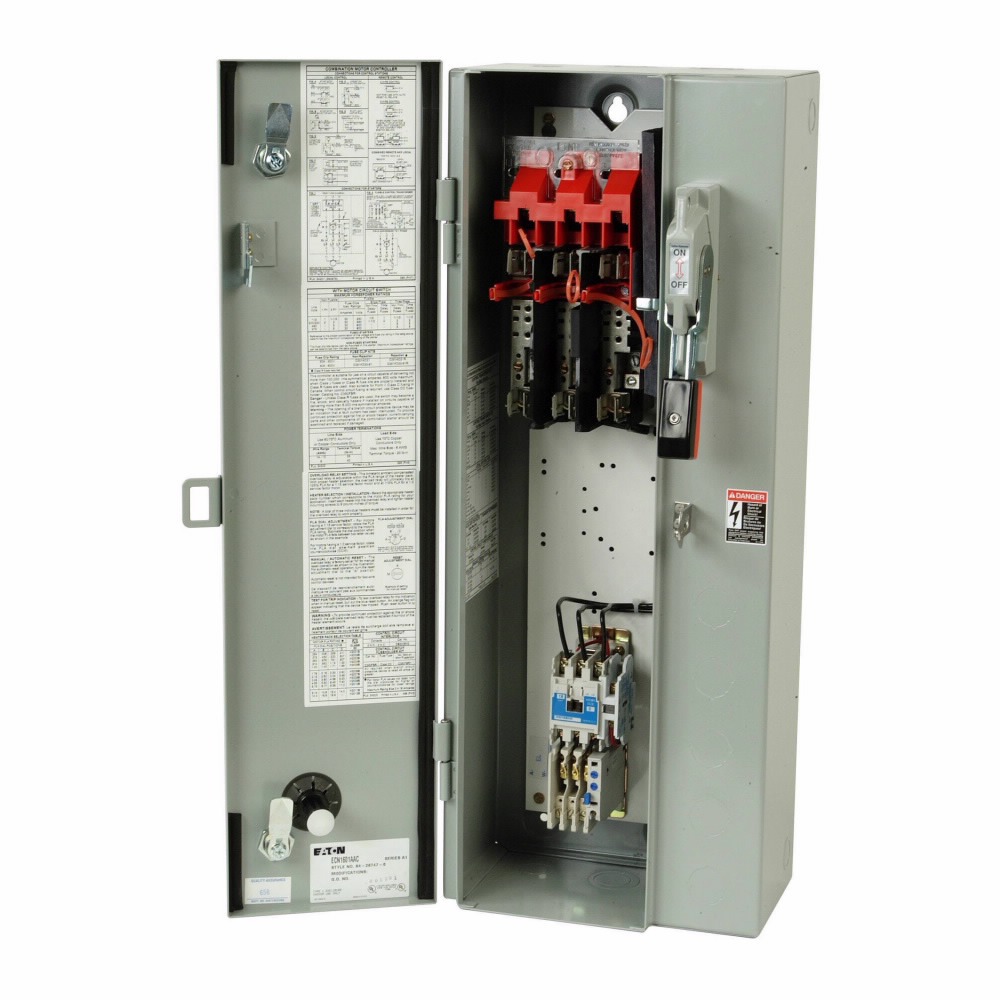

The EATON ECN1611AAC is a combination starter designed for industrial motor control applications. This full voltage non-reversing starter operates at six hundred volts AC and has a thirty amp rating. It features a three-pole configuration and is suitable for use in environments where a NEMA 1 enclosure is required.

• Rated for 600VAC with a performance capacity of 30A

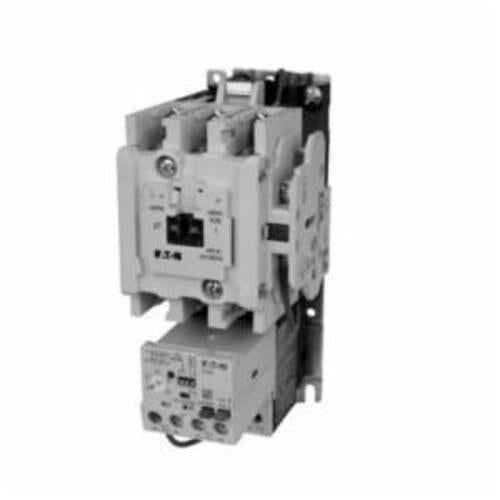

• Includes ambient compensated bimetal overload relay
• Designed for easy installation with screw terminals

Product Highlights

The combination starter is built to withstand demanding conditions. It provides reliable motor control with integrated overload protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: ECN1611AAC

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Coil Voltage: 110 VAC at 50 Hz/120 VAC at 60 Hz
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Dimensions: 30.7 in L x 12.2 in W x 11 in H
• Connection Type: Screw
• Overload Relay: Ambient Compensated Bimetal
