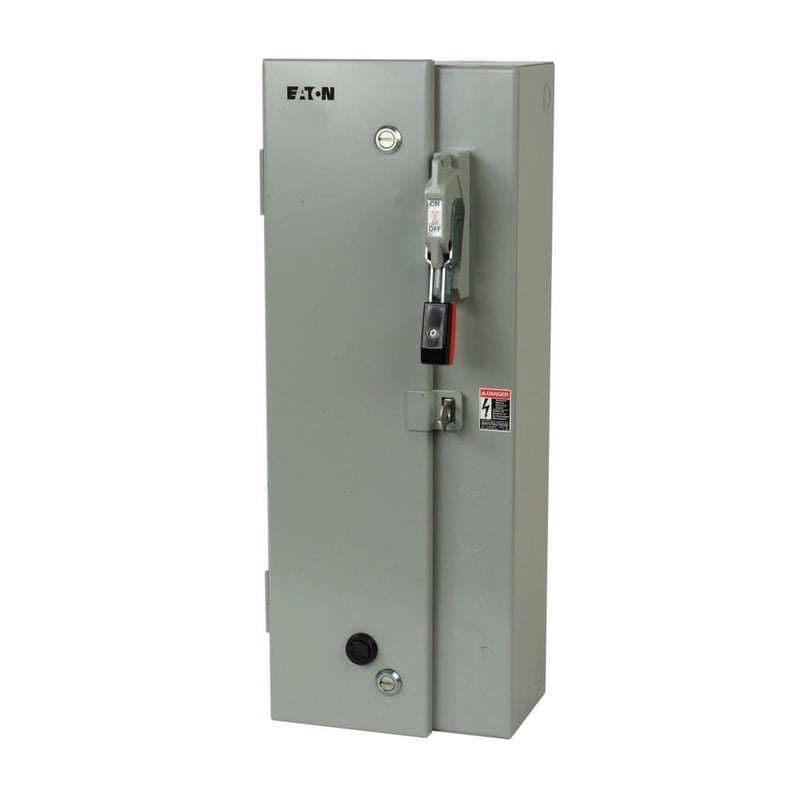

Eaton ECN1611AAC-R63/C Combination Fused Motor Starter NEMA 1 FVNR Size 1 120 Volt Coil

Product Description

The Eaton ECN1611AAC-R63/C is a combination fused motor starter designed for three-phase applications. This unit operates on a voltage range of 110V/50 Hz to 120V/60 Hz and is fitted with a NEMA 1 enclosure. It can handle up to 7 Amps, making it suitable for various industrial and commercial applications.

• Available in NEMA size 1
• Fitted with an adjustable bimetallic overload relay
• Designed for easy installation with accessible terminal connections

Product Highlights

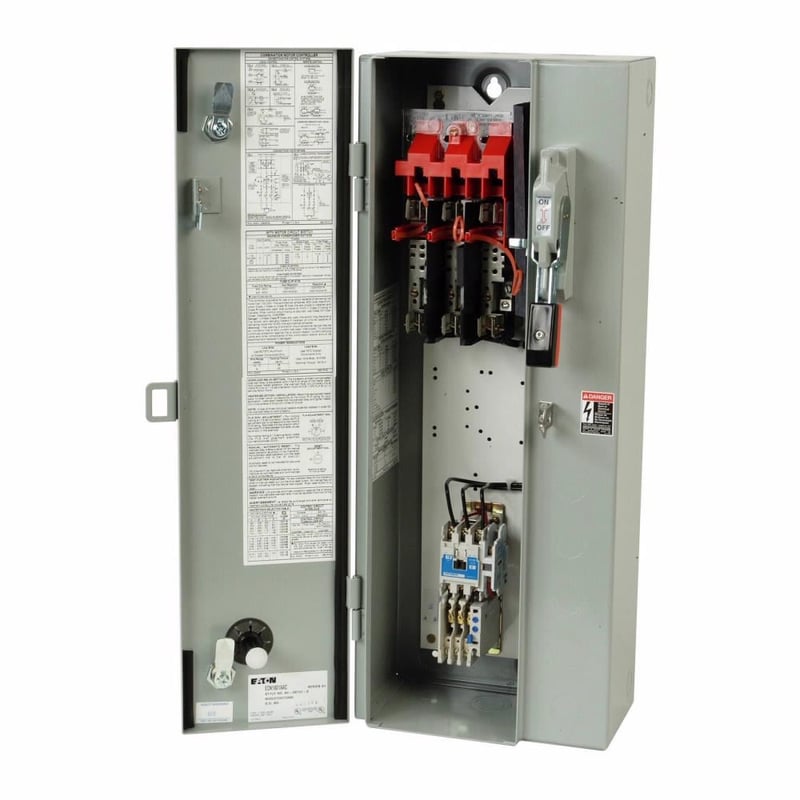

This motor starter offers simplified wiring and maintenance, providing easy access to terminals for installation. The compact design supports space efficiency in control panels.

Product Information

Standard Information

• Brand: Eaton
• MPN: ECN1611AAC-R63/C

Technical Specifications

• Voltage Rating: 120V
• Amperage Rating: 7 A
• Coil Voltage: 110V/50 Hz-120V/60 Hz
• Size: NEMA size 1
• Product Type: Enclosed control
• Certifications: UL Listed file E1491, Contact Manufacturer
