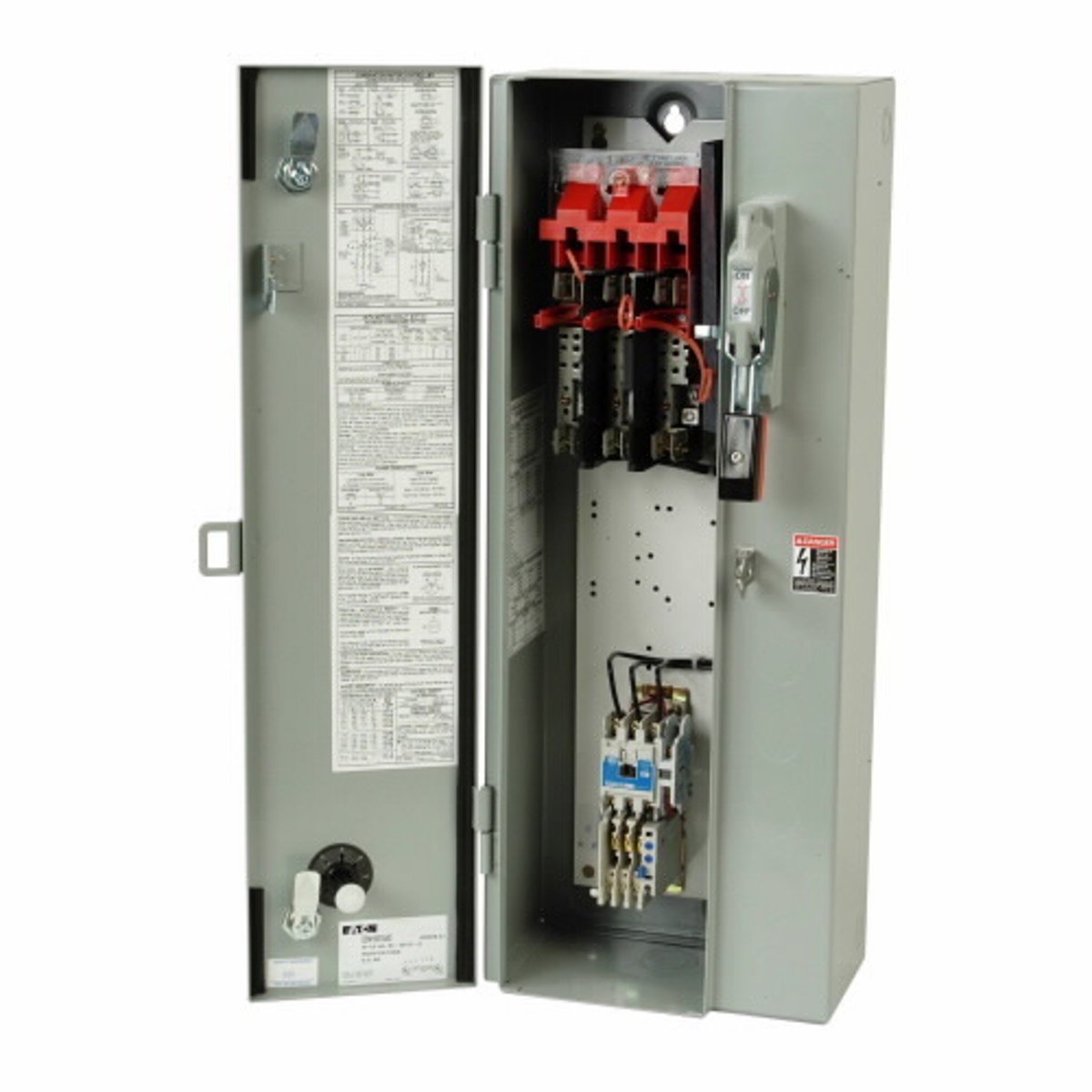

EATON ECN1601AAC STARTER COMBINATION 600VAC 30A

Product Description

The EATON ECN1601AAC is a starter combination designed for 600VAC applications with a 30A rating. This non-reversing combination starter operates on a coil voltage of 110VAC at 50Hz or 120VAC at 60Hz. The NEMA 1 enclosure provides adequate protection in less harsh environments.

• 3-phase operation with screw connection
• Includes ambient compensated bimetal overload relay
• Compact design for space saving installation

Product Highlights

This starter is suitable for industrial facilities and factories. It is designed to enhance operational efficiency while providing necessary circuit protection.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: ECN1601AAC

Technical Specifications

• Voltage Rating: 600VAC
• Amperage Rating: 30A
• Coil Voltage: 110VAC at 50Hz/120VAC at 60Hz
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Dimensions: 30.6 inches L x 12.2 inches W x 11.1 inches H
• Weight: 38.4 lb
• Auxiliary Contact Rating: 1NO
• Overload Relay: Ambient Compenstated Bimetal
• Phase: 3 ph
• Series: Freedom
