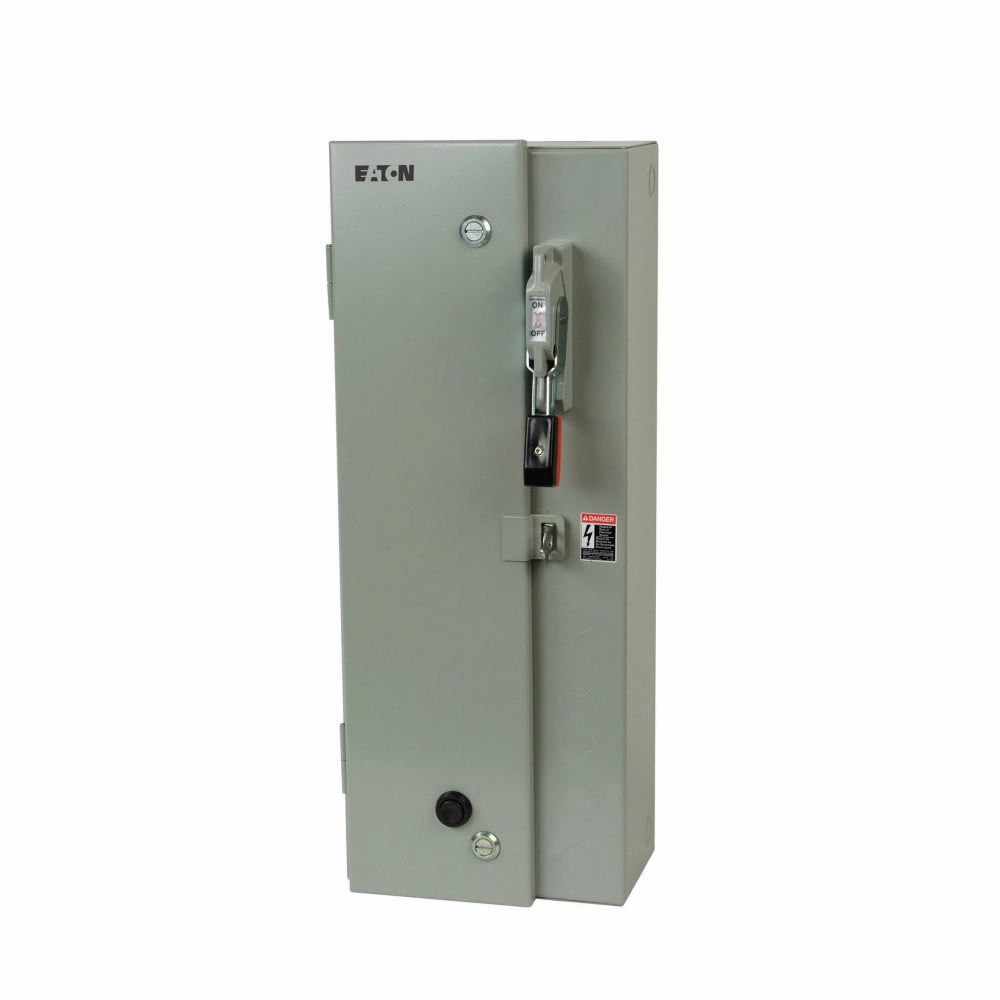

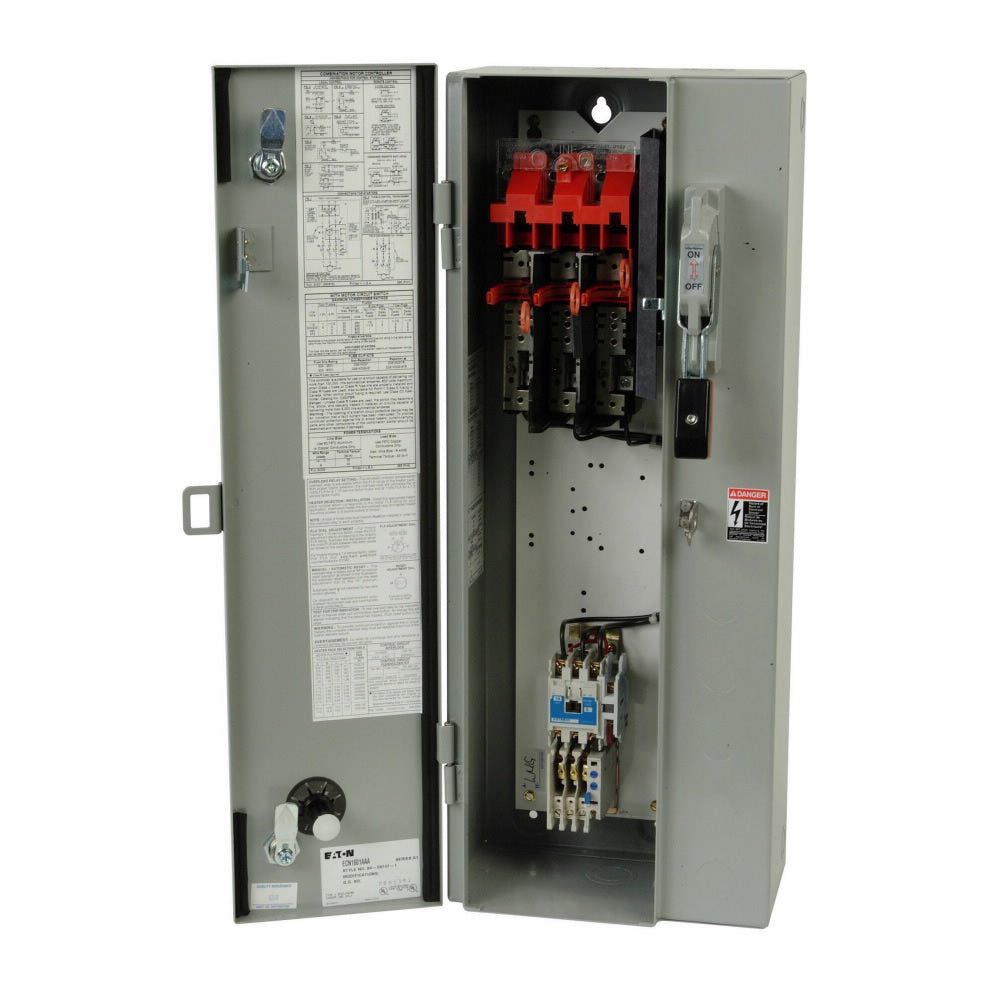

EATON ECN1601AAB STARTER COMBINATION 3 NEMA 1 600VAC 30A

Product Description

The EATON ECN1601AAB is a Freedom series non-reversing combination starter designed for industrial control. This starter operates at 600 VAC and handles up to 30 A. It features a 110 VAC coil that works at both 50 Hz and 60 Hz, making it versatile for various applications.

• Non-reversing design, suitable for controlling various motors.
• Equipped with ambient compensated bi-metal overload relay.
• Includes one normally open auxiliary contact for additional control options.

Product Highlights

This combination starter is compact and designed for ease of use in industrial settings, featuring high-strength materials that ensure reliability.

Product Information

Standard Information

• Manufacturer: EATON
• Brand: EATON

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Coil Voltage: 110 VAC at 50 Hz / 120 VAC at 60 Hz
• Enclosure Type: NEMA 1
• Overload Relay: Ambient Compensated Bimetal
• Number of Poles: 3
• Dimensions: 31 in L x 12 in W x 11 in H
