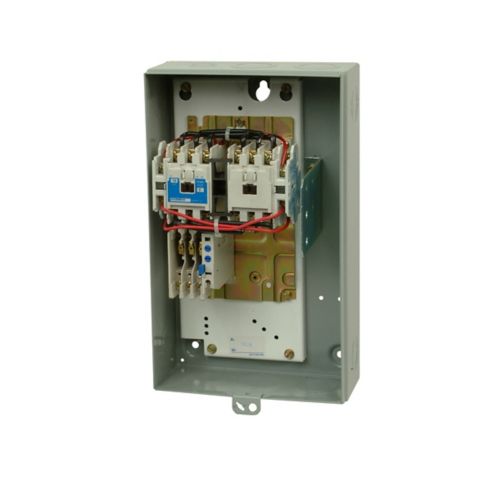

Eaton ECN0712CAA Freedom NEMA motor control starter with control power transformer

Product Description

The Eaton ECN0712CAA Freedom NEMA motor control starter is a non-combination non-reversing starter with a control power transformer. Designed with a three-phase system, it operates at 460V/60 Hz-440V/50 Hz primary and 120/60-110/50 secondary control power transformer. It features a compact, space-saving design with high strength, impact, and temperature-resistant insulating materials and a NEMA 3R enclosure.

• Includes control power transformer
• Features a non-combination non-reversing starter
• NEMA 3R enclosure

Product Highlights

The EATON Freedom series starters feature a compact design using state-of-the-art technology and durable materials.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0712CAA

Technical Specifications

• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: ECN0712CAA
• UPC: 782114068786
• Product Length/Depth: 6.7 in
• Product Height: 14.39 in
• Product Width: 12.01 in
• Certifications: UL Listed file E1491 Contact Manufacturer
• Product Type: Motor control starter
• Enclosure: NEMA 3R
• Type: Non-combination non-reversing starter
• Accessories: With control power transformer
• Size: NEMA size 1
• Phase: Three-phase
• System voltage: 460V/60 Hz-440V/50 Hz primary, 120/60-110/50 secondary control power transformer
• Overload relay: 4-20A solid-state relay without ground fault
• UNSPSC: 39121521
• Coil Voltage: 440 VAC at 50 Hz, 480 VAC at 60 Hz Primary/110 VAC at 50 Hz, 120 VAC at 60 Hz Secondary
• Enclosure Type: NEMA 3R
• Series: Freedom
