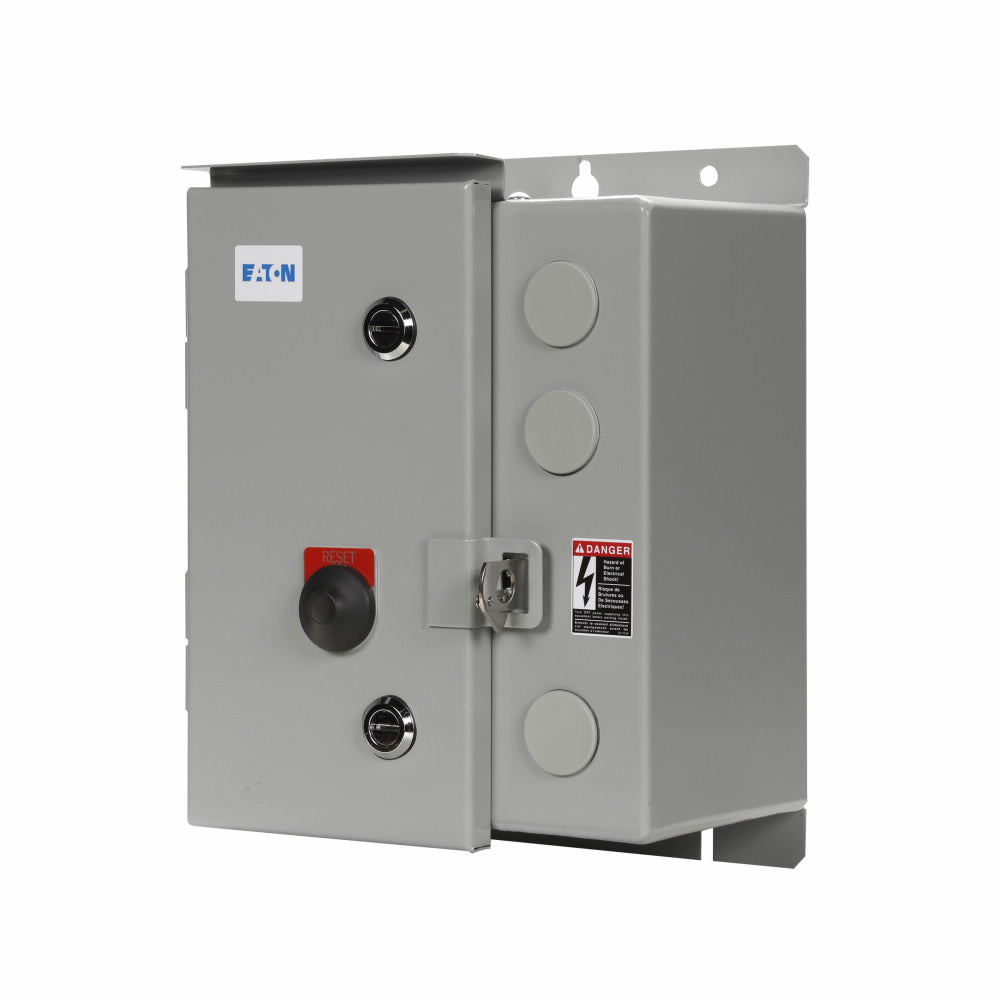

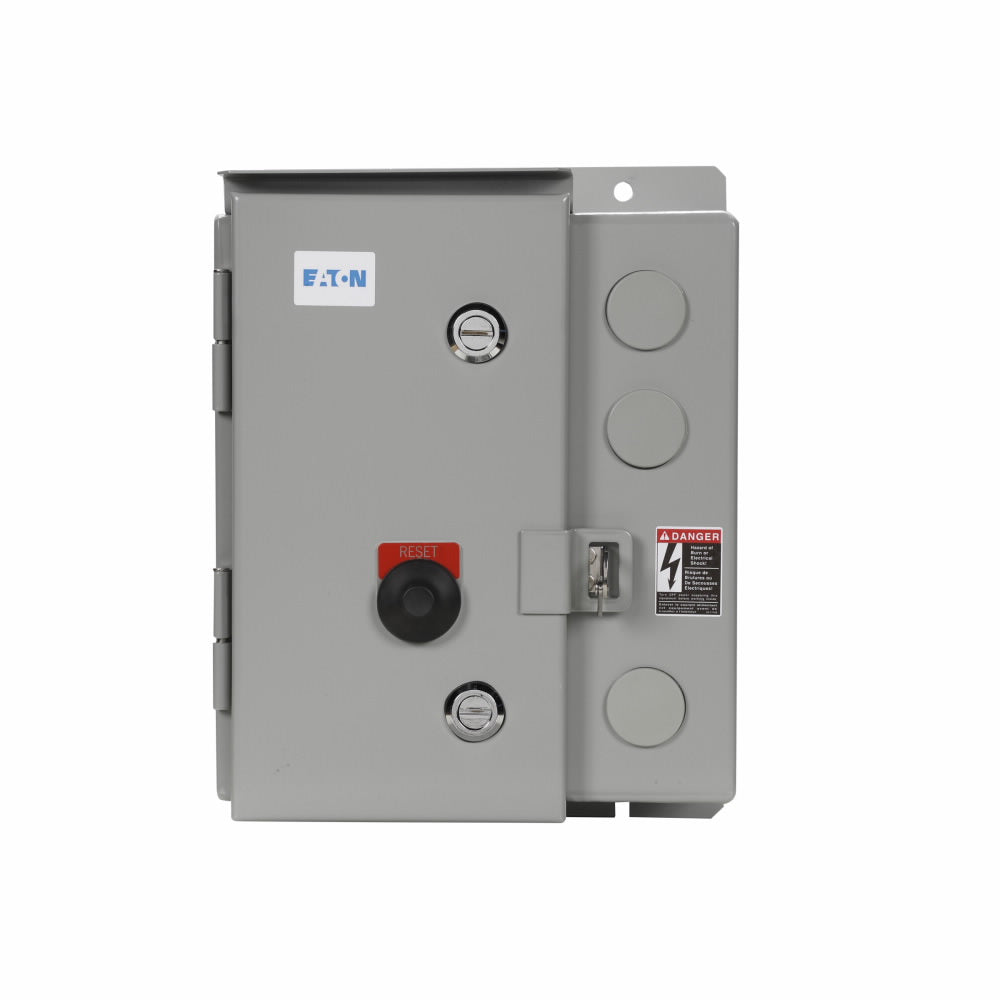

EATON ECN0531AAA-R63/E Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter 110/120 VAC V Coil 3 Poles NEMA 1 Enclosure

Product Description

The EATON ECN0531AAA-R63/E is a Freedom series NEMA starter designed for controlling electric motors. It features full voltage non-reversing, with a coil voltage of 110/120 VAC. The starter is suitable for up to three poles and operates within a NEMA 1 enclosure. This product is ideal for various industrial applications, offering high performance and reliability.

• Suitable for 10 to 50 hp motors
• Auto/manual reset capabilities
• Compact and space-saving design

Product Highlights

This NEMA starter is built for durability and ease of use. Its solid-state overload relay operates without ground faults, making it efficient for your industrial control needs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0531AAA-R63/E

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 90 A
• Coil Voltage: 110/120 VAC
• Frequency Rating: 50/60 Hz
• Full Load Current: 20 to 100 A
• Dimensions: 26.5 inches L x 14.2 inches W x 11 inches H
• Number of Poles: 3
• Reset Type: Auto/Manual
• Overload Relay: Solid-State without Ground Fault
