Eaton ECN0531AAA NEMA Starter 110/120 VAC Coil NEMA 1

Product Description

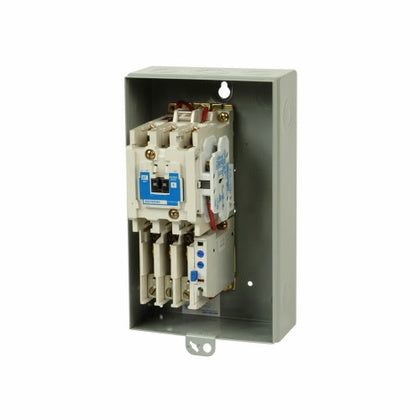

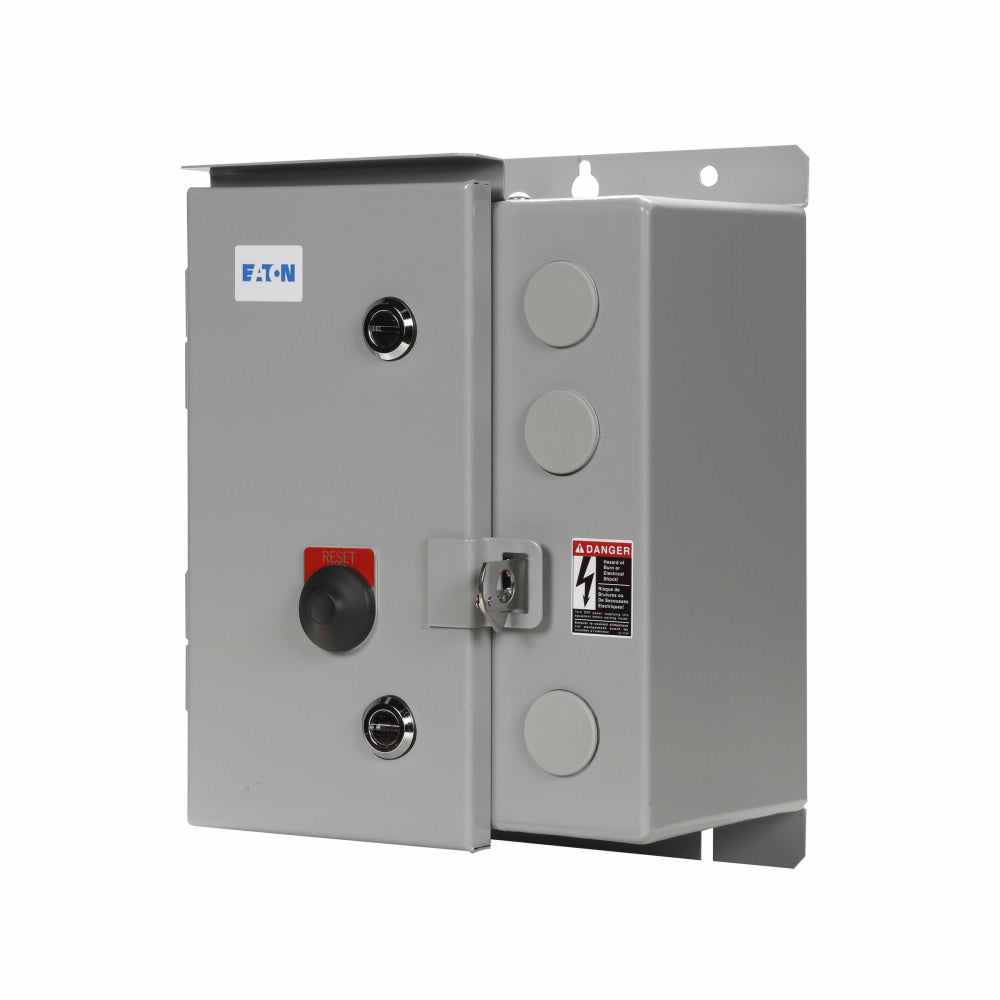

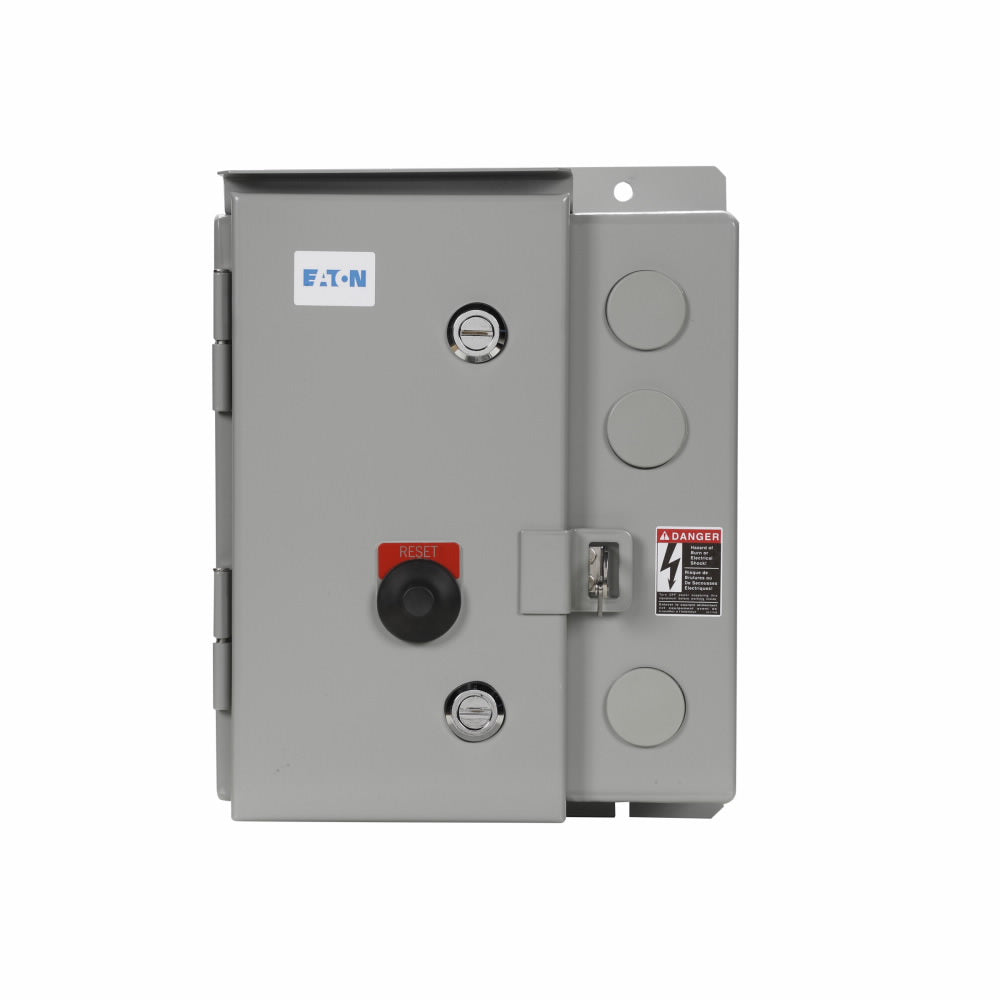

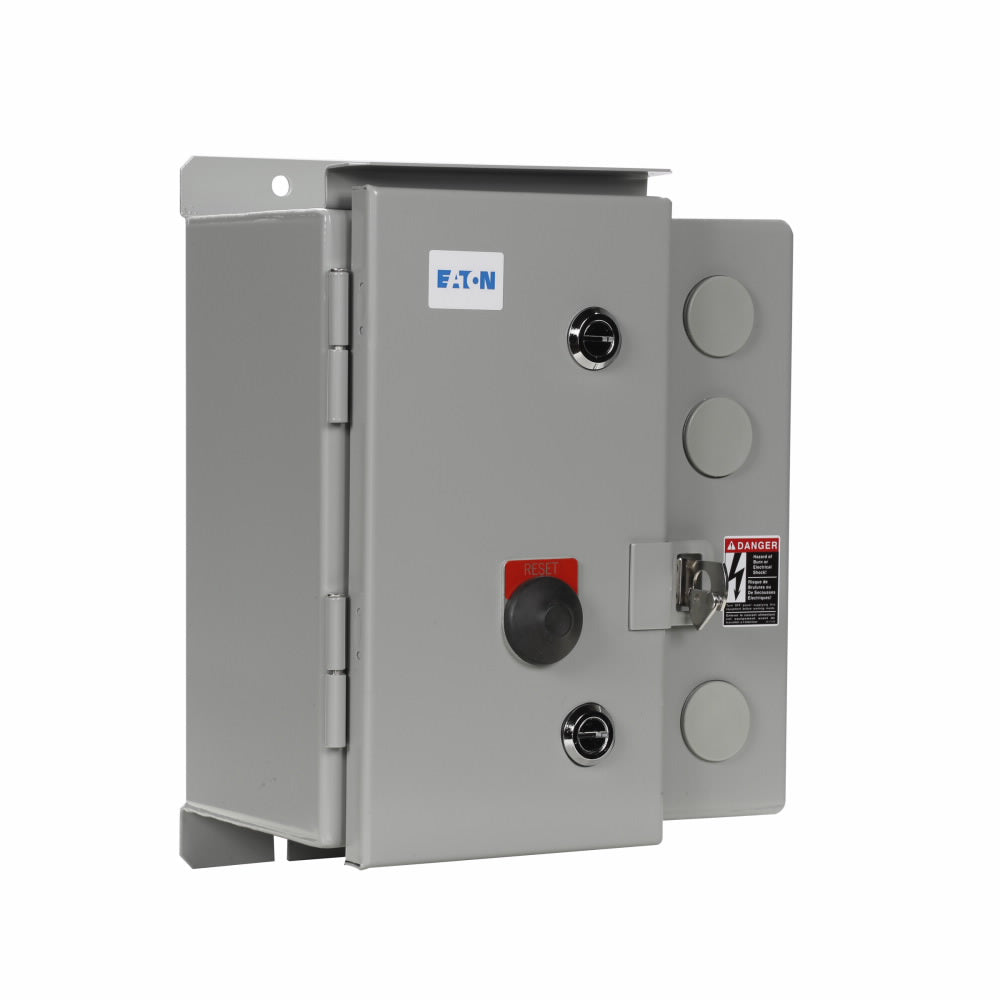

The EATON ECN0531AAA Freedom series starters and contactors feature a compact, space saving design with high strength, impact and temperature-resistant insulating materials. This full voltage non-reversing non-combination starter operates at 50/60 Hz with a 110/120 VAC coil and a thermal overload relay. It has a NEMA 1 enclosure.

• Line enclosed control
• Compact, space saving design
• High strength, impact and temperature-resistant insulating materials

Product Highlights

EATON ECN0531AAA is a reliable NEMA starter with a compact design and durable construction, suitable for various motor control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0531AAA
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 90 A
• Frequency Rating: 50/60 Hz
• Overload Relay: Solid-State without Ground Fault
• Phase: 1 ph
• Series: Freedom
• Type: Full Voltage Non-Reversing Non-Combination
• Coil Voltage: 110/120 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: ECN0531AAA
• UPC: 782114016206
• Product Length/Depth: 26.5 in
• Product Height: 11 in
• Product Width: 14.2 in
• Product Type: Motor control starter
• Size: NEMA size 3
• Voltage Rating: 600 VAC
• Motor Power: 10 to 50 hp
• Reset Type: Auto/Manual
• Connection Type: Screw
• Full Load Current: 20 to 100 A
• Auxiliary Contact Rating: 1NO-1NC
• Volts AC Control: 120
• Poles: 3
• Mounting: Surface
• IP/NEMA Rating: NEMA 1
• Amps: 90
• Volts AC: 600
