Eaton ECN0521TAA Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter 24 VAC

Product Description

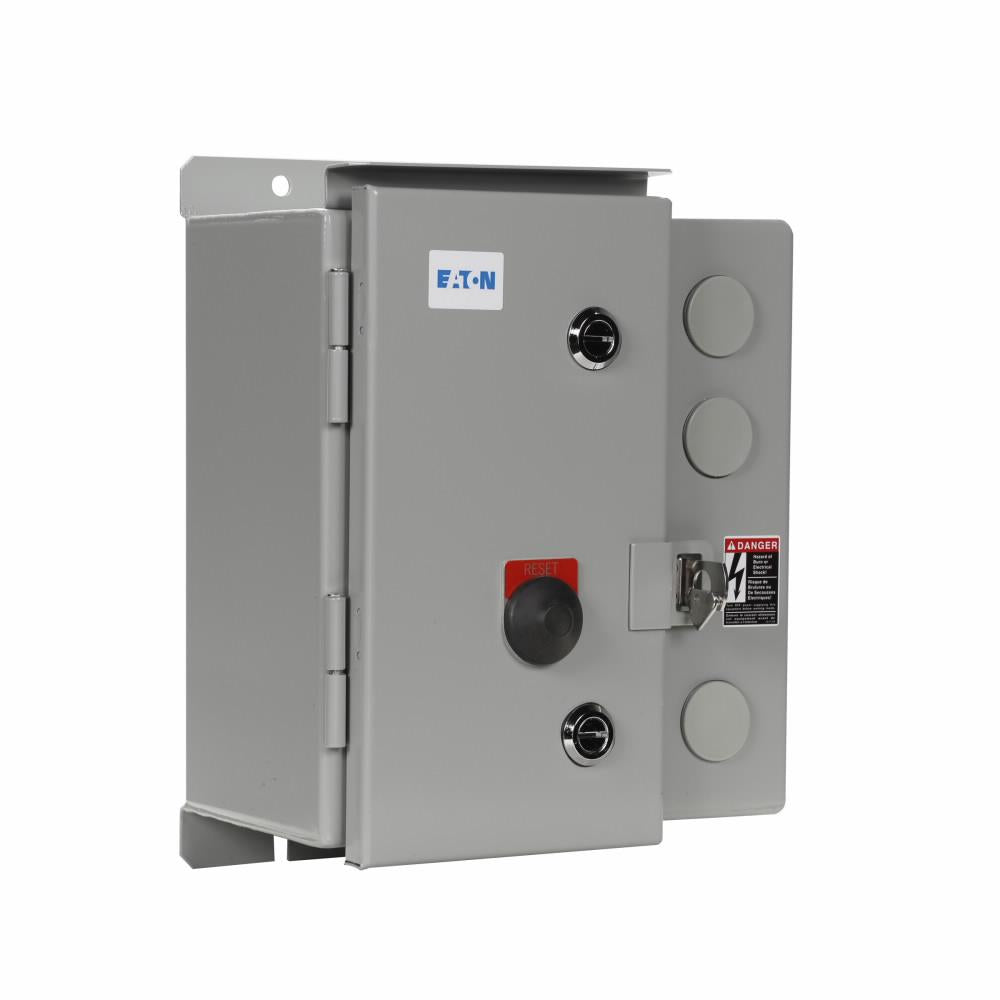

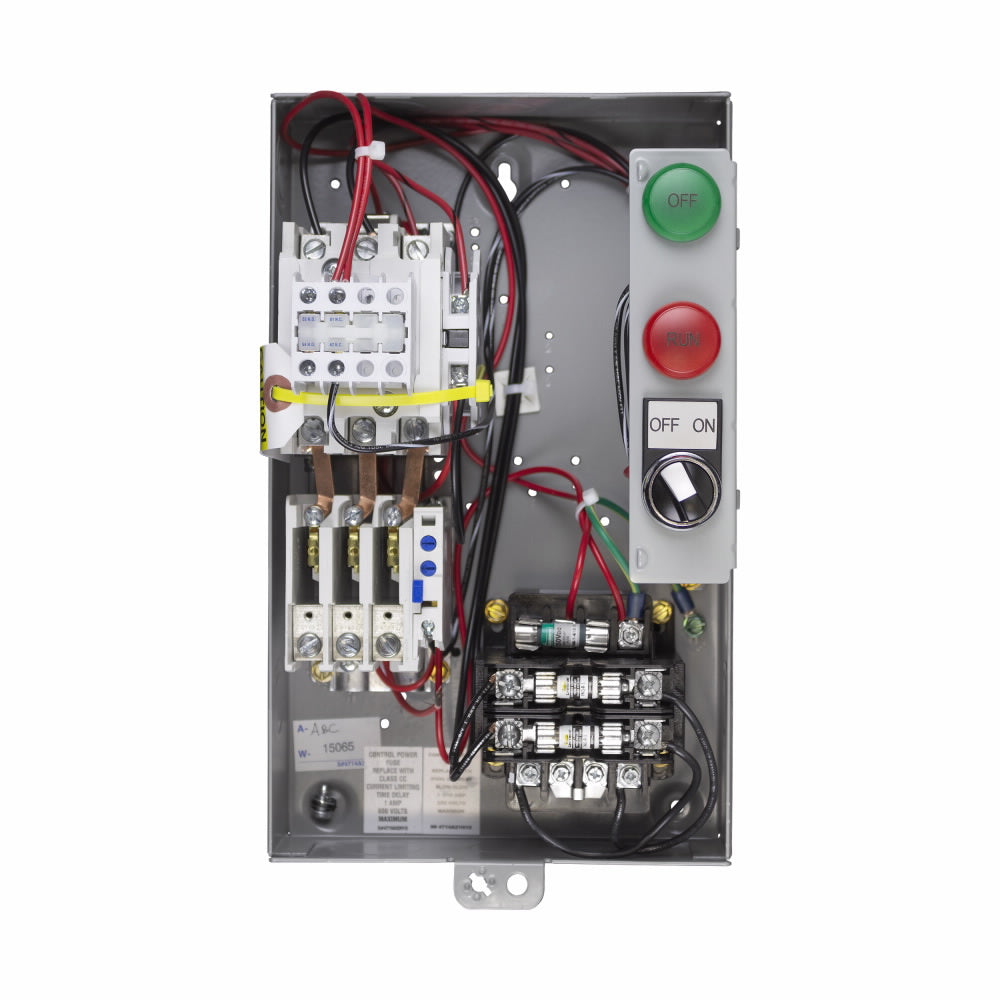

The EATON ECN0521TAA Freedom series starters and contactors feature a compact, space saving design and temperature-resistant insulating materials. This NEMA starter is a full voltage, non-reversing, non-combination type with a 24 VAC coil, operating at 60 Hz. It includes an ambient compensated bimetal overload relay and a 1NO auxiliary contact, all within a NEMA 1 enclosure.

• Adjustable bi-metallic ambient compensated overload relays with interchangeable heater packs
• Straight-through wiring, line lugs at top, load lugs at bottom
• Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time

Product Highlights

Compact design with screw-type connections and ambient compensated overload relay.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0521TAA

Technical Specifications

• Amperage Rating: 45 A
• Auxiliary Contact Rating: 1NO
• Connection Type: Screw
• Frequency Rating: 60 Hz
• Overload Relay: Ambient Compensated Bimetal
• Phase: 1 ph
• Series: Freedom
• Voltage Rating: 600 VAC
• Type: Full Voltage Non-Reversing Non-Combination
• Coil Voltage: 24 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: ECN0521TAA
• Product Type: Motor control starter
• Size: NEMA size 2
• Application: Motor Control Applications
• UNSPSC: 39121521
