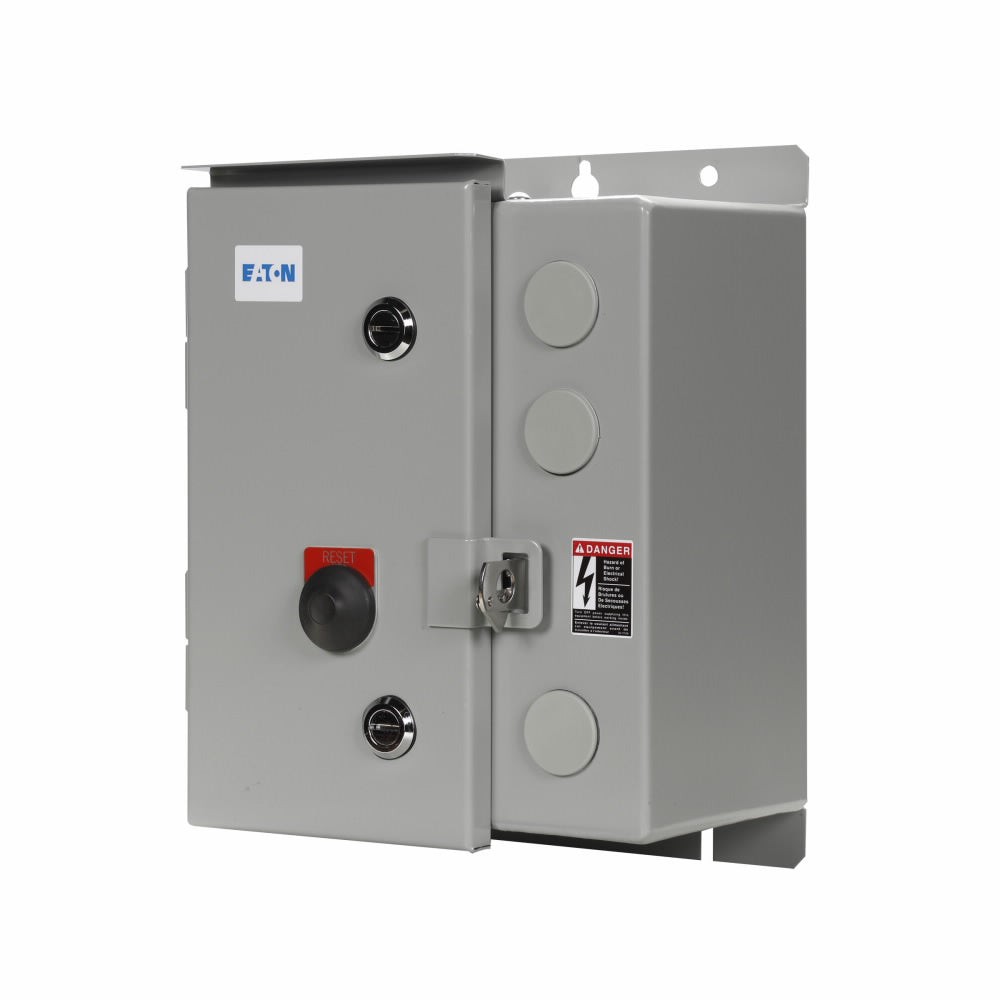

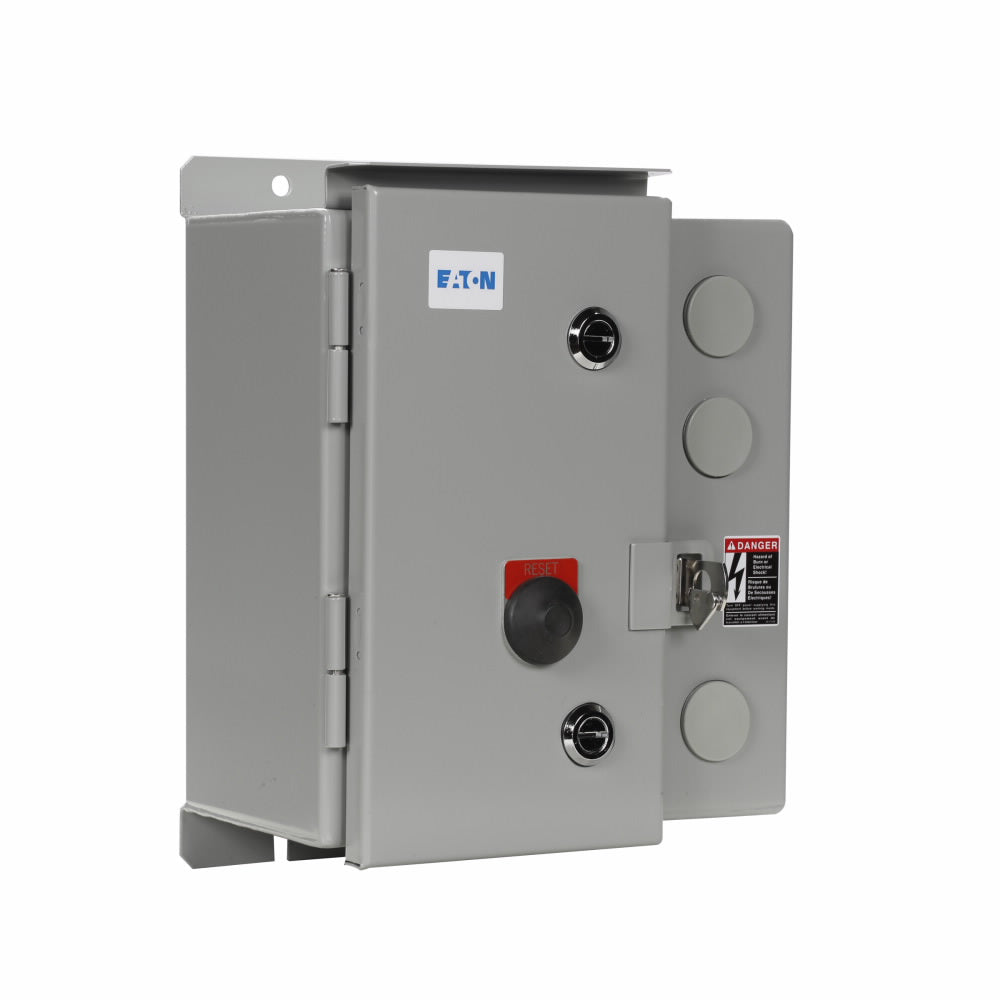

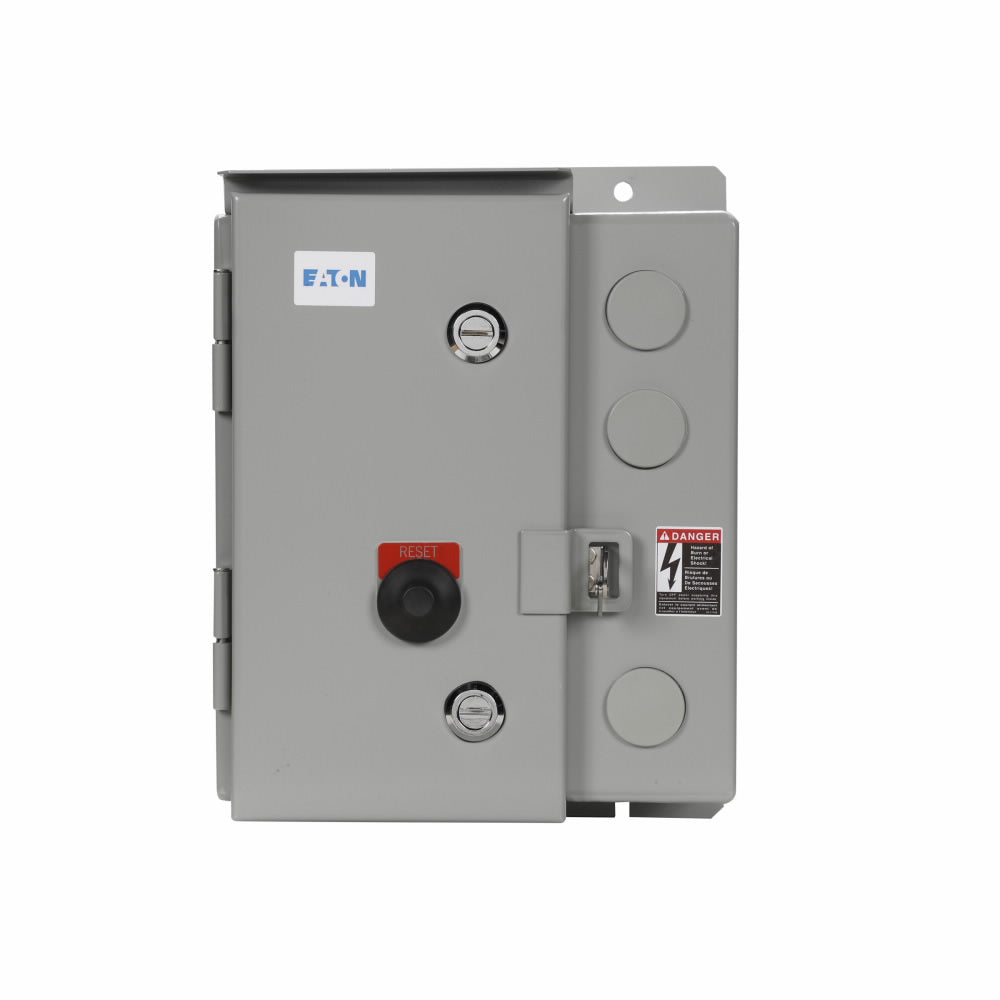

Eaton ECN0508AAA NEMA Starter 18 A

Product Description

The EATON ECN0508AAA Freedom series starters and contactors feature a compact, space saving design with high strength, impact and temperature-resistant insulating materials. This full voltage non-reversing non-combination NEMA starter operates at 600 VAC, 18 A, and 50/60 Hz. It includes an ambient compensated bimetal overload relay and a NEMA 12 enclosure.

• Adjustable bi-metallic ambient compensated overload relays with interchangeable heater packs
• Straight-through wiring, line lugs at top, load lugs at bottom
• Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time

Product Highlights

The EATON ECN0508AAA NEMA starter is ideal for motor control applications, providing robust motor protection in industrial environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: ECN0508AAA
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 18 A
• Connection Type: Screw Clamp
• Frequency Rating: 50/60 Hz
• Overload Relay: Ambient Compensated Bimetal
• Phase: 1 ph
• Series: Freedom
• Voltage Rating: 600 VAC
• Type: Full Voltage Non-Reversing Non-Combination
• Coil Voltage: 110/120 VAC
• Number of Poles: 3
• Enclosure Type: NEMA 12
• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: ECN0508AAA
• UPC: 782114015698
• Product Length/Depth: 14.5 in
• Product Height: 9.7 in
• Product Width: 11.6 in
• Product Weight: 15.65 lb
• Product Type: Motor control starter
• Size: NEMA size 0
• IP/NEMA Rating: NEMA 12
• Manufacturer: Cutler Hammer
• Brand: Cutler Hammer
• Category: Motor Control
• Item Subcategory: Motor Starter
• Voltage: 600
• Amperage: 18
• Poles: 3
