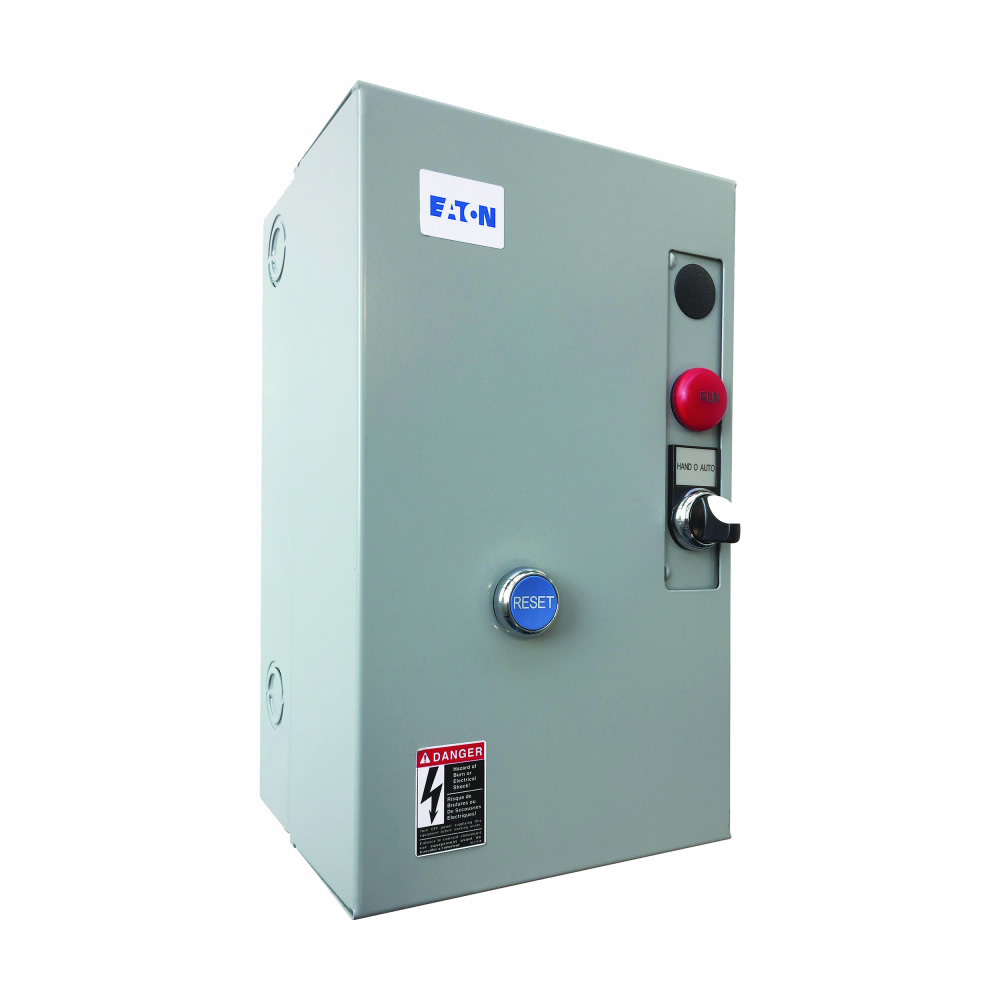

Eaton ECL03C1A6A ETN NEMA 1 CN35-ELEC HEL 30 A

Product Description

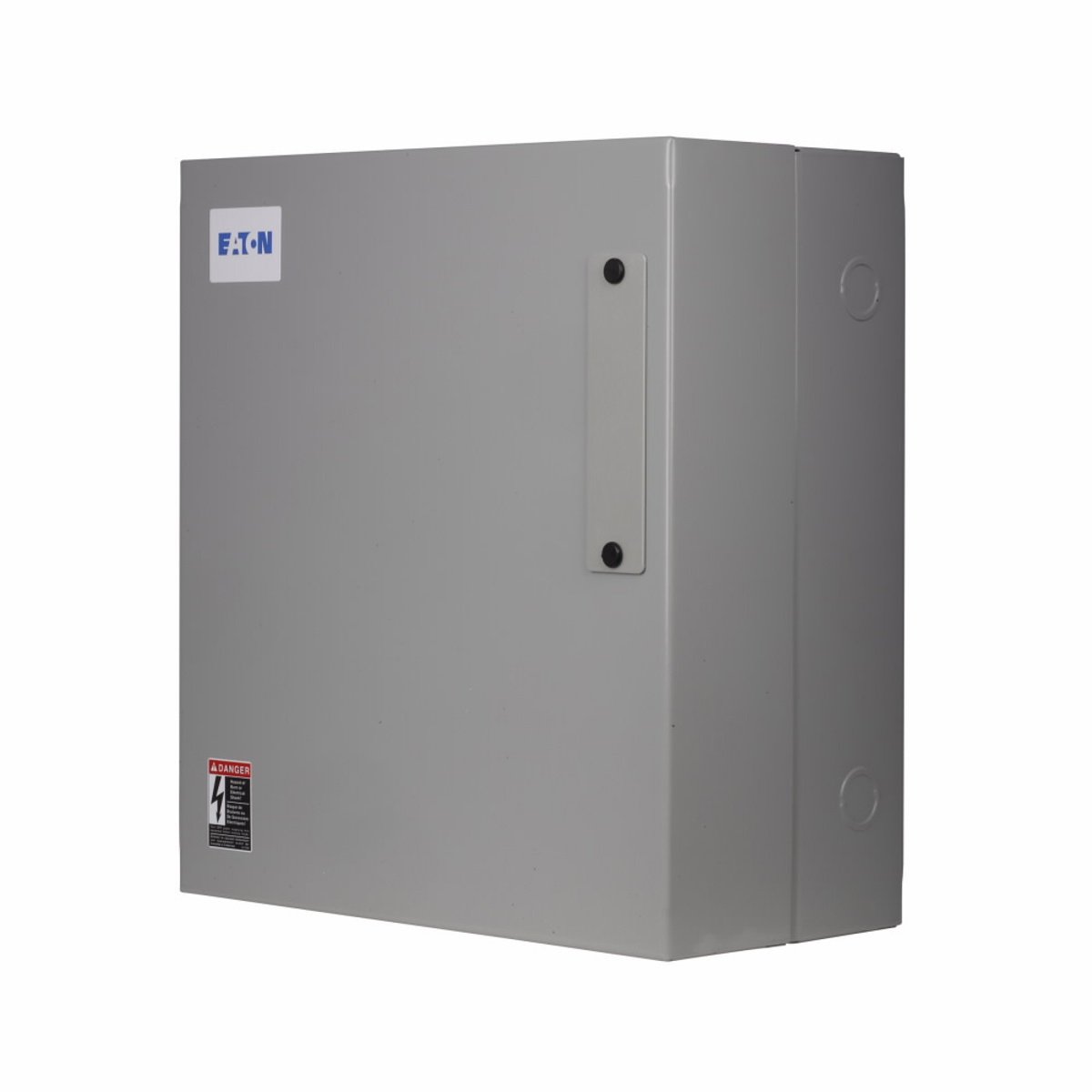

The Eaton ECL03C1A6A is an electrically held lighting contactor designed for industrial and commercial applications. It features a maximum load rating of 30 Amps and operates at both 110 V/50 Hz and 120 V/60 Hz, making it versatile for different usage environments. This contactor is equipped with a NEMA 1 rated enclosure, suitable for indoor installations where protection from foreign objects is essential.

• Handles switching of tungsten and ballast lamp loads
• Complies with cUL and UL standards
• 6 pole configuration for effective control

Product Highlights

Ideal for lighting control in industrial plants, parks, and commercial buildings. Its robust design withstands high inrush currents without contact welding.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: ECL03C1A6A

Technical Specifications

• Type: Non-combination Electrically Held
• Number of Poles: 6
• Coil Voltage: 110-120 VAC
• Contact Rating: 30 A
• Frequency: 50/60 Hz
• Dimensions: 7.62 in L x 8.375 in W x 12.6 in H
• Weight: 13 lb
• Enclosure Type: NEMA 1
• Enclosure Material: Steel
