Eaton ECC03C1ABA NEMA 1 C30CNE-ELEC H 30A 110V/50HZ 120V/60HZ

Product Description

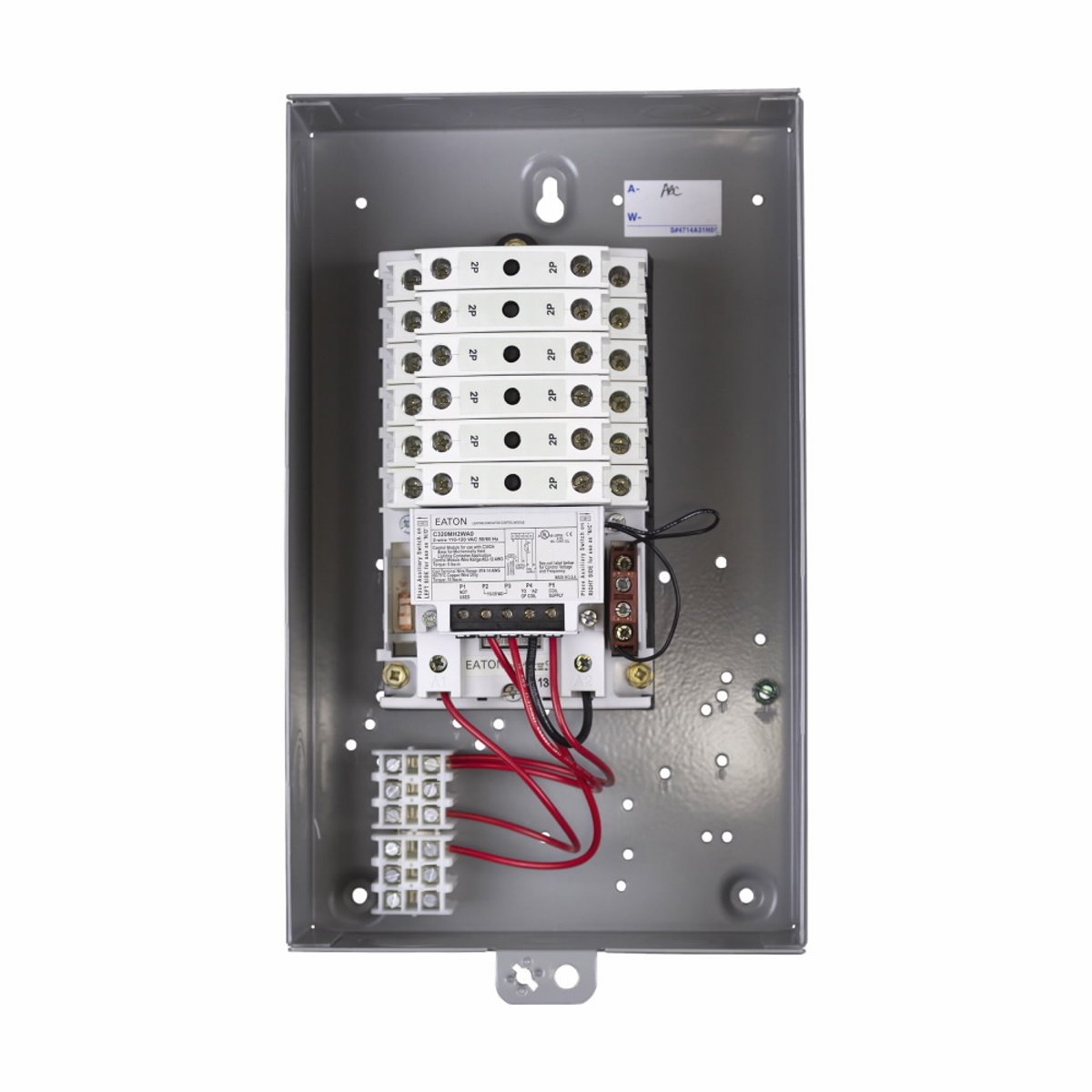

The Eaton ECC03C1ABA is a mechanically held lighting contactor designed for industrial and commercial applications. This unit operates at thirty amps and supports both 110 volts at fifty hertz and 120 volts at sixty hertz. The NEMA 1 enclosure is made of painted steel and is designed to operate safely in a variety of settings.

• Contactor design prevents switching OFF during power failure.
• Features twelve poles for versatile applications.
• Noise-free operation due to the removal of coil from the circuit.

Product Highlights

This contactor is ideal for lighting controls in commercial and institutional buildings. It can handle initial inrush currents without welding contacts together. The control module ensures that power spikes do not trigger the contactor.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: ECC03C1ABA

Technical Specifications

• Enclosure Type: NEMA 1
• Weight: 13 lbs
• Length: 7.62 inches
• Width: 6 inches
• Height: 12.6 inches
• Amperage: 30 Amps
• Coil Voltage: 110-120 VAC
• Contact Rating: 30 A
• Number of Poles: 12 Pole
