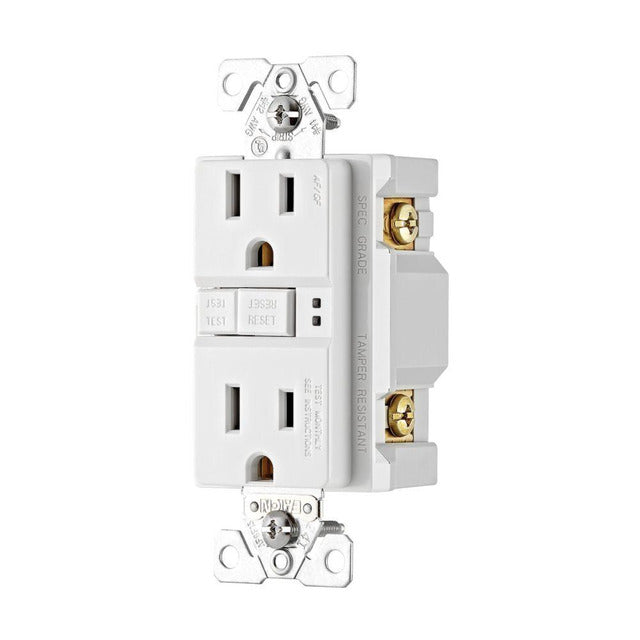

Eaton eaton-trafgf15w Afci Gfci Outlet 15 Amp 120V

Product Description

The EATON eaton-trafgf15w is a combination AFCI/GFCI duplex receptacle rated at 15 amps and 120 volts. It provides dual-mode protection by combining arc fault circuit interrupter and ground fault circuit interrupter functions in a single device. The tamper-resistant shutters block foreign object insertion while maintaining full protection for both occupants and wiring. The white finish suits standard residential and light commercial wallplate configurations. Licensed electricians install this device as part of code-compliant branch circuit work in bedrooms, kitchens, bathrooms, and other protected areas.

This receptacle is suited for residential new construction and renovation projects where the National Electrical Code requires both AFCI and GFCI protection on the same circuit. Typical applications include bedroom circuits, combination kitchen and bath circuits, and any branch circuit where a single device must satisfy both arc fault and ground fault requirements simultaneously. The tamper-resistant design meets NEC requirements for locations accessible to children.

Key Features

• Dual AFCI and GFCI protection in one device eliminates the need for separate breaker and outlet protection
• 15 amp, 120 volt rating for standard residential branch circuits
• Tamper-resistant shutters meet NEC requirements for child-safe receptacle installations
• White finish compatible with standard single-gang and duplex wallplates
• Combination design simplifies compliance with arc fault and ground fault code requirements

Compatibility

Designed as an OEM-style replacement or new-installation device for 15 amp, 120 volt residential and light commercial branch circuits requiring both AFCI and GFCI protection per NEC guidelines.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify zero voltage with a meter before wiring. Follow the device labeling for line and load terminal assignments; incorrect wiring of load terminals will prevent downstream protection from functioning. Test the AFCI and GFCI functions using the built-in test and reset buttons after installation and restore power only after confirming proper operation.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120 volts
• Protection Type: AFCI/GFCI Combination
• Tamper Resistant: Yes
• Color: White

Standard Information

• Brand: EATON
• Manufacturer Part Number: eaton-trafgf15w
