Eaton eaton-trafci15w 15A Afci Gfci Receptacle White

Product Description

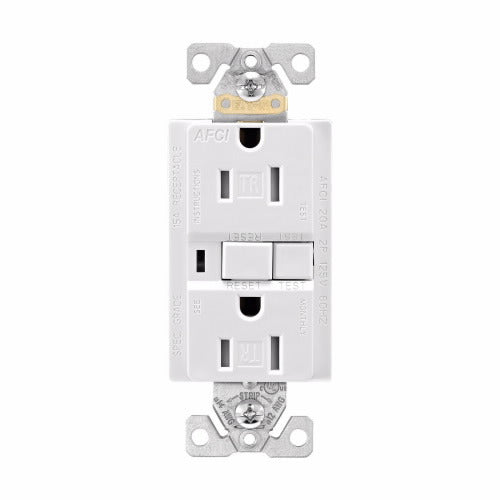

The EATON eaton-trafci15w is a tamper-resistant duplex receptacle that combines AFCI and GFCI protection in a single device rated at 15 amps. It is designed for installation in branch circuits where both arc-fault and ground-fault protection are required by code. The white finish suits standard residential and light commercial wiring applications. Licensed electricians install this device as a compliant solution where the National Electrical Code mandates dual-function protection at the outlet level, reducing the need for separate upstream protective devices.

This receptacle is suited for residential bedroom circuits, living areas, kitchens, bathrooms, and other locations where the NEC requires AFCI or GFCI protection or both. The tamper-resistant shutter mechanism meets requirements for installations in dwelling units where protection from foreign object insertion is mandated. It is appropriate for new construction wiring and retrofit replacement work in existing panel-fed branch circuits.

Key Features

• Combines AFCI and GFCI protection in a single duplex receptacle
• Tamper-resistant shutter mechanism for dwelling-unit compliance
• 15 amp rating for standard branch circuit use
• White finish matches common residential wallplate covers
• Reduces need for separate AFCI breaker plus GFCI device on the same circuit

Compatibility

Designed as an OEM-style replacement or new-install duplex receptacle for 15-amp branch circuits requiring combined AFCI and GFCI protection per NEC requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. Follow the device's labeled terminal markings for line and load connections; incorrect line-load orientation will prevent proper fault protection. The tamper-resistant feature requires no special tools but confirm the shutter mechanism moves freely after installation before closing the wallplate.

Technical Specifications

• Amperage: 15 amps
• Protection Type: AFCI and GFCI Combination
• Tamper Resistant: Yes
• Color: White

Standard Information

• Brand: EATON
• Manufacturer Part Number: eaton-trafci15w
