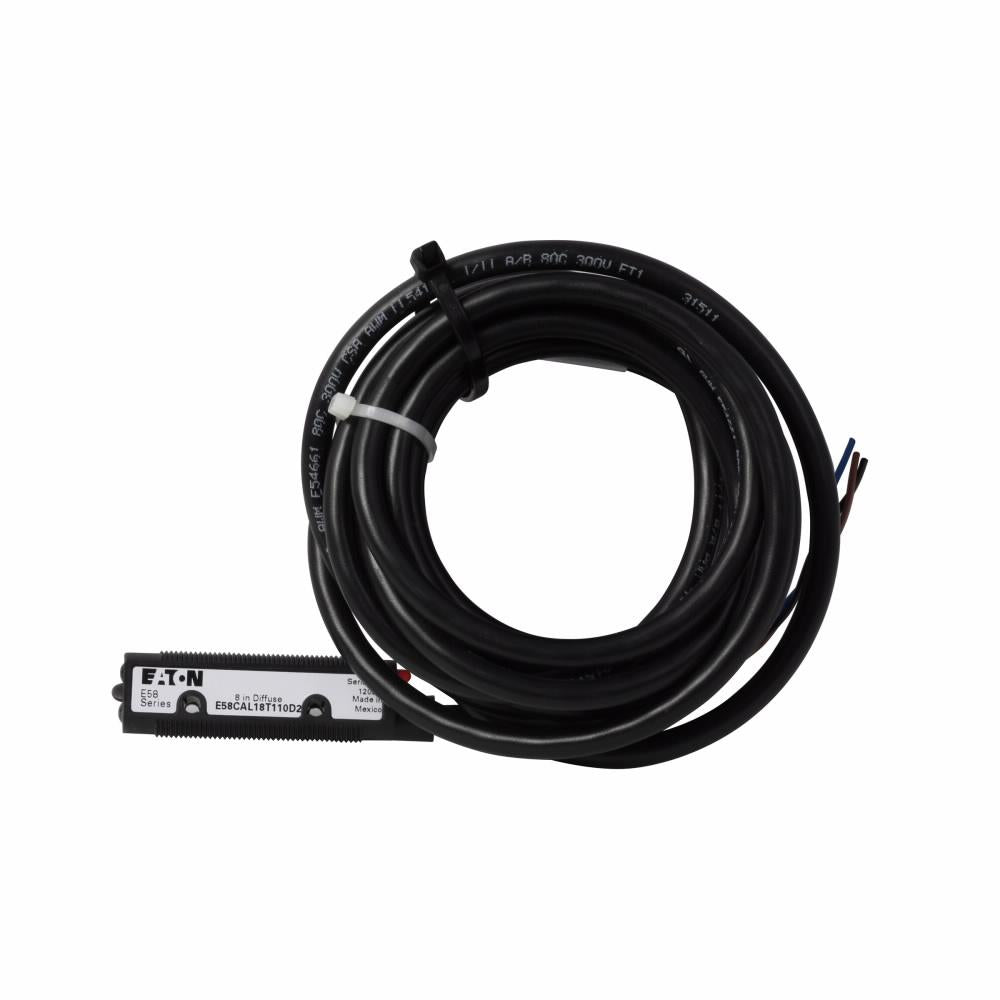

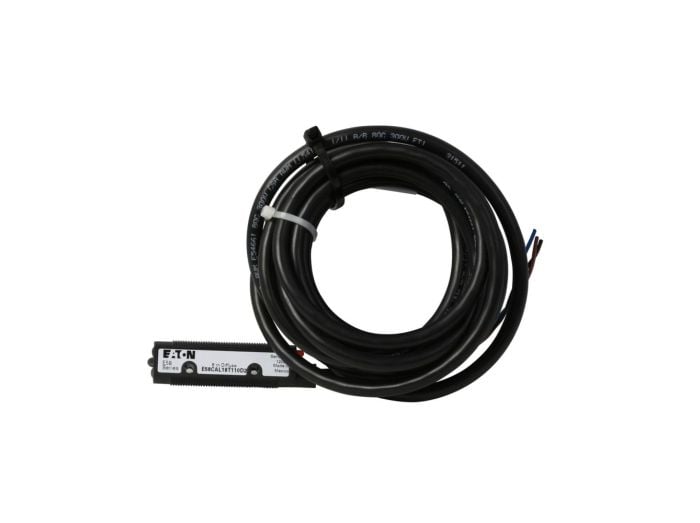

Eaton E58CAL18T110D2 Perfect Prox® Photoelectric Sensor 18 mm Dia

Product Description

The EATON E58CAL18T110D2 Perfect Prox® Photoelectric Sensor is a 3-Wire sensor with a tubular shape and diffuse reflective sensing method. It features an 8 in sensing range and a visible red sensing beam. The sensor has an NPN open collector/light operate output and operates on 10 to 30 VDC.

• Industry standard 18 mm tubular sensors offer wide voltage ranges and reliable performance
• Industry standard 18 mm tubular housing has flat sides allowing it to be mounted against a flat surface
• Solid polyurethane housing for high resistance to shock and vibration

Product Highlights

This photoelectric sensor is ideal for applications requiring high resistance to shock and vibration, with a visible beam for easy setup and an LED output status indicator.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58CAL18T110D2

Technical Specifications

• Type: 3-Wire
• Series: E58
• Shape: Tubular
• Sensing Method: Diffuse Reflective
• Sensing Range: 8 in
• Sensing Beam: Visible Red
• Response Time: 1 to 10 ms
• Output Type: NPN
• Voltage Rating: 10 to 30 VDC
• Amperage Rating: 250 mA
• Frequency Rating: 50/60 Hz
• Connection Type: 9.8 ft Cable
• Light Source: LED
• Vibration: 30 g Over 10 Hz to 2 kHz
• Size: 18 mm Dia
• Enclosure Type: NEMA 1/3/4/4X/6/12/13/IP69K
• Operating Temperature: -40 to 158 deg F
• Mounting Type: Surface
• Manufacturer Part Number: E58CAL18T110D2
• Manufacturer: Eaton
• Product Series: E58 TUBULAR
• Family Series: Eaton Photoelectric Sensors, E58 TUBULAR Series
• Description: Eaton harsh-duty sensor, E58 Series Tubular Plastic Body Photoelectric Sensor, 0.71 dia., Sensor dist: 8 In., 250 mA max DC, NPN Open Collector, NPN: 250 mA at 30Vdc, 9.8 Ft. 3m Cable input, Auto reset short circuit, 10 Ft3m
• Power Type: DC
• Beam Type: Infrared
• Max Range: 8 "
• Voltage: 10-30 VDC
• Nominal Voltage: 12 VDC, 24 VDC
• Operating Mode: Light On
• Max Load Current: 0.25 A
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
• Net Weight: 0.7 lbs
• Gross Weight: 0.7 lbs
• (Instrument-Sensor) NEMA Protection: NEMA 3
• (Instrument-Sensor) Size: M18
• (Instrument-Sensor) Type of Operator: NPN
• (Instrument-Sensor) IP Protection: IP69K
• Component: Photoelectric Sensor
• (Instrument-Sensor) Type: Tubular
• (Instrument-Sensor) Supply Voltage: 10-30 VDC
• (Instrument-Sensor) Contact Rating: 100 Ma At 30 VDC
• (Instrument-Sensor) Temperature Range: -40 °F - 158 °F
• (Instrument-Sensor) Cable Length: 9.8 Ft
• (Instrument-Sensor) Span: 0 - 8 In
• IP/NEMA Rating: NEMA 1, NEMA 4X, NEMA 4
