Eaton E58CAL18A2R2 Harsh-Duty Sensor 25 feet Range

Product Description

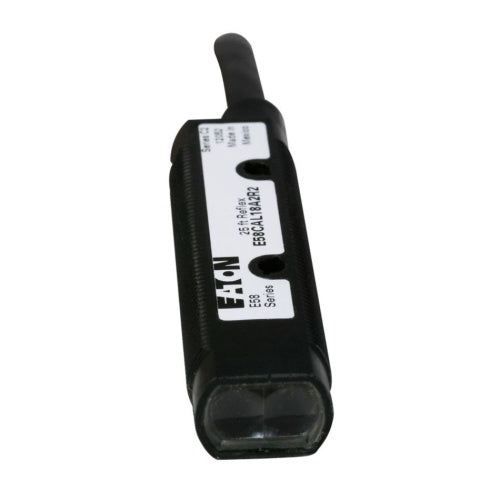

The Eaton E58CAL18A2R2 is a harsh-duty sensor from the Eaton E58 Series. This tubular plastic body photoelectric sensor has a 0.71-inch diameter and a sensing distance of 25 feet. It operates at 300 mA AC/DC at 20-264Vac/15-30Vdc with a 9.8 ft cable and accepts 20–264 Vac 50/60 Hz or 15–30 Vdc input.

• Features gain adjustment to ensure peak performance.
• Offers flexible mounting options with threaded bodies and flat sides.
• Provides high shock and vibration resistance with a solid polyurethane housing.

Product Highlights

This sensor is ideal for applications needing high shock resistance and flexible mounting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58CAL18A2R2

Technical Specifications

• Product Name: Eaton harsh-duty sensor
• Catalog Number: E58CAL18A2R2
• UPC: 782113109633
• Product Length/Depth: 0.47 in
• Product Height: 2.6 in
• Product Width: 0.71 in
• Product Weight: 0.2875 lb
• Warranty: 3 year
• Certifications: UL Listed cUL Listed CE
• Catalog Notes: Ranges based on a 3-inch retroreflector (not included)
• Product Type: Harsh-duty sensor
• Contact Rating: 300 mA AC/DC at 20-264Vac/15-30Vdc
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: Stainless steel
• Operating mode: Non polarized retroreflective

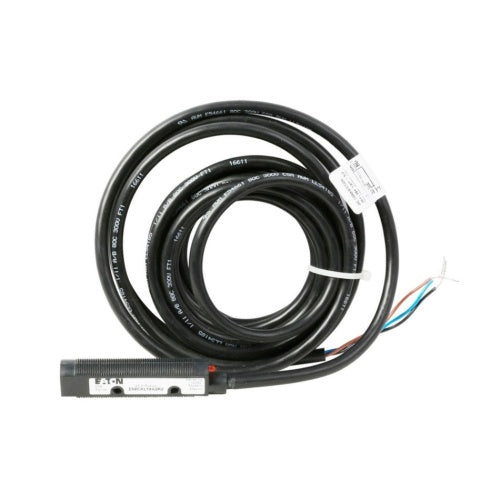

• Connection: 9.8 ft (3 m) cable
• Contact configuration: DC: NPN open collector AC: L1 switched
• Sensor type: Retroreflective
• Switch type: Photoelectric
• Input Voltage: 20-264 Vac at 50/60 Hz, 15-30 Vdc
• LED indicator: Output status: red
• Protection: Latching short circuit
• Cord length: 120 ft
• Maximum AC current: 300 mA
• Maximum DC current: 300 mA
• Operating temperature - max: 158 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
• Manufacturer: Eaton
• Product Series: E58 TUBULAR
• Family Series: Eaton Photoelectric Sensors, E58 TUBULAR Series
• Description: Eaton harsh-duty sensor, Eaton E58 Series Tubular Plastic Body Photoelectric Sensor, 0.71 dia, dist 25 Ft., AC: L1 Switched, DC: NPN Open, 300 mA AC/DC at 20-264Vac/15-30Vdc, 9.8 Ft. 3m Cable, 20–264 Vac 50/60 Hz or 15–30 Vdc input
• Power Type: AC, DC
• Max Range: 25 '
• Voltage: 15-30 VDC, 20-264 VAC
• Nominal Voltage: 120 VAC, 208 VAC, 24 VAC, 24 VDC, 240 VAC, 48 VAC
• Connection Type: Cable
• Operating Mode: Dark On
• Max Load Current: 0.3 A
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
• Net Weight: 0.7 lbs
• Gross Weight: 0.7 lbs
• Mounting: Panel
• Type: Reflex, Photoelectric Sensor
• Diameter: 18 mm
• Range: 25 ft
• Length: 3 m
• Volts DC Range: 15 - 30
• Volts AC Range: 20 - 264
• (Instrument-Sensor) NEMA Protection: NEMA 3
• (Instrument-Sensor) Size: M18
• (Instrument-Sensor) Type of Operator: NPN
• (Instrument-Sensor) IP Protection: IP69K
• Component: Photoelectric Sensor
• (Instrument-Sensor) Type: Tubular
• (Instrument-Sensor) Contact Rating: 300 Ma At 264 VAC
• (Instrument-Sensor) Supply Voltage: 20-264 VAC
• (Instrument-Sensor) Temperature Range: -40 °F - 158 °F
• (Instrument-Sensor) Cable Length: 9.8 Ft
• (Instrument-Sensor) Span: 0 - 25 Ft
