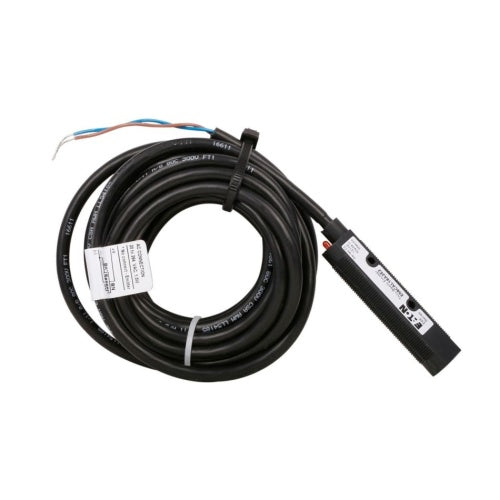

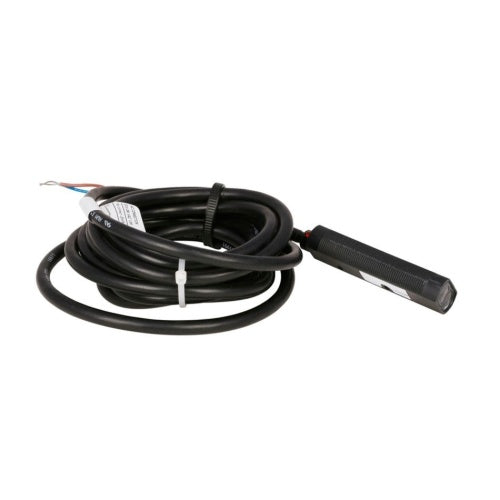

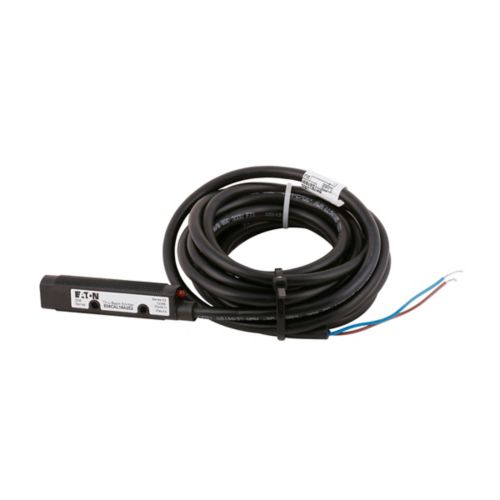

Eaton E58CAL18A2E2 Harsh-Duty Sensor 80 Ft

Product Description

The EATON E58CAL18A2E2 is a harsh-duty sensor from the E58 Series, featuring a tubular plastic body and photoelectric sensing. It has a 0.71 diameter, forward viewing, and a sensing distance of 80 ft. The sensor comes with a stainless steel enclosure and a 9.8 ft cable, with an input voltage of 20–264 Vac 50/60 Hz or 15–30 Vdc.

• Ideal for automotive applications with exposure to lubricants and coolants.
• Suitable for food-processing applications, withstanding high-pressure chemical washdowns.
• Highly refined optics provide long sensing ranges through high levels of contamination.

Product Highlights

This harsh-duty sensor is designed for reliable performance in demanding industrial environments, offering versatile voltage input and robust construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58CAL18A2E2

Technical Specifications

• Product Name: Eaton harsh-duty sensor
• Catalog Number: E58CAL18A2E2
• UPC: 782113147482
• Product Length/Depth: 0.47 in
• Product Height: 2.2 in
• Product Width: 0.71 in
• Product Weight: 0.2875 lb
• Certifications: UL Listed cUL Listed CE
• Catalog Notes: For complete system; order 1 source and 1 detector
• Product Type: Harsh-duty sensor
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: Stainless steel
• Operating mode: Thru-beam
• Connection: 9.8 ft (3 m) cable
• Sensor type: Photoelectric Thru-Beam Source
• Switch type: Photoelectric
• Input voltage: 20-264V AC / 15-30V DC
• LED indicator: Power on: red
• Cord length: 120 ft
• Operating temperature - max: 158 {
