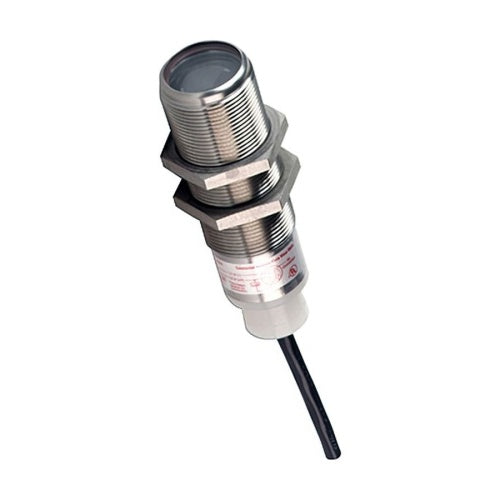

Eaton E58CAL18A2C2 harsh-duty sensor

Product Description

The Eaton E58CAL18A2C2 is a harsh-duty sensor, part of the E58 Series Tubular Plastic Body Photoelectric Sensor line. It features a 0.71 diameter, sensing distance of 80 ft, and operates at 300 mA AC/DC at 20-264Vac/15-30Vdc with a 9.8 ft cable. Suitable for environments with lubricants and coolants.

• Ideal for automotive applications with exposure to lubricants and cutting fluids.
• Refined optics provide long sensing ranges through high levels of contamination.
• Features visible sensing beams for easy setup.

Product Highlights

This photoelectric sensor is designed for harsh environments, offering high performance and easy setup with its visible sensing beams.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E58CAL18A2C2

Technical Specifications

• SKU: E58CAL18A2C2
• Product Name: Eaton harsh-duty sensor
• Catalog Number: E58CAL18A2C2
• UPC: 782113147499
• Product Length/Depth: 0.47 in
• Product Height: 2.2 in
• Product Width: 0.71 in
• Catalog Notes: For complete system; order 1 source and 1 detector
• Product Type: Harsh-duty sensor
• Contact Rating: 300 mA AC/DC at 20-264Vac/15-30Vdc
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: Stainless steel
• Operating mode: Thru-beam
• Connection: 9.8 ft (3 m) cable
• Contact configuration: DC: NPN open collector AC: L1 switched
• Sensor type: Through beam
• Switch type: Photoelectric
• Input voltage: 20-264 Vac at 50/60 Hz, 15-30 Vdc
• LED indicator: Output status: red
• Protection: Latching short circuit
• Cord length: 120 ft
• Maximum AC current: 300 mA
• Maximum DC current: 300 mA
• Operating temperature - max: 158 F
• Operating temperature - min: -40 F
• Environmental rating: NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
• Primary brand: Eaton
• Order code / Manufacturer SKU: E58CAL18A2C2
• Manufacturer product status: Commercialized
• Manufacturer description: E58 Series Tubular Plastic Body Photoelectric Sensor - 0.71 diam. - dist 80ft - AC L1 Switched - DC NPN Open - 300mA AC/DC at 20-264Vac/15-30Vdc - 9.8ft (3m) Cable - 20...264Vac 50/60Hz or 15...30Vdc input - Latching short circuit - Thru-Beam
• Category: Photoelectric
• (Instrument-Sensor) NEMA Protection: NEMA 3
• (Instrument-Sensor) Size: M18
• (Instrument-Sensor) Type of Operator: NPN
• (Instrument-Sensor) IP Protection: IP69K
• Component: Photoelectric Sensor
• Manufacturer: Eaton
• (Instrument-Sensor) Type: Tubular
• (Instrument-Sensor) Contact Rating: 300 Ma At 264 VAC
• (Instrument-Sensor) Supply Voltage: 20-264 VAC
• (Instrument-Sensor) Temperature Range: -40 F - 158 F
• (Instrument-Sensor) Cable Length: 9.8 Ft
• (Instrument-Sensor) Span: 0 - 80 Ft
• Product Series: E58 TUBULAR
• Family Series: Eaton Photoelectric Sensors, E58 TUBULAR Series
• Description: Eaton harsh-duty sensor, E58 Series Tubular Plastic Body Photoelectric Sensor, 0.71 dia, dist 80 Ft., AC: L1 Switched, DC: NPN Open, 300 mA AC/DC at 20-264Vac/15-30Vdc, 9.8 Ft. 3m Cable, 20 264 Vac 50/60 Hz or 15 30 Vdc input
• Power Type: AC, DC
• Max Range: 80 '
• Voltage: 15-30 VDC, 20-264 VAC
• Nominal Voltage: 120 VAC, 24 VAC, 24 VDC, 240 VAC, 48 VAC
• Operating Mode: Dark On
• Connection Type: Cable
• Max Load Current: 0.3 A
• Matching Source Unit: E58CAL18A2E2
• Composition: Non-Metallic
• Protection Rating: NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
• Comments: Thru-Beam Detector
