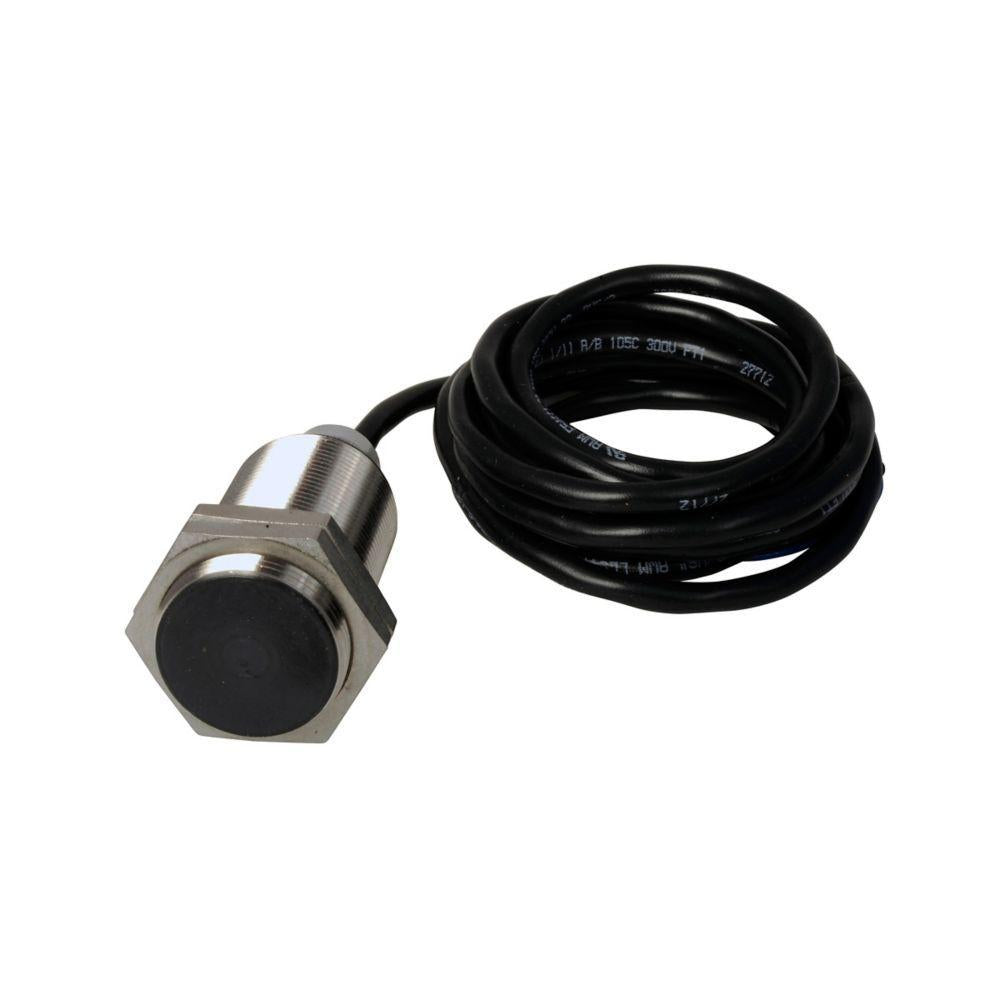

Eaton E57SAL30A2E Inductive Proximity Sensor 2-Wire Short Body Tubular Unshielded

Product Description

Eaton E57SAL30A2E is a two-wire short body tubular inductive proximity sensor designed for various industrial applications. This inductive sensor features a sensing distance of 15 millimeters and works effectively in stationary machinery environments. It operates on a voltage range of forty to two hundred forty volts alternating current or twenty to two hundred fifty volts direct current with a maximum output of two hundred fifty milliamps.

• Inductive proximity sensor with a sensing distance of 15 mm
• Stainless steel enclosure for durability
• Operates at 250V with a cable length of 6.6 feet

Product Highlights

The E57 Series provides reliable sensing for automation needs with excellent noise immunity and dual color LED for clear status indication.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Type: Inductive proximity sensor
• Sensing Method: Inductive
• Sensing Distance: 15 mm
• Voltage Rating: 40 to 240 VAC / 20 to 250 VDC
• Amperage Rating: 250 mA
• Input Voltage: 250 V
• Cable Length: 6.6 ft
• Enclosure Material: Stainless Steel
• Operating Temperature: -13 to 158 degrees F
• Mounting Type: Non-Flush
• Contact Configuration: 1NO
• Size: 1.18 x 1.18 x 2.72 in
• Environmental Conditions: 10 to 55 Hz, 1 mm Amplitude Vibration
