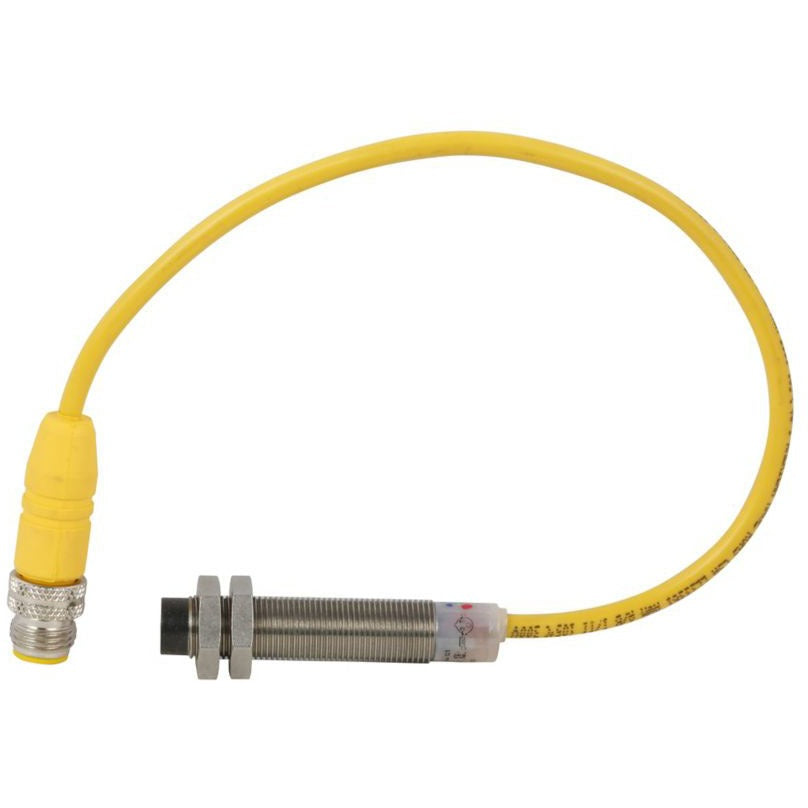

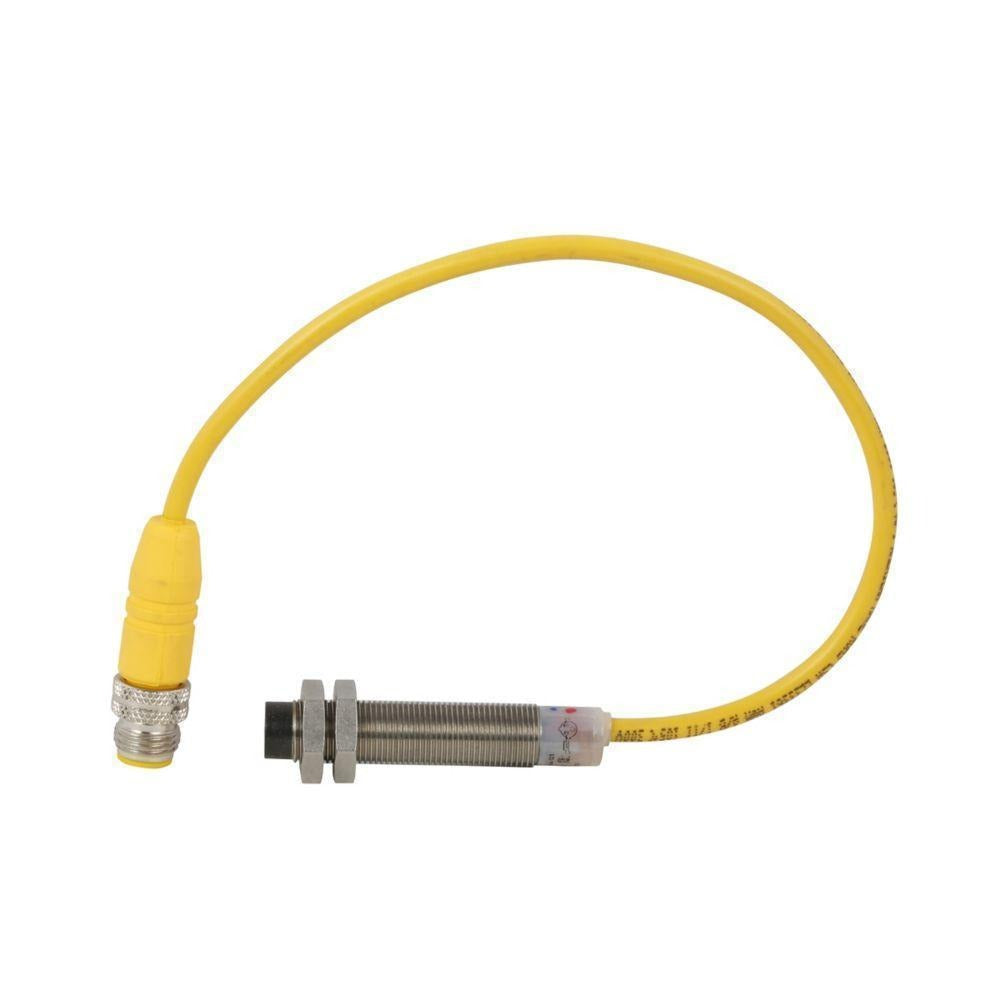

Eaton E57LBL12T110ED Tubular inductive proximity sensor 48 Vdc (12 mm)

Product Description

Eaton E57LBL12T110ED is an E57 Premium+ tubular inductive proximity sensor with a 0.47 in (12 mm) stainless steel body and a 4 mm sensing distance. It provides NC NPN open-collector output with a 500 mA maximum DC contact rating (500 mA at 6–30 Vdc). The sensor uses a 4-pin M12 connector, is unshielded end-sensing, has accuracy better than 3%, and operates from -13 to 158 °F.

• 4 mm sensing distance; straight tubular 0.47 in (12 mm) stainless steel body; unshielded end-sensing
• NC NPN open-collector output, 500 mA max DC contact rating (500 mA at 6–30 Vdc); 4-pin M12 connector
• Environmental protection IP67/IP69K and NEMA 4X/6P, short-circuit protected, red LED output status indicator; operating temperature -13 to 158 °F

Product Highlights

End-sensing inductive proximity sensor, 4 mm range, NC NPN open-collector output, 4-pin M12 connector, stainless steel tubular housing

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E57LBL12T110ED
• Country of Origin: United States
