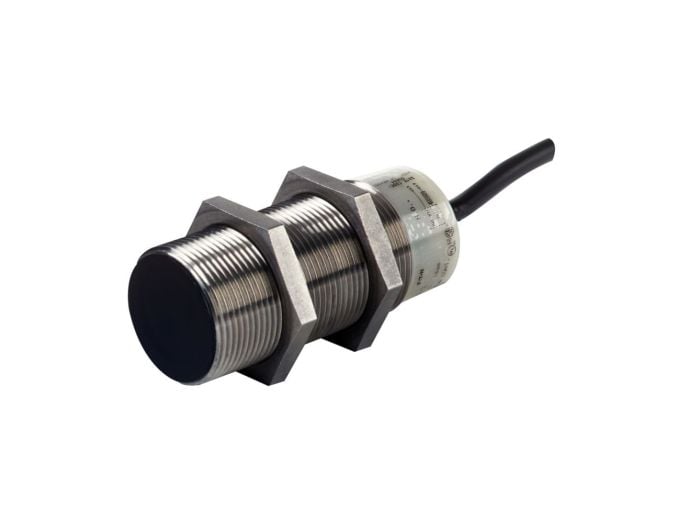

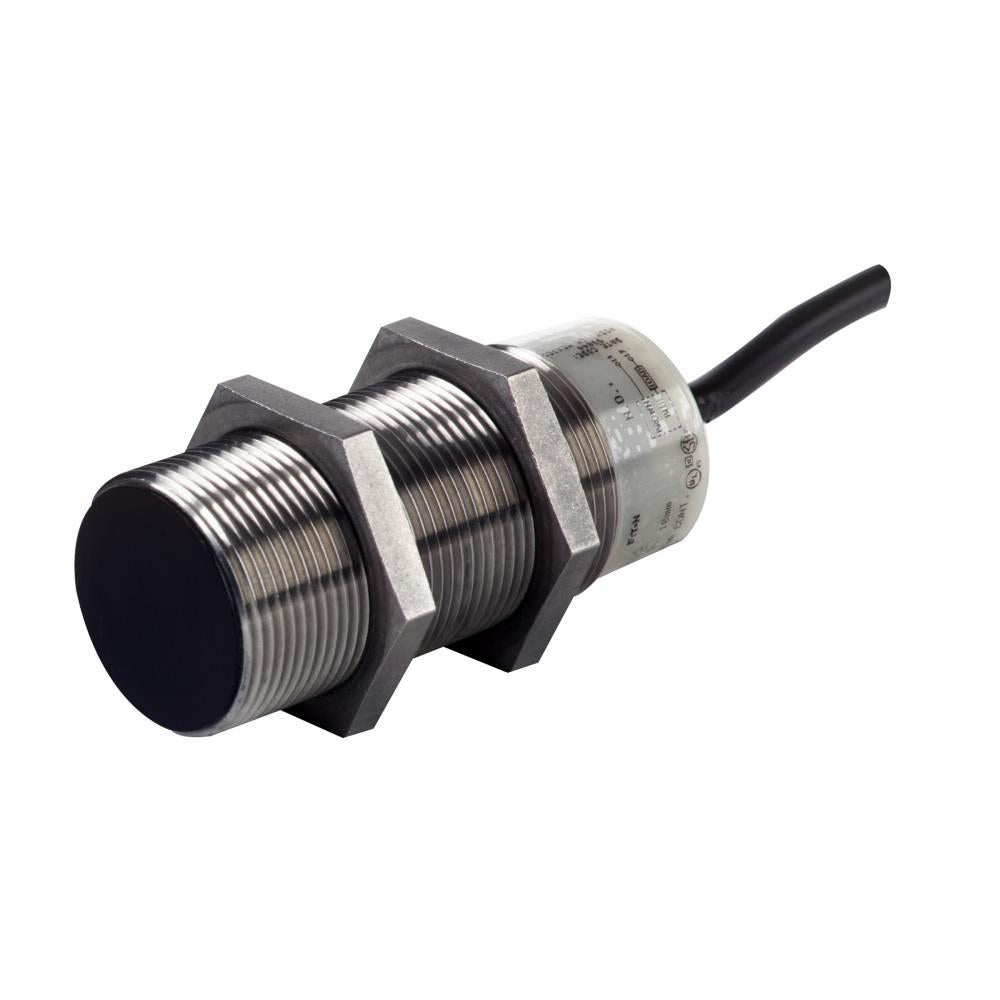

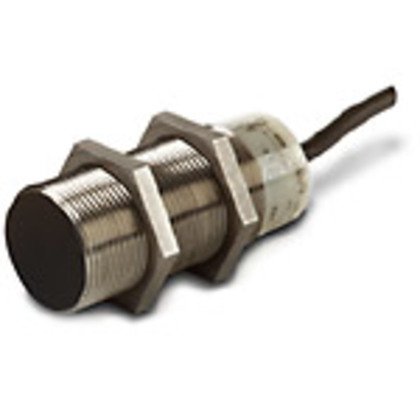

Eaton E57LAL30A2 Inductive Proximity Sensor 20 to 250 VAC (30 mm Dia)

Product Description

The EATON E57LAL30A2 is an inductive proximity sensor from the E57 2-wire family. It features a 10 mm sensing distance and is constructed from 303 stainless steel. Designed for end sensing positions, it offers <3 % accuracy. The sensor has a 1NO contact configuration and operates between 20 to 250 VAC at 250 mA.

• Large range of connector and output circuit options for maximum flexibility
• High noise immunity of 20 V/m prevents electrical noise problems
• 360 deg visibility, dual color output LED indicator for easy viewing

Product Highlights

The EATON E57LAL30A2 proximity sensor is ideal for automation, robotics, transfer lines, conveyors, and material handling. Its robust design is suitable for extreme temperatures and high-pressure washdown environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E57LAL30A2
• Country of Origin: China

Technical Specifications

• Accuracy: <3 %
• Amperage Rating: 250 mA
• Connection Type: Cable
• Enclosure Type: NEMA 4/4X/6/6P/12/13/IP67/IP69K
• Material: 303 Stainless Steel
• Mounting Type: Flush
• Sensing Distance: 10 mm
• Sensing Position: End
• Series: E57 Premium+
• Size: 30 mm Dia
• Temperature Rating: -13 to 158 deg F
• Type: 2-Wire Shielded Straight
• Sensing Method: Inductive
• Contact Configuration: 1NO
• Voltage Rating: 20 to 250 VAC
• Product Name: Eaton E57 inductive proximity sensor
• Catalog Number: E57LAL30A2
• UPC: 782113743066
• Product Length/Depth: 2.73 in
• Product Height: 1.18 in
• Product Width: 1.18 in
• Product Weight: 0.5 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Inductive proximity sensor
• Contact Rating: 250 mA at 250V
• Actuator function: Shielded
• Cable type: Polyvinyl Chloride (PVC)
• Environmental rating: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
• Cord length: 79.2 ft
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Maximum AC current: 250 mA
• Input Voltage: 20-250 V
• LED indicator: 360 ° viewable LED
• Manufacturer: Eaton
• Product Series: E57 PREMIUM +
• Family Series: Eaton Inductive Proximity, E57 PREMIUM + Series
• Description: Eaton Premium+ Inductive Proximity Sensor, E57, 10 mm range, Straight, 30 mm, Shielded, 360° viewable LED, 6.6 ft, 250 mA at 250V, <3 sensing range, PVC, 2-wire AC, NO, 20-250V
• Diameter: 30 mm
• Shielding: Shielded
• Power Type: AC
• Range: 10 mm
• Cable Length: 2 m
• Output Type: NO
• Number of Wires: 2
• Composition: Metallic
• Voltage: 20-250 VAC
• Nominal Voltage: 120 VAC, 208 VAC, 24 VAC, 240 VAC, 48 VAC
• Sensing Type: End
• Status Indicator: Yes
• Max Load Current: 0.5 A
• Approvals: cUL
• Net Weight: 0.5 lbs
• Gross Weight: 0.5 lbs
• UNSPSC Code: 41110000
• Switching Current: 250 mA
• Unit of Measure: EA
• Applications: Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory
• Standard: CE Marked,CSA,UL
• Environmental Conditions: NEMA 4, 4X, 6, 6P, 12, 13, IP67, IP69K
• Country of Origin: China
