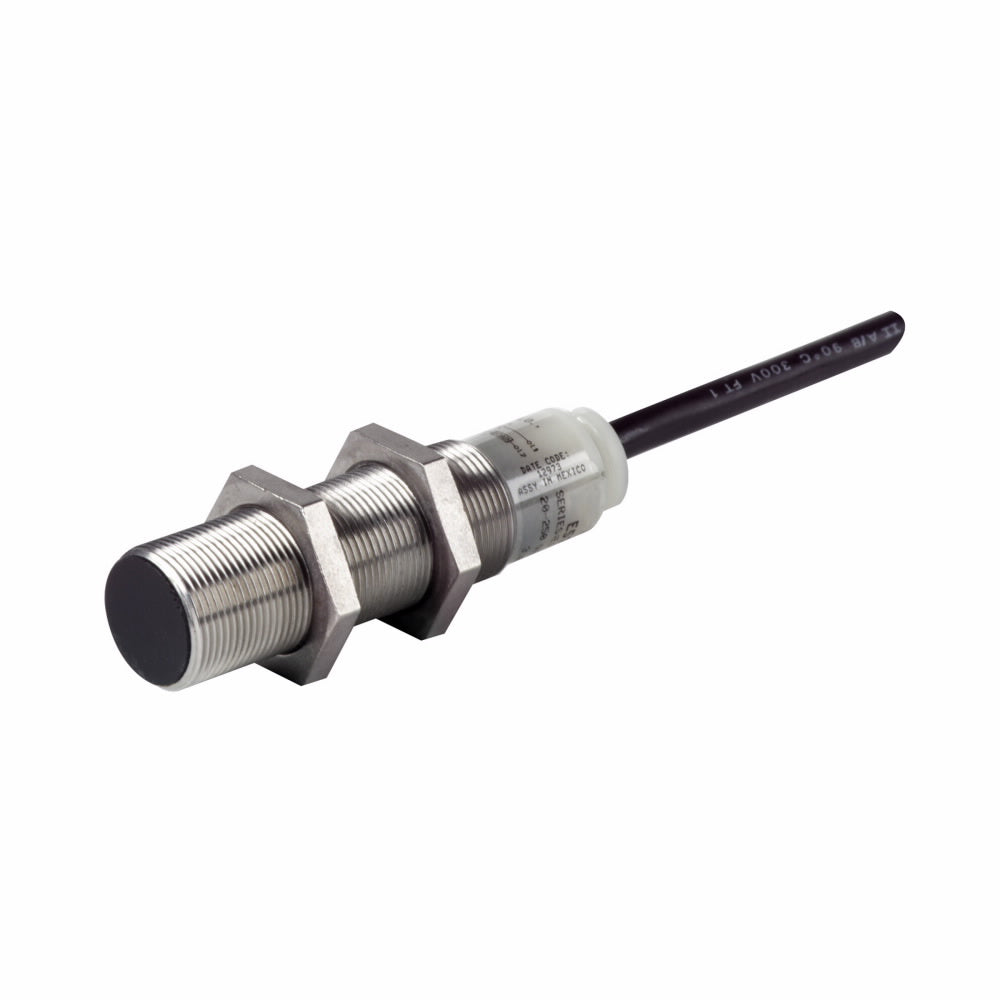

Eaton E57LAL18A2 CH 18mm Inductive Proximity Sensor 5mm

Product Description

The EATON E57LAL18A2 is a 2-wire shielded straight inductive proximity sensor from the E57 Premium+ series. It features a 5 mm sensing distance and end sensing position with less than 3% accuracy. The sensor has a robust 303 stainless steel construction and is suitable for stationary machine equipment in factory and other stationary machinery.

• Large range of connector and output circuit options for maximum flexibility
• High noise immunity of 20 V/m prevents electrical noise problems
• 360 deg visibility, dual color output LED indicator for easy viewing

Product Highlights

This inductive proximity sensor detects metal targets using electromagnetic energy without contact. Its robust design is ideal for extreme temperatures or high-pressure washdown environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E57LAL18A2
• Country of Origin: US

Technical Specifications

• Accuracy: <3 %
• Amperage Rating: 250 mA
• Application: Stationary Machine Equipment in Factory - Other Stationary Machinery and Equipment
• Connection Type: Cable
• Contact Configuration: 2-wire AC, NO
• Enclosure: NEMA 4/4X/6/6P/12/13/IP67/IP69K
• Manufacturer Part Number: E57LAL18A2
• Material: 303 Stainless Steel
• Mounting Type: Flush
• Sensing Distance: 5 mm
• Sensing Method: Inductive
• Sensing Position: End
• Series: E57 Premium+
• Size: 18 mm Dia
• Standards/Approvals: UL Listed|cULus Listed|CSA Certified|OSHPD Approved
• Temperature Rating: -13 to 158 deg F
• Type: 2-Wire Shielded Straight
• Voltage Rating: 20 to 250 VAC
• Product Length/Depth: 2.54 in
• Product Height: 0.71 in
• Product Width: 0.71 in
• Product Weight: 0.7 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Inductive proximity sensor
• Contact Rating: 250 mA at 250V
• Actuator function: Shielded
• Cable type: Polyvinyl Chloride (PVC)
• Environmental rating: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
• Cord length: 79.2 ft
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Maximum AC current: 250 mA
• Input voltage: 20-250 V
• LED indicator: 360 ° viewable LED
• Diameter: 18 mm
• Volts AC Range: 20 - 250
• Switching Current: 250 mA
• Supply Voltage: 250 VAC
• Output: NO
• Shielding: shielded
