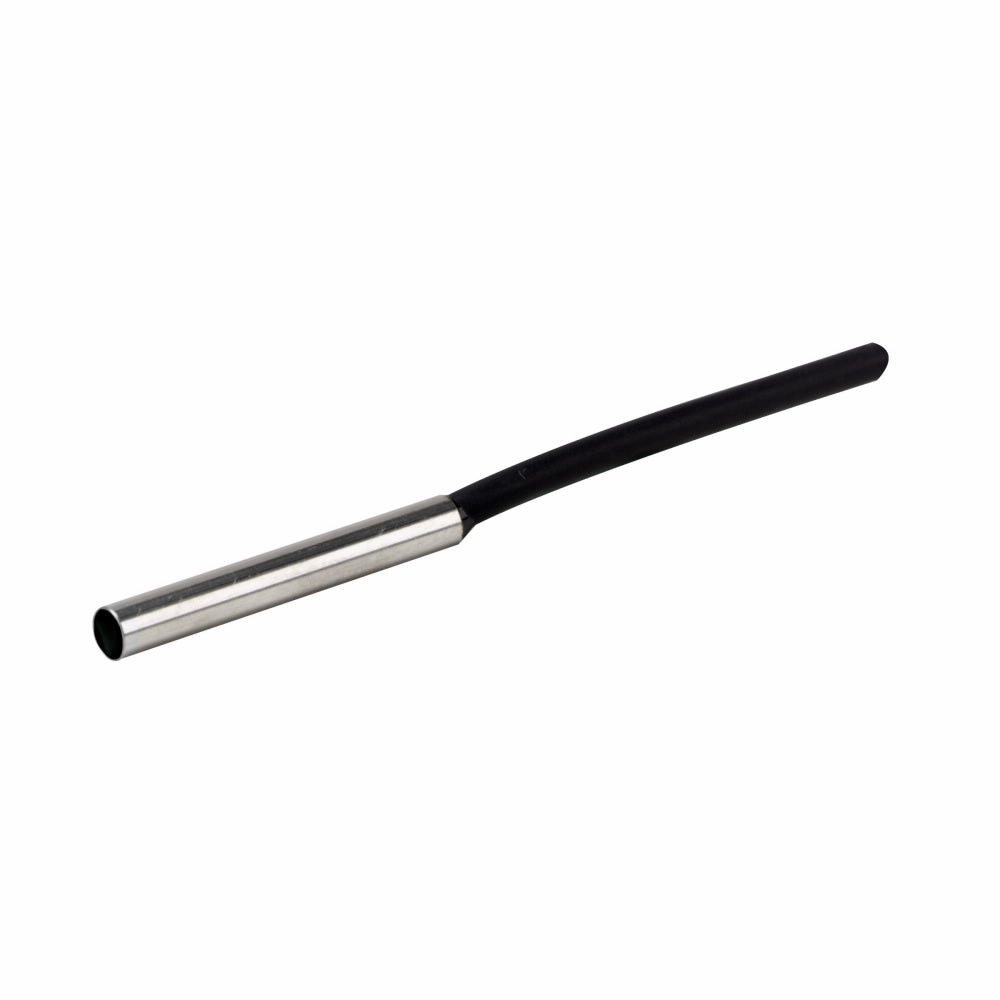

Eaton E57EAL4T110SP ch m4 Inductive Proximity Sensor Stainless Steel Barrel NPN NO 0.8mm Range Shielded Cable

Product Description

The EATON E57EAL4T110SP is a proximity sensor from the E57 Small Diameter series, featuring inductive sensing. This shielded, straight, unthreaded sensor has a sensing distance of 0.8 mm and utilizes an NPN open collector output with a NO contact configuration. It operates on 10 to 30 VDC.

• Small diameters for use in applications with limited space for mounting sensors
• All models include an LED indicator to show output status
• Short circuit and reverse polarity protection

Product Highlights

This stainless steel proximity sensor is ideal for stationary machinery and equipment applications, offering reliable performance in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E57EAL4T110SP

Technical Specifications

• Amperage Rating: 200 mA
• Application: Stationary Machinery and Equipment Applications
• Connection Type: 3-Wire 6.6 ft Cable
• Contact Configuration: NO
• Enclosure: NEMA 4/4X/6/6P/12/13/IP67
• Manufacturer Part Number: E57EAL4T110SP
• Material: Stainless Steel
• Mounting Type: Flush
• Output Type: NPN Open Collector
• Response Time: <50 ms
• Sensing Distance: 0.8 mm
• Sensing Method: Inductive
• Sensing Position: End
• Series: E57 Small Diameter
• Standards/Approvals: cCSAus Certified|CE Certified|UL Listed
• Switching Speed: 2 kHz
• Temperature Rating: -13 to 158 deg F
• Type: Shielded Straight Unthreaded
• Voltage Rating: 10 to 30 VDC
• Part Number: E57EAL4T110SP
• Manufacturer: EATON
