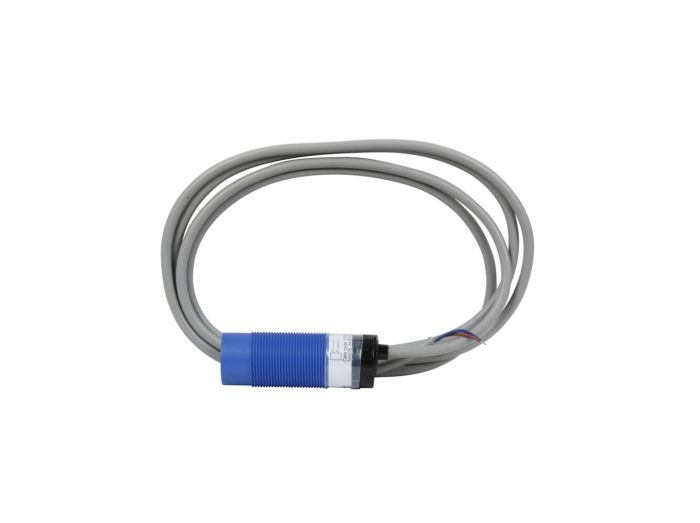

Eaton E53KBL30A2E Tubular Capacitive Proximity Sensor 30 mm

Product Description

The EATON E53KBL30A2E is a tubular capacitive proximity sensor designed to detect both metallic and non-metallic targets. Ideally suited for liquid level control and for sensing powdered or granulated material. It operates on 20-250 VAC. For optimal performance, use in environments with relatively constant temperature and humidity.

• Detect liquids, powders and other materials that are difficult to detect with other sensor types
• Plastic body is corrosion-resistant
• Sensitivity adjustment

Product Highlights

Eaton's E53 tubular capacitive sensors are an ideal solution for liquid level control and sensing powdered or granulated materials.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E53KBL30A2E

Technical Specifications

• Product Name: Eaton E53 tubular capacitive proximity sensor
• Catalog Number: E53KBL30A2E
• UPC: 782113887753
• Product Length/Depth: 3.15 in
• Product Height: 1.18 in
• Product Width: 1.18 in
• Product Weight: 0.45 lb
• Warranty: 1 year
• Product Type: Tubular capacitive proximity sensor
• Type: 2-Wire Threaded Straight Unshielded
• Contact Rating: 300 mA Solid State Output
• Actuator function: Unshielded
• Cable type: Polyvinyl Chloride (PVC)
• Enclosure material: Nylon PA66
• Mounting nuts: POM
• Contact configuration: 2-wire AC, NC
• Series: E53
• Input voltage: 20-250 V
• LED indicator: Output ON Output
• Maximum AC current: 300 mA
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Cord length: 79.2 ft
• Environmental rating: NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
• Construction Style: Barrel/Tubular
• Sensing Range: 25mm
• Wires - Voltage Type: 2 Wire AC
• Voltage: 20-250V AC
• Shielding: Unshielded
• Connection Type: Wire Leads
• Connection Size: 2m (6.5 ft.)
• Output Mode: NC
• Diameter: 30mm
• Material: Polyoxymethylene
• Material - Face: Plastic
• Enclosure Rating NEMA: NEMA 4, 12, 13
• Enclosure Rating IEC: IEC IP65
• Switching Frequency: 15 Hz
• Load Current - max: 300 mA
• Temperature Rating: -13 to 158
• UNSPSC Code: 41110000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E53KBL30A2E
• Primary Type: Capacitive Proximity Sensors
• Unit of Measure: EA
• Overview: Capacitive Proximity Sensors
• MPN: E53KBL30A2E
• Category: Business & Industrial
• UNSPSC: 41111926
• Application: Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
• Output Type: ON
• Construction: Threaded Barrel
• Enclosure Type: NEMA 1/2/3/3S/4/12/13/IP65
• Voltage Rating: 20 to 250
• Barrel Diameter: 30 Millimeter
• Number of Wires: 2
• Sensing Position: End
• Enclosure: NEMA 1/2/3/3S/4/12/13, IP65
• Operating Voltage: 20 to 250 Volt AC
• Output Configuration: NC
• Contact Configuration: 1NC
• Operating Temperature: -13 to 158 Deg F
• Size: 3.15 in L x 1.18 in W x 1.18 in H
• Amperage Rating: 300
• Sensing Distance: 0.98
• Nominal Voltage: 120 VAC, 24 VAC, 240 VAC, 48 VAC
• Output Circuit: NC
• Status Indicator: Yes
• Composition: Non-Metallic
• Net Weight: 0.5 lbs
• Gross Weight: 0.5 lbs
