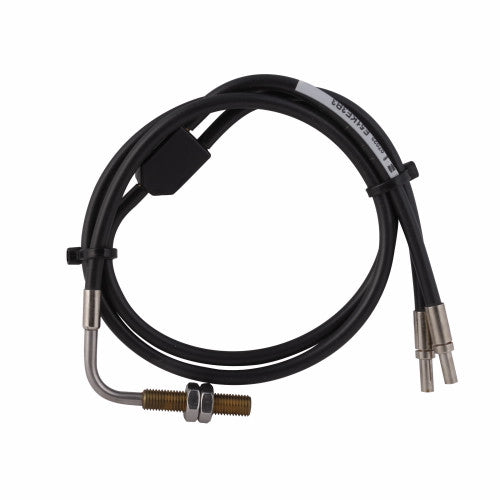

Eaton E51KF823 Fiber Optic Cable 36 Inch

Product Description

The Eaton E51KF823 is a fiber optic cable designed for photoelectric sensors and NEMA limit switches. This fiber optic cable features a stainless steel enclosure and operates in thru-beam mode. It is suitable for use in a range of industrial environments.

• Operating temperature range of -49° to 480°F
• Stainless steel enclosure for durability
• Fiber-optic thru-beam operation

Product Highlights

The EATON E51KF823 fiber optic cable is ideal for photoelectric sensor applications requiring reliable performance in harsh conditions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51KF823
• Country of Origin: US

Technical Specifications

• Product Name: Eaton E51 NEMA limit switch photoelectric sensor fiber optic cable
• Catalog Number: E51KF823
• UPC: 782113209661
• Product Length/Depth: 1.5 in
• Product Height: 36 in
• Product Width: 0.31 in
• Product Weight: 0.1813 lb
• Warranty: 3 year
• Certifications: UL Listed CSA Certified
• Product Type: Limit switch photoelectric sensor accessory
• Enclosure Material: Stainless steel
• Operating Mode: Fiber-optic Thru-beam
• Sensor Type: Fiberoptic
• Operating temperature - max: 480 °F
• Operating temperature - min: -49 °F
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Ip Rating: IP67
• Nema Enclosure Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
• Item: Cable
• Notes: Collar Mounting Cables And Standard Mounting Cables Are Not Interchangeable And Must Be Coupled To The Correct Sensor. Two Cables Are Needed One For The Source And One For The Detector
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E51KF823
• Height: 36"
• Length: 1 1/2"
• Max. Operating Temp.: 480°F
• Min. Operating Temp.: -49°F
• Country of Origin: United States - Subject to change
• Cable Type: Terminated Single Fiber
• Sensor Mode: Through Beam
• Fiber Material: Glass
• Fiber/Bundle Diameter: 0.125 in (3.20 mm)
• Jacket: Stainless Steel
• Tip Style: Threaded End
• Tip Viewing Direction: Forward
• Tip Diameter: 0.312 in (7.9 mm)
• Operating Temperature: -45 to 249 deg C (-50 to 480 deg F)
