Eaton E51DP6 nema limit switch photoelectric sensor 19 in

Product Description

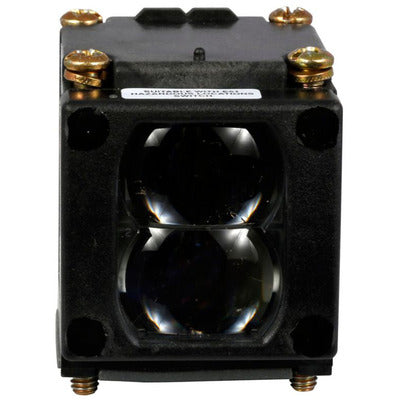

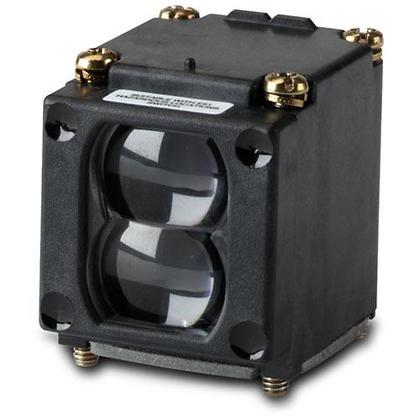

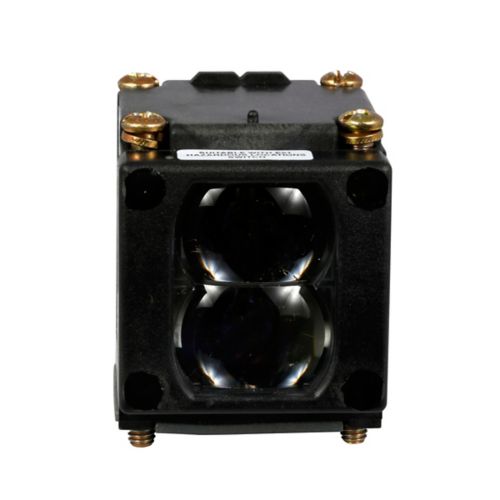

The EATON E51DP6 is a NEMA limit switch photoelectric sensor. This photoelectric sensor head features diffuse reflective sensing with a 19-inch range and right angle design. It includes screw terminal connection and an LED indicator for power status. The sensor head can be rotated to four discrete positions.

• Diffuse reflective photoelectric sensor
• 19-inch sensing range
• Operating temperature range of -13 to 158 deg F

Product Highlights

The EATON E51DP6 photoelectric sensor is suitable for various sensing applications, offering easy maintenance and reduced downtime.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E51DP6

Technical Specifications

• SKU: E51DP6
• Product Name: Eaton E51 NEMA limit switch photoelectric sensor
• Catalog Number: E51DP6
• UPC: 782113142913
• Product Length/Depth: 1.54 in
• Product Height: 4.89 in
• Product Width: 1.82 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Assembled sensor with head; sensor body and receptacle. Sensor head can be rotated to any of four discrete positions on body; 90% apart; but is not separate from body.
• Product Type: Limit switch photoelectric sensor
• Type: Photoelectric Sensor Head
• Enclosure material: Head: plastic Body: die cast zinc
• Operating mode: Thru-beam
• Connection: Screw terminal
• Series: E51
• Sensor type: Through beam
• Switch type: Photoelectric
• Input voltage: 10-30 Vdc
• LED indicator: Power on: red
• Operating temperature - max: 158 °F
• Operating temperature - min: -13 °F
• Environmental rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
• Primary brand: Eaton
• Order code / Manufacturer SKU: E51DP6
• Manufacturer description: Photoelectric Sensor Head - E51 - Diffuse Reflective - 19" range - Right Angle
• UNSPSC Code: 41110000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E51DP6
• Sensor Type: Diffuse Reflective
• E51 Series: E51 Series
• Right Angle Modular: Right Angle Modular
• UNSPSC: 39121528
• Approval: UL (Canada and US), CSA
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Output Type: Light/Dark Operate
• Body Material: Die-Cast Zinc
• Response Time: 20 ms AC/DC ON, 30 to 22 ms AC/DC OFF
• Enclosure Type: NEMA 3/3S/4/4X/6/6P/12/13/IP67
• Operating Mode: Light/Dark
• Enclosure: NEMA 3/3S/4/4X/6/6P/12/13, IP67
• Operating Voltage: 10 to 30 Volt DC
• Temperature Rating: -13 to 158
• Operating Temperature: -13 to 158 Deg F
• Field of View: 1 Inch Diameter at 9 Inch
• Sensing Range: 19
