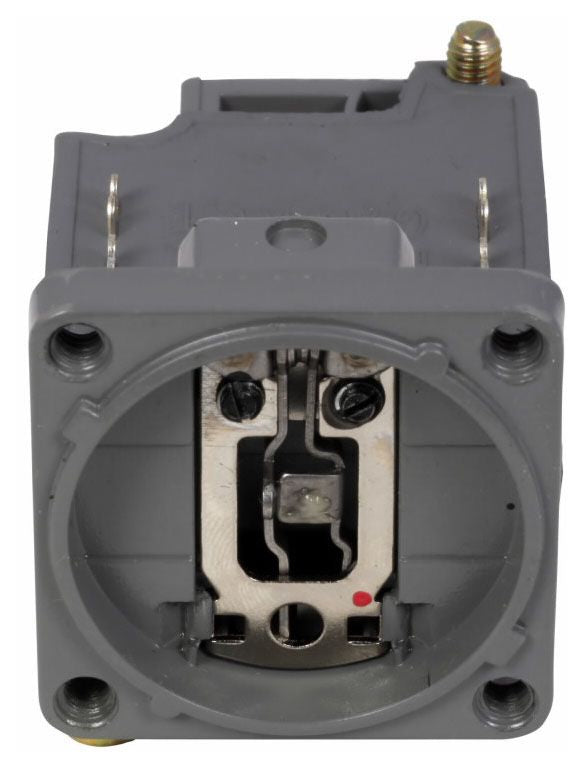

Eaton E50SN Heavy Duty Plug-in Limit Switch

Product Description

The EATON E50SN is a heavy duty plug-in limit switch designed for industrial and commercial control applications. Limit switches of this type sense the position or movement of machine components and send a signal to the control circuit to start, stop, or reverse an operation. The plug-in design allows the contact block to be removed and replaced without disturbing the field wiring, reducing downtime during maintenance. Compact in size at 3.14 inches long, 1.54 inches wide, and 1.73 inches tall, the E50SN fits into tight panel and machine mounting locations. It weighs 0.41 pounds.

This limit switch is suited for use in industrial machinery, conveyor systems, automated equipment, and other applications where precise position sensing is required. Electricians and industrial maintenance technicians typically install and service this type of device. The plug-in contact block design makes it a practical choice for facilities that require fast field servicing without rewiring.

Key Features

• Heavy duty construction rated for demanding industrial environments
• Plug-in contact block design allows contact replacement without disturbing field wiring
• Compact footprint at 3.14 x 1.54 x 1.73 inches for installation in tight spaces
• Lightweight at 0.41 pounds for easy handling and mounting
• Designed for position sensing and machine control circuit integration

Compatibility

Designed as an OEM-style replacement or direct-fit limit switch for heavy duty plug-in limit switch applications compatible with the EATON E50 series platform.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the control circuit before installing or servicing this switch. Verify actuator alignment with the target machine component before securing the switch in its final position. Do not exceed the rated electrical load for the contact block.

Technical Specifications

• Length: 3.14 inches
• Width: 1.54 inches
• Height: 1.73 inches
• Weight: 0.41 pounds

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50SN
