Eaton E50SAN E50 nema heavy duty plug-in limit switch

Product Description

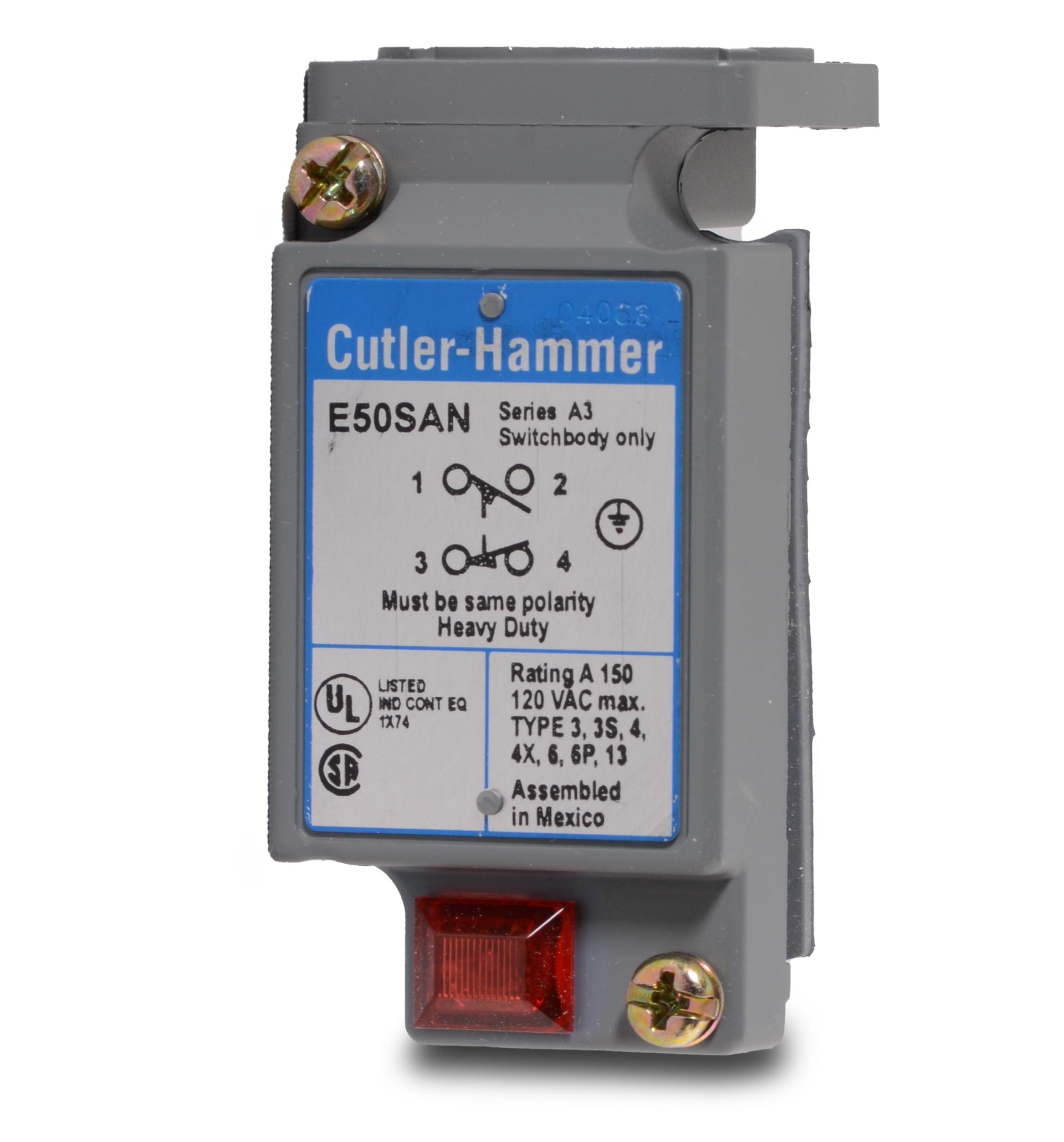

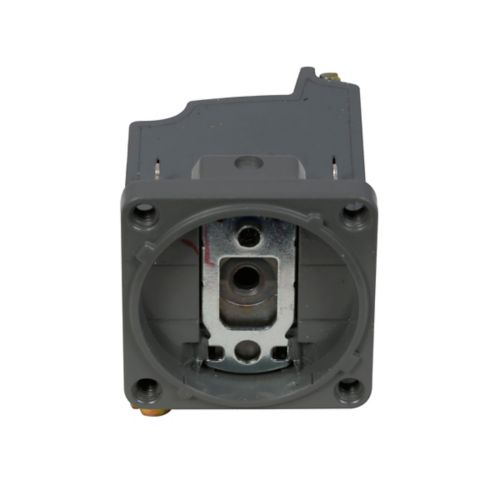

The Eaton E50SAN is a heavy duty plug-in limit switch with a unitized body. This single-pole switch features a neon indicator light and 1NO-1NC contact configuration. Designed for use with the E50 series, it offers exceptional chemical resistance to coolants, cleansing agents, and hydraulic fluids. It is suitable for automation, logic control, and wastewater systems.

• Neon indicator light with 120 Vac
• Contact rating of 10A at 12 Vac, 1A at 125 Vdc
• NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67 enclosure rating

Product Highlights

The EATON E50SAN limit switch offers high reliability and is suitable for heavy-duty industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50SAN
• Country of Origin: China

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch
• Catalog Number: E50SAN
• UPC: 782113290690
• Product Length/Depth: 3.14 in
• Product Height: 1.73 in
• Product Width: 1.54 in
• Product Weight: 0.41 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Recognized CSA Certified UL Listed
• Product Type: Heavy duty plug-in limit switch
• Type: 1-Pole Heavy Duty Plug-In
• Contact Rating: 10 A at 12 VAC, 1 A at 125 VDC
• Cable type: SOOW-A
• Indicator type: Neon light
• Enclosure material: Die cast zinc
• Contact configuration: 1 NO-1 NC
• Series: E50 heavy duty plug in E50
• Operating temperature - max: 250 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Light unit voltage: 120 Vac
• Maximum AC current: 10 A
• Maximum DC current: 1 A
• Number of poles: Single-pole
• Brand: Eaton - Cutler Hammer
• Amperage: 10A
• Voltage: 120V
• Poles: 1
• Mounting Type: Plug-In
• Nema Rating: NEMA 1/3/3S/4/4X/6/6P/13
• Duty Rating: Heavy Duty
• Mpn: E50SAN
• Gtin: 00782113290690
• UNSPSC: 39122213
• Material: Die Cast Zinc
• Application: Water and Wastewater Systems, Automation and Logic Control Equipment Applications
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Connection Type: 5 Pin Receptacle
• Enclosure: NEMA 1/3/3S/4/4X/6/6P/13, IP67
• Temperature Rating: -40 to 250
• Operating Temperature: -40 to 250 Deg F
• Dimensions: 3.14 in L x 1.54 in W x 1.73 in H
• Actuator/Head Type: Body Only
• Indicating Light Type: 120 Volt AC Neon
• Suitable For Use With: E50 Series Heavy Duty Plug-In Limit Switch
• For Use With: Eaton Cutler Hammer E50 Limit Switches
• Product Range: E50 Series
• SVHC: No SVHC (17-Dec-2015)
• Fuse Type: Switch
• Features: Heavy Duty
• Country of Origin: China
• Category: Business & Industrial
• UNSPSC Code: 39120000
• Manufacturer Part Number: E50SAN
• Unit of Measure: EA
• Accessory Type: Contact Block
• For Use With/Related Products: E50 Series
• Packaging: Bulk
• Manufacturer Standard Lead Time: 20 Weeks
