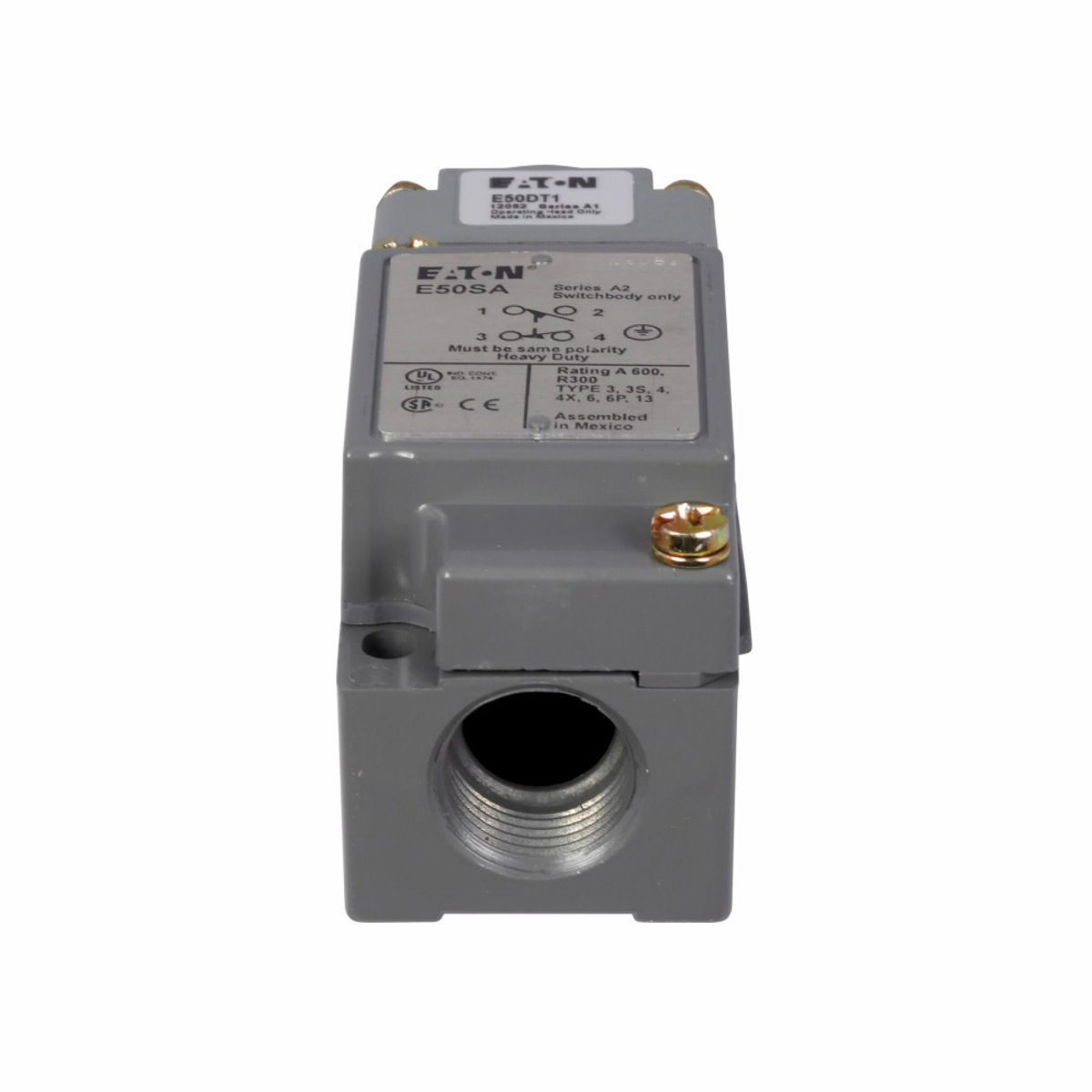

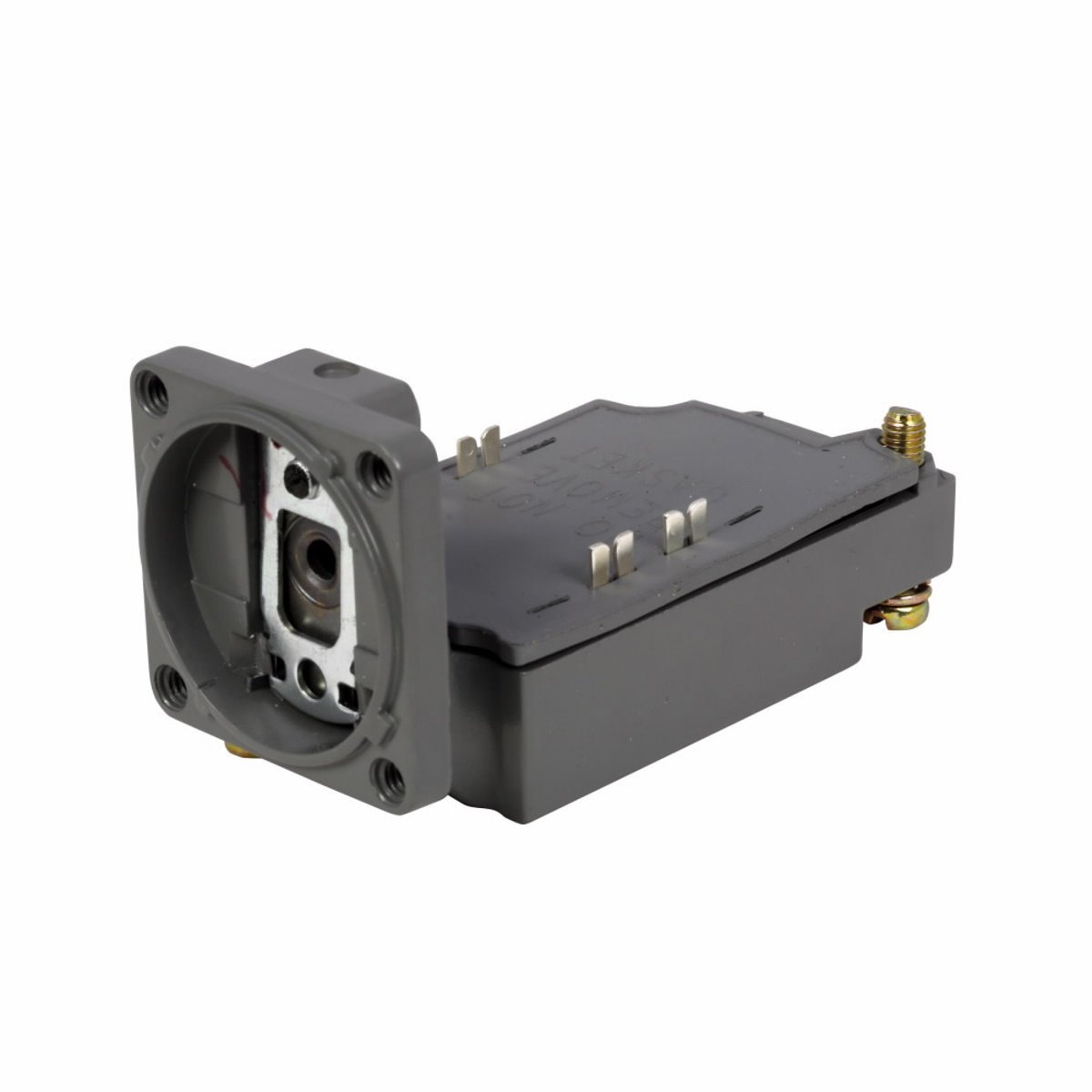

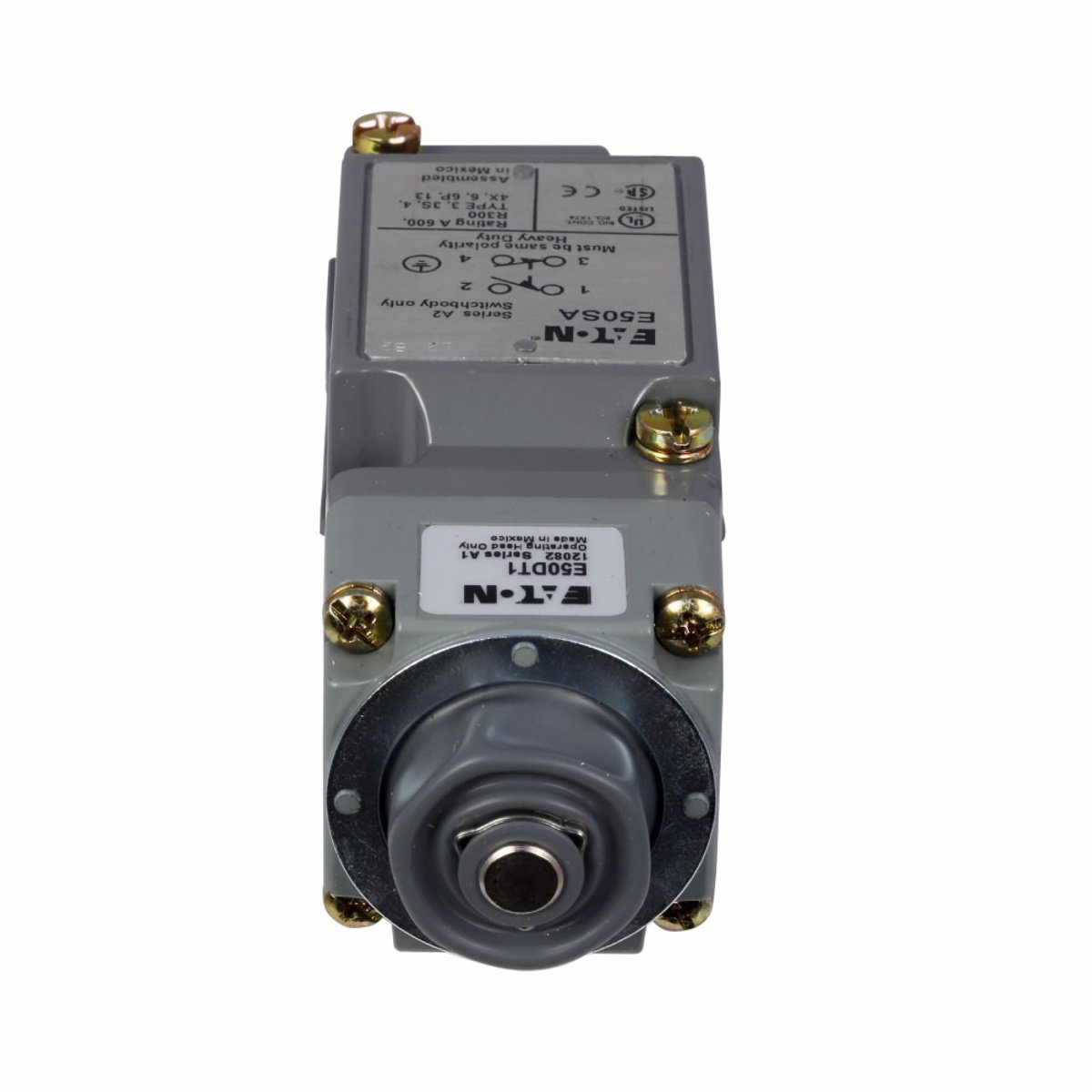

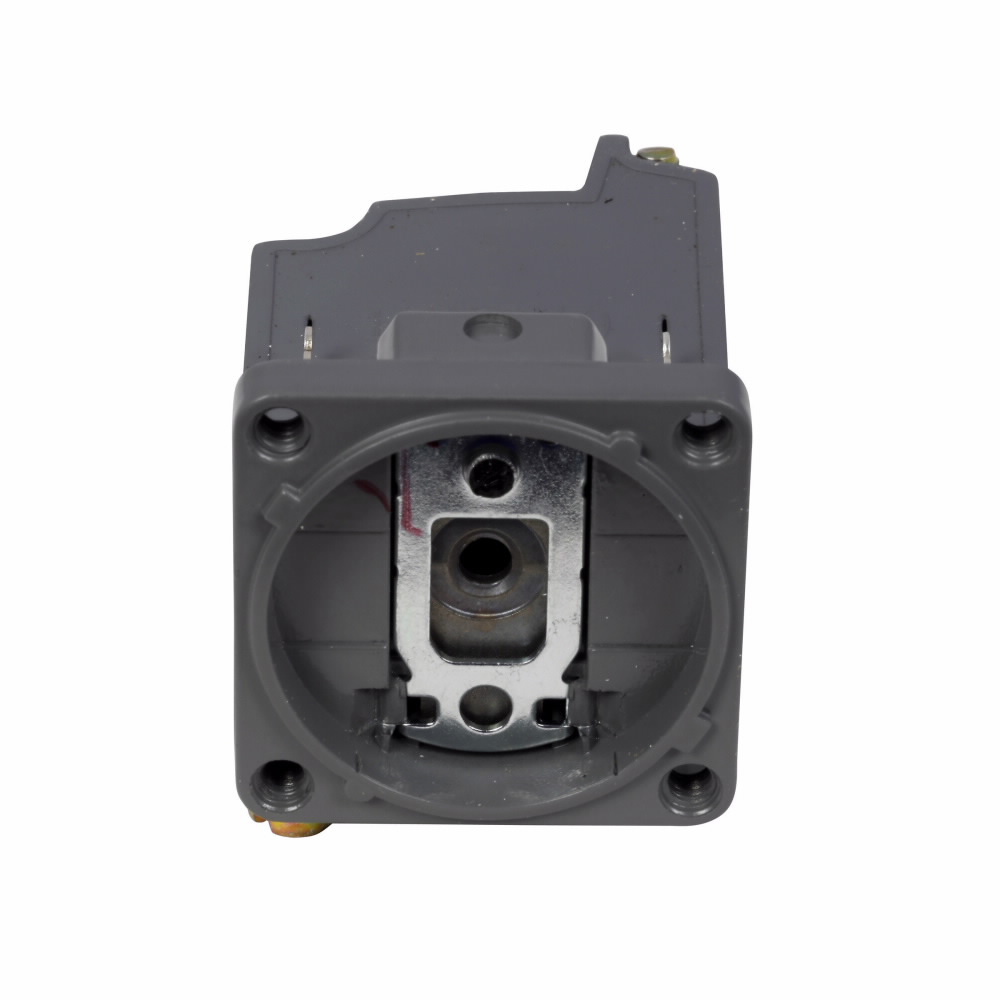

Eaton E50SA Heavy Duty Plug-In Limit Switch Body 10A at 12 Vac 1NO 1NC

Product Description

The Eaton E50SA is a heavy-duty plug-in limit switch body designed for reliable operation in industrial environments. This limit switch features a single-pole configuration with one normally open and one normally closed contact. It can handle up to ten amps at twelve volts AC and one amp at one hundred twenty-five volts DC. Built from die-cast zinc, it is suitable for various applications including electrical assemblies and water systems.

• Contact Rating: 10A at 12 VAC, 1A at 125 VDC
• Enclosure Ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67
• Operating Temperature Range: -40 to 250 degrees Fahrenheit (-40 to 121 degrees Celsius)

Product Highlights

This switch provides high reliability and low maintenance needs with easy installation options. It meets stringent safety standards recognized by CSA and UL.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer
• Standard: UL Recognized, CSA Certified, RoHS Compliant

Technical Specifications

• Catalog Number: E50SA
• Material: Die-Cast Zinc
• Voltage: 600 AC
• Amperage: 10 Amps at 12 VAC, 1 Amp at 125 VDC
• Number of Poles: 1 Pole
• Connection Type: 5-Pin Receptacle
• Contact Configuration: 1 NO, 1 NC
• Country of Origin: Mexico
