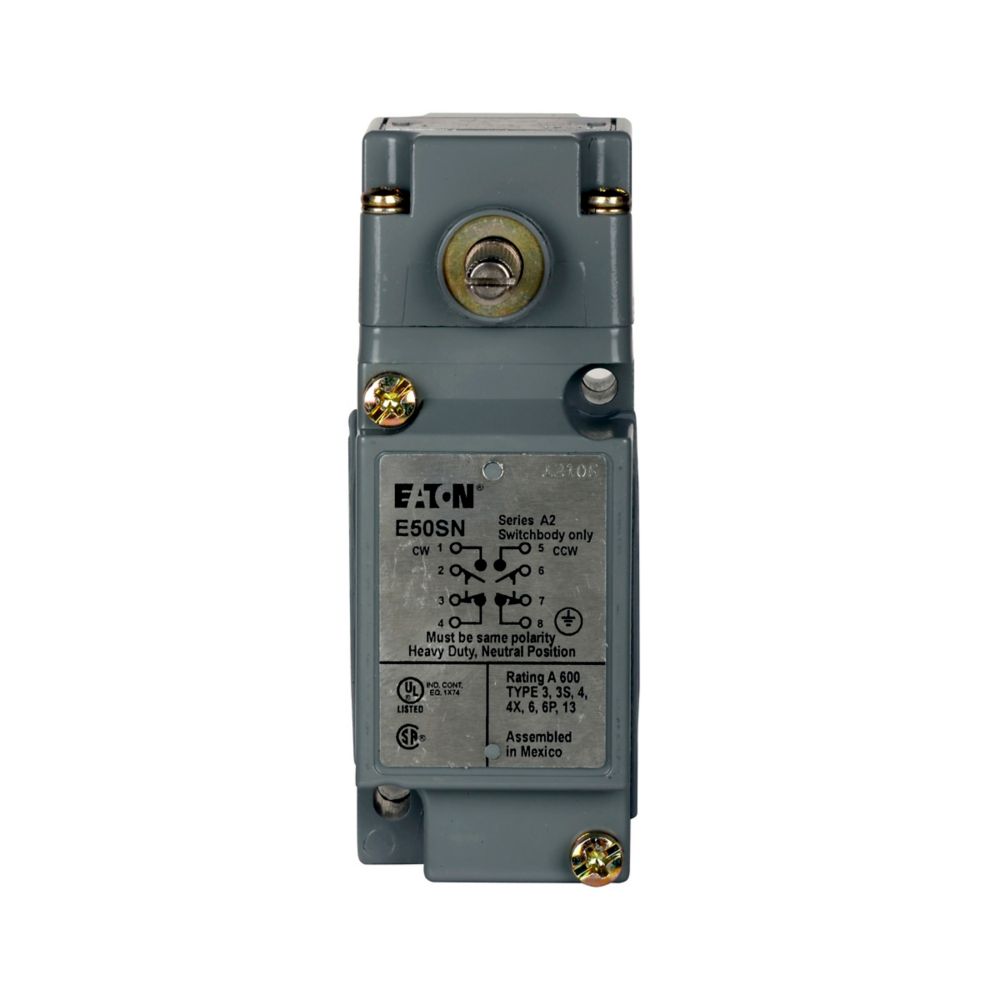

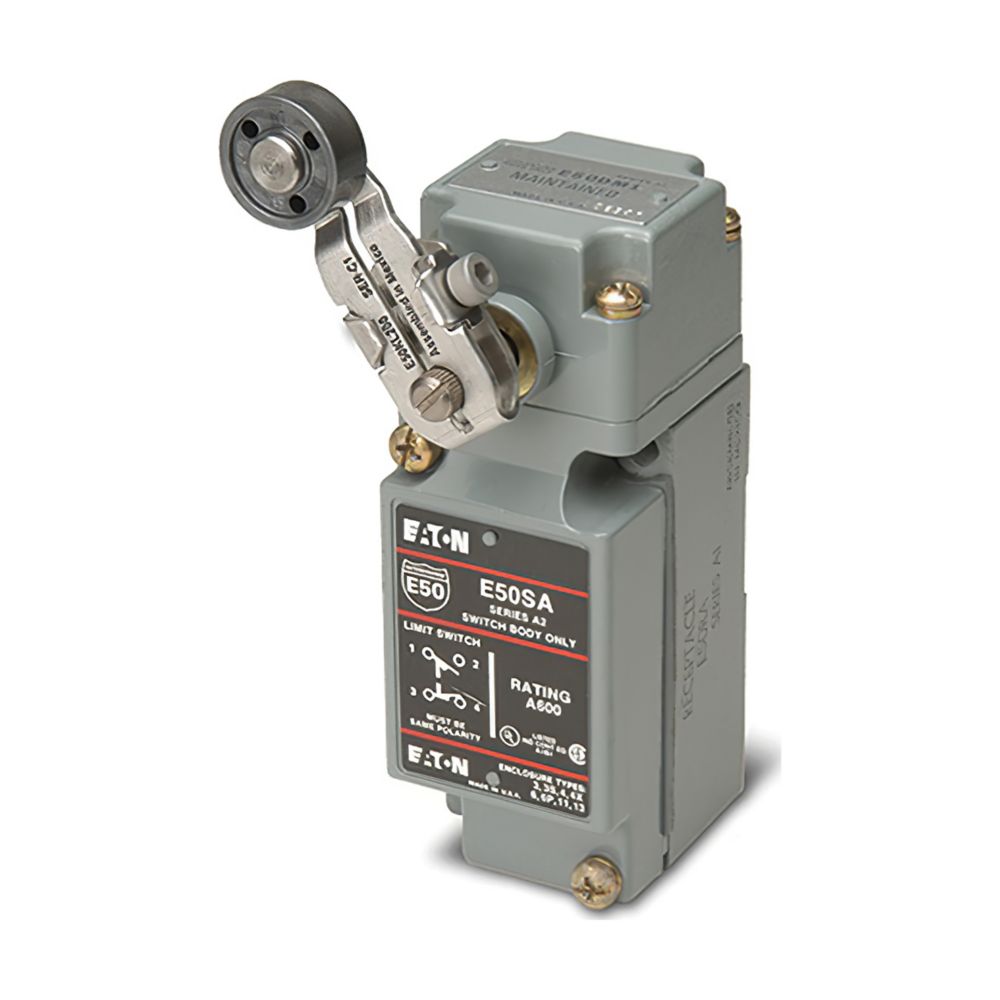

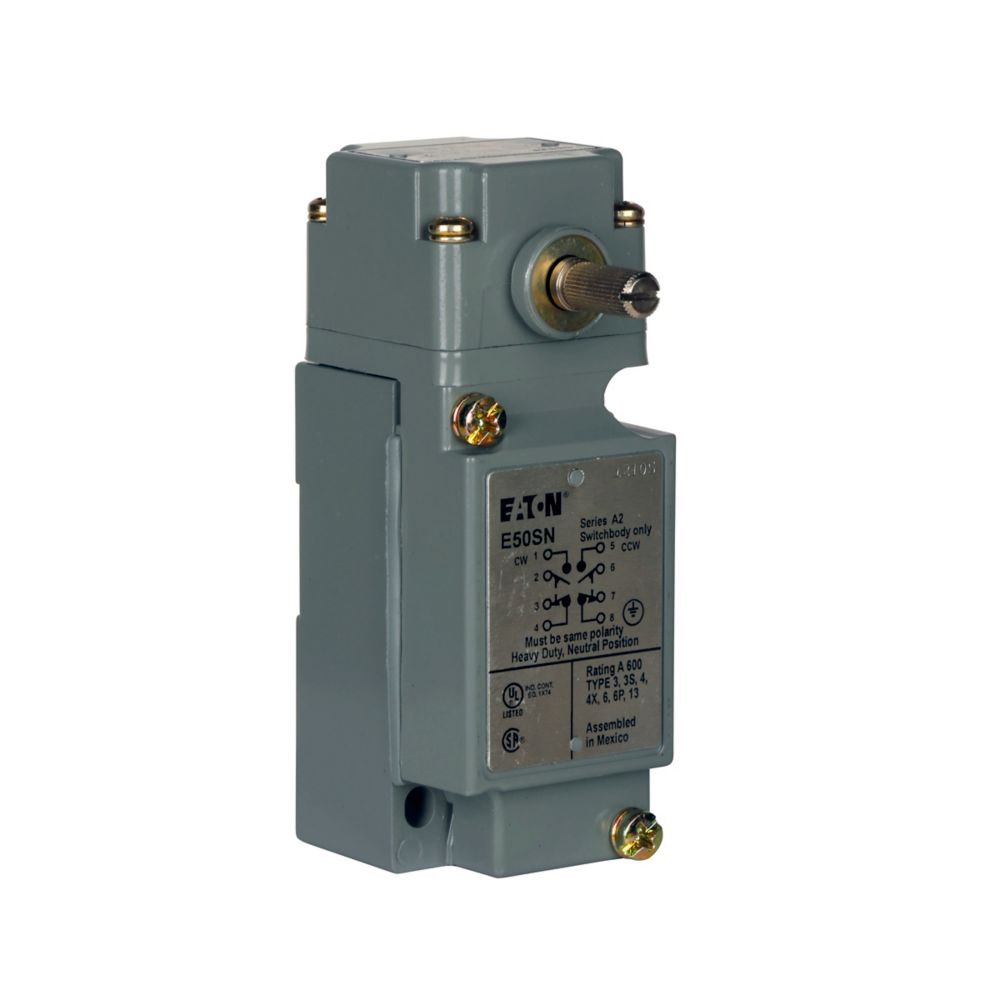

Eaton E50NN2 E50 Nema Heavy Duty Plug-in Limit Switch

Product Description

The Eaton E50NN2 is an E50 NEMA heavy-duty plug-in limit switch. It features a side rotary, neutral position with 15-degree travel, and a 2NO-2NC contact configuration. The switch is designed for durability in harsh industrial environments. It is suitable for machine tool, automotive, and wastewater treatment applications.

• Modular, plug-in component provides application flexibility and reduced downtime
• Manufactured to withstand physical and environmental abuse
• Chemical-resistant FKM gasket, seal and boot are standard

Product Highlights

This heavy-duty limit switch offers reliable performance and easy installation for demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50NN2

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch
• Catalog Number: E50NN2
• UPC: 782113453989
• Product Length/Depth: 4.22 in
• Product Height: 2.25 in
• Product Width: 1.54 in
• Product Weight: 1.1 lb
• Warranty: 1 year
• Compliances: CE Marked RoHS Compliant
• Certifications: UL Listed CSA Certified
• Product Type: Heavy duty plug-in limit switch
• Type: Limit Switch
• Contact Rating: 10 A at 12 Vac, 1 A at 125 Vdc
• Cable type: SOOW-A
• Enclosure material: Die cast zinc
• Connection Type: Screw Terminal
• Contact Configuration: 2 NO-2 NC
• Series: E50 heavy duty plug in E50
• Switch type: Neutral position 15 ° travel Side rotary Neutral position
• Operating temperature - max: 201 °F
• Operating temperature - min: 14 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Maximum AC current: 10 A
• Maximum DC current: 1 A
• Manufacturer: Eaton Cutler-Hammer
• Family: E Series
• Category: Switches
• Dimensions (HxWxD): 3 x 2.5 x 2
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Voltage Rating: 240 VAC/250 VDC
• Amperage Rating: 1/10 A
• Actuator: Rotary
• Action: Snap
• Material: Die Cast Zinc
• Mounting Type: Plug-In
• Operating Temperature: 14 to 201 deg F
• Size: 3 x 2-1/2 x 2 in
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• IP/NEMA Rating: NEMA 1, IP67, NEMA 4X, NEMA 4
• Length: 4 in
