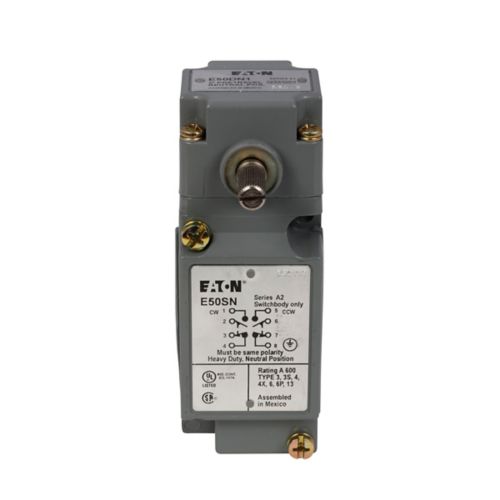

Eaton E50NN1 NEMA Heavy Duty Plug-In Limit Switch

Product Description

The Eaton E50NN1 is a NEMA heavy-duty plug-in limit switch. This limit switch features a side rotary, neutral position, and 5-degree travel. It is rated at 10A@240Vac and 1A@250Vdc, with mechanical endurance of 10M cycles and electrical endurance of 100k cycles.

• Die cast zinc enclosure material
• Screw terminal connection
• NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67 environmental rating

Product Highlights

This heavy-duty limit switch is suitable for industrial applications requiring a robust and reliable switching solution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50NN1
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch
• Catalog Number: E50NN1
• UPC: 782113290706
• Product Length/Depth: 4.22 in
• Product Height: 2.25 in
• Product Width: 1.54 in
• Product Weight: 1.1 lb
• Compliances: CE Marked RoHS Compliant
• Certifications: CSA Certified UL Listed
• Product Type: Heavy duty plug-in limit switch
• Type: Limit Switch
• Contact Rating: 10A at 12 Vac, 1A at 125 Vdc
• Cable type: SOOW-A
• Enclosure material: Die cast zinc
• Connection: Screw terminal
• Contact configuration: 2 NO-2 NC
• Series: E50 heavy duty plug in E50
• Switch type: Neutral position 5 travel Side rotary Neutral position
• Operating temperature - max: 201 F
• Operating temperature - min: 14 F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Maximum AC current: 10 A
• Maximum DC current: 1 A
• Limit Switch Actuator: Side Rotary
• Contact Voltage AC Max: 600V
• Operating Force Max: 1.8in-lb
• Product Range: E50 Series
• Contact Current DC Max: 1A
• Contact Voltage DC Max: 250V
• SVHC: No SVHC (17-Dec-2015)
• Action: Momentary/Momentary
• Actuator Length: 1.54 in
• Actuator Location: Side
• Actuator Style: Rotary
• Actuator Type: Lever-Rod
• Body Configuration: Plug-In
• Body Depth: 1.78 in
• Body Height: 3.13 in
• Body Material: Zinc
• Body Width: 1.54 in
• Boot Sealed Actuator: No Boot
• Contact Form: 2NO/2NC
• DC Contact Rating: 1 A @ 125
• Differential Travel: 90
• Directional Movement: CCW/CW
• Electrical Connection: Screw
• IP Rating: IP67
• Includes Actuator: No Actuator Included
• Lamp Type: No Lamp Module Included
• Mounting Hole Diameter: 0.2 in
• Mounting Hole Horizontal Center to Center Distance: 59 mm
• Mounting Hole Vertical Center to Center Distance: 29 mm
• Mounting Style: Surface
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Number of Mounting Holes: 2
• Operating Force - Maximum: 5 lbf
• Operating Force - Minimum: 2.5 ozf
• Operating Torque - Maximum: 1.8 in-lb
• Overall Depth: 4.22 in
• Overall Height: 2.46 in
• Overall Width: 1.54 in
• Overtravel: 90
• Pretravel: 5
• Reset Travel: 2
• Roller Position: Side
• Standards: CSA; UL Listed
• Total Travel: 90
• UNSPSC: 39121509
• Contact Current AC Max: 60A
