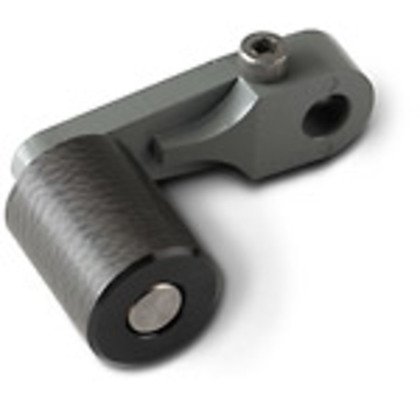

Eaton E50KL552 Standard Ball Bearing Roller Heavy Duty Plug-In Limit Switch Operator, 2 in L

Product Description

The EATON E50KL552 is a standard ball bearing roller heavy-duty plug-in limit switch operator. It is designed for use with EATON E50 plug-in and 6P+ limit switches, as well as 10316 rotary type limit switches. The stainless steel lever is 2 inches long and the roller is 0.69 inches in diameter and 1/4 inch wide.

• Used with side rotary
• 2 inch long stainless steel lever
• 0.69 inch diameter, 1/4 inch wide stainless steel roller

Product Highlights

The EATON E50KL552 is a heavy-duty limit switch operator with a standard ball bearing roller, suitable for industrial facilities and factories.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL552
• Country of Origin: China

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL552
• UPC: 782113322186
• Product Length/Depth: 2.72 in
• Product Height: 0.61 in
• Product Width: 0.69 in
• Product Weight: 0.05 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Special features: Used with Used with side rotary
• Type: Standard Ball Bearing Roller Heavy Duty Plug-In
• Cable type: SOOW-A
• Actuator: Standard ball bearing roller
• Torque rating: 1.1 in-oz min return
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Roller: Steel ball bearing Lever: Stainless steel
• UNSPSC: 39122221
• Application: Industrial Facilities and Factories Applications
• Roller Width: 1/4
• Roller Diameter: 0.69
• Roller Material: Stainless Steel
• Lever Material: Stainless Steel
• Lever Length/Radius: 2 Inch
• Country of Origin: China
• Knockout Diameter: 1/2 in
• Mounting: Bracket, Screw On, Nail On
• Gangs: 1
• Depth: 2 1/2 in
