Eaton E50KL551 Operating Lever 3 in

Product Description

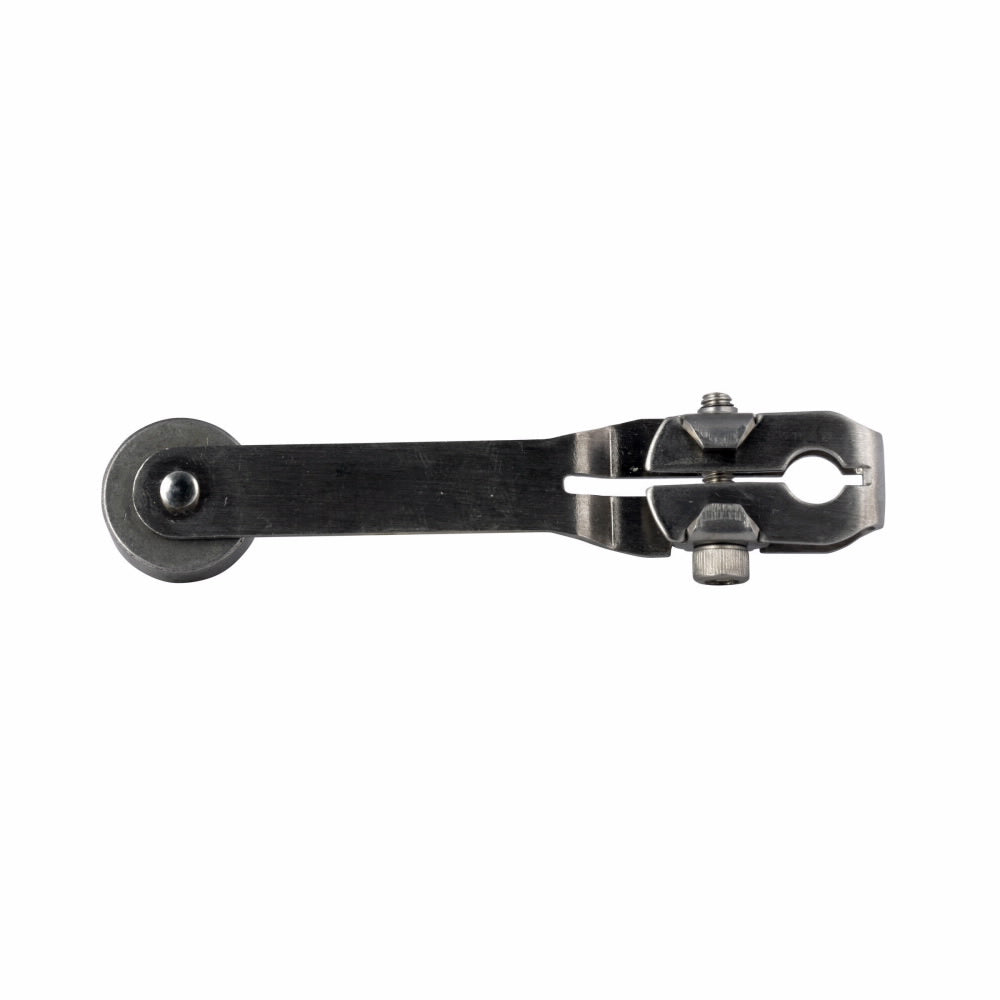

The EATON E50KL551 is a limit switch operator with a standard roller designed for heavy-duty plug-in use. It features a 3-inch stainless steel arm and a metal roller with a 3/4 inch diameter and 0.32 inch width. Suitable for industrial facilities and factories.

• 3 in stainless steel arm
• Metal roller 0.75 inch diameter and 0.32 inch width
• Suitable for industrial facilities and factories applications

Product Highlights

This heavy-duty plug-in limit switch operator is designed for industrial applications. It offers durability and reliability in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL551

Technical Specifications

• Application: Industrial Facilities and Factories Applications
• Arm Length: 3 in
• Arm Material: Stainless Steel
• Includes: Bolt and Nut
• Manufacturer Part Number: E50KL551
• Roller Diameter: 3/4 in
• Roller Material: Metal
• Roller Position: Front
• Roller Width: 0.32 in
• Series: E50
• Standards/Approvals: CE Marking|CSA Certified|UL Listed|RoHS Compliant
• Type: Standard Roller Heavy Duty Plug-In
• Product Length/Depth: 3.72 in
• Product Height: 0.61 in
• Product Width: 0.75 in
• Product Weight: 0.15 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Cable type: SOOW-A
• Actuator: Standard roller
• Torque rating: 2.5 in-oz min return
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Metal Roller: Metal Lever: Stainless steel
• UPC Code: 782113302225
• Primary Type: Limit Actuator
• For Use With: Side Rotary
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• Manufacturer: Eaton
• Component: Operator
• (Instrument-Sensor) Temperature Range: 10 °F - 200 °F
• (Instrument-Sensor) Actuator: Standard Ball Bearing Roller
• Length: 3 in
• Diameter: 0.750 in
• Mounting: Device
