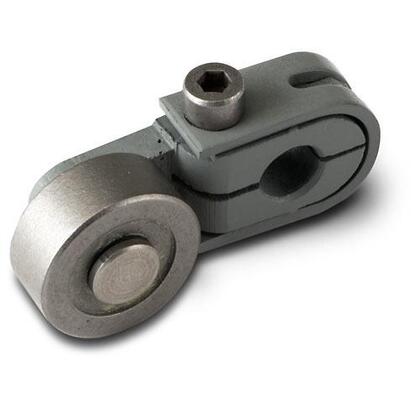

Eaton E50KL549 Standard Roller Limit Switch Operator 2 inches Metal Roller

Product Description

The Eaton E50KL549 standard roller limit switch operator is for use with side rotary switches. The stainless steel lever features a metal roller with a minimum return torque rating of 1.50 in-oz. It is suitable for use in environments with NEMA ratings 1, 3, 3S, 4, 4X, 6, 6P, and 13, and IP67.

• 2.72 in L x 0.75 in W x 0.61 in H product dimension
• Standard roller actuator
• NEMA 1/3/3S/4/4X/6/6P/13/IP67 enclosure rating

Product Highlights

The Eaton E50KL549 limit switch operator features a standard roller, stainless steel arm, and is used with side rotary switches.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL549

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL549
• UPC: 782113302201
• Product Length/Depth: 2.72 in
• Product Height: 0.61 in
• Product Width: 0.75 in
• Product Weight: 0.15 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Type: Limit Switch, Fixed Roller, Operator
• Cable type: SOOW-A
• Actuator: Roller lever
• Torque rating: 1.50 in-oz min return
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 °F
• Operating temperature - min: 10 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Metal Roller: Metal Lever: Stainless steel
• Brand: Eaton
• MPN: E50KL549
• Length: 2 in
• Mounting: Device
• NEMA Rating: NEMA 1, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 3S
• Approvals: CE, CSA, UL
• Net Weight: 0.1 lbs
• Gross Weight: 0.15 lbs
• Roller Diameter: 3/4 in
• Roller Material: Metallic
• Roller Width: 0.32 in
• Arm Length: 2 in
• Arm Material: Stainless Steel
• Diameter: 0.750 in
