Product Description

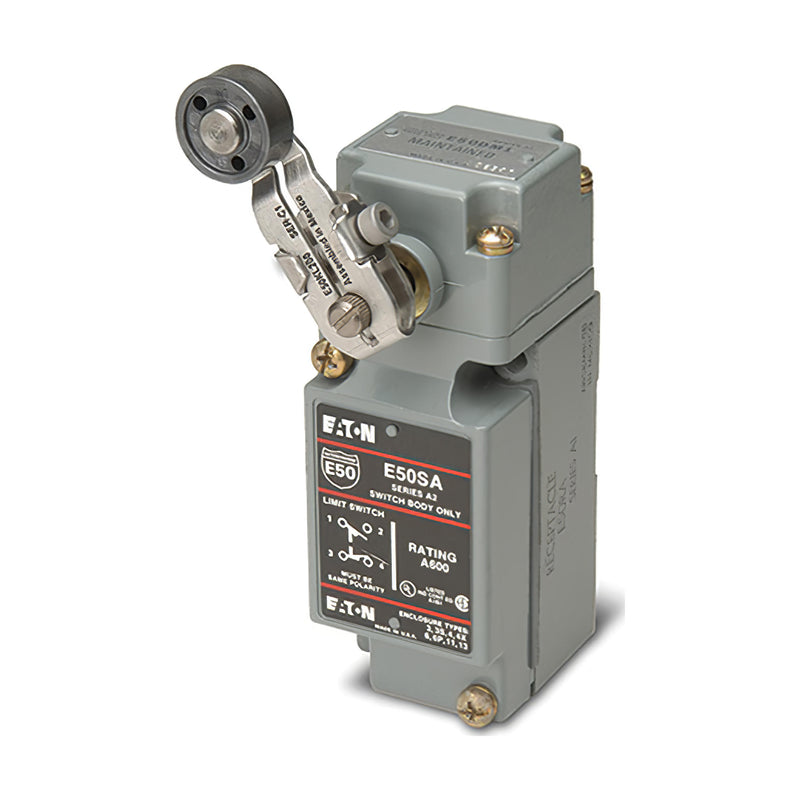

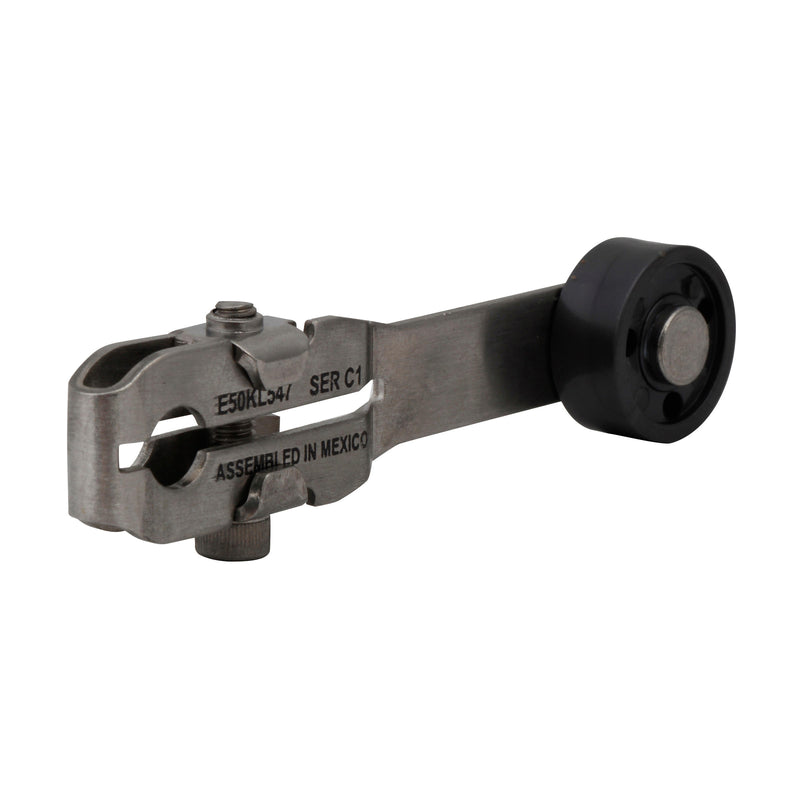

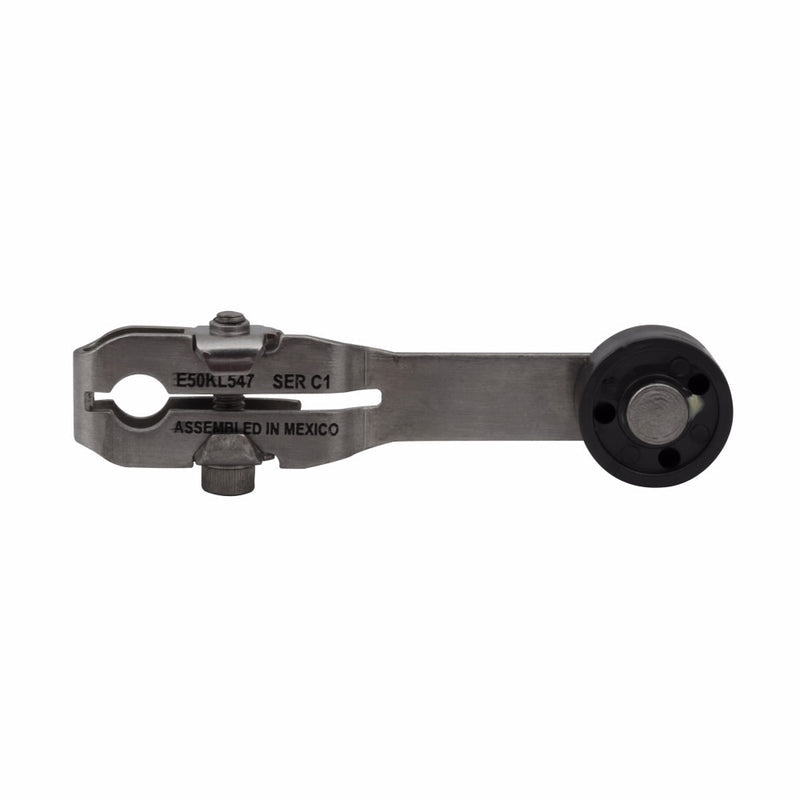

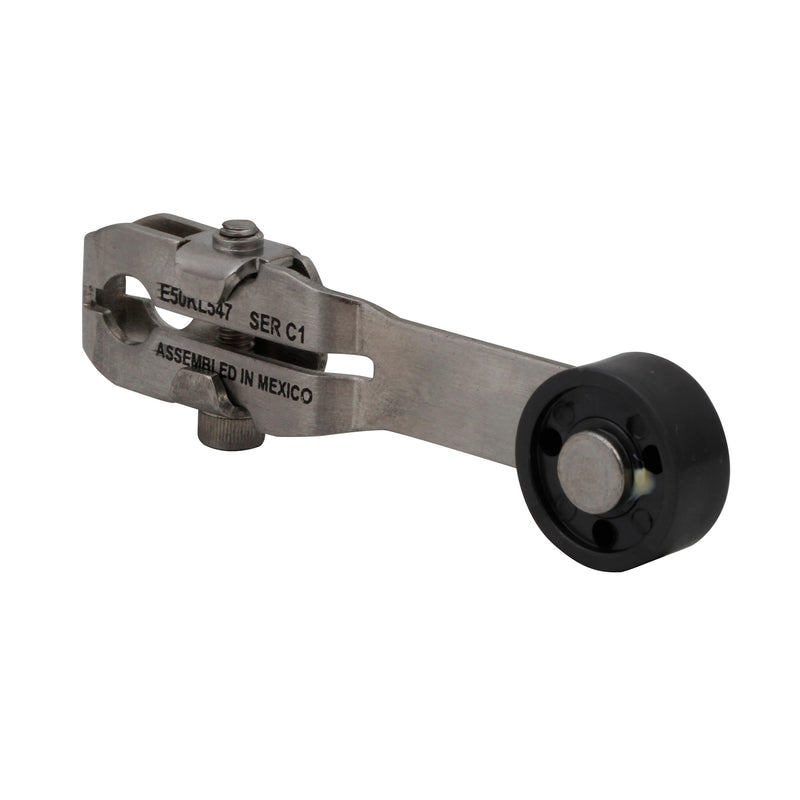

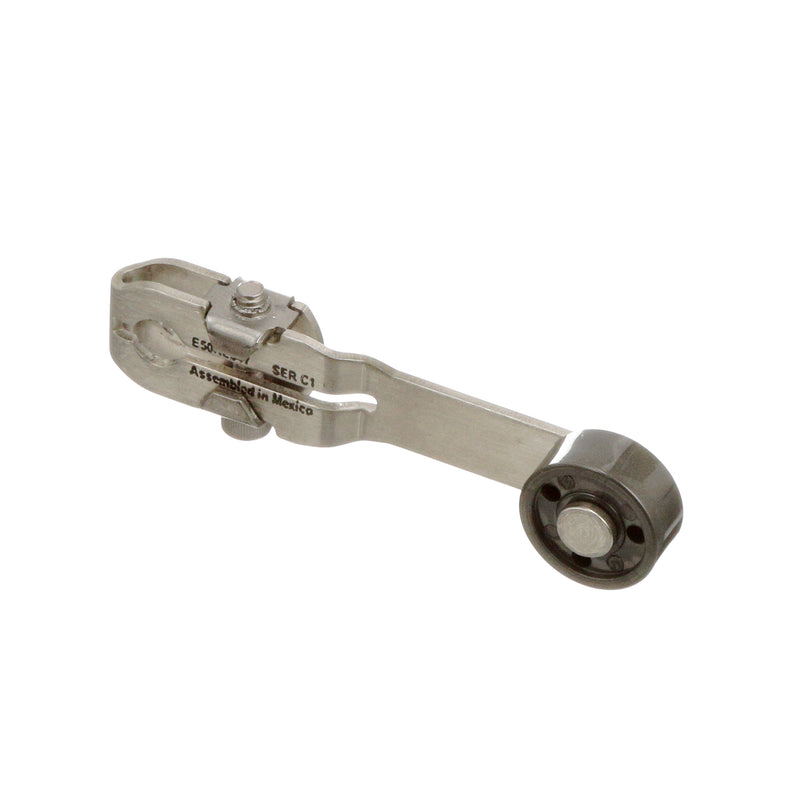

The EATON E50KL547 is a NEMA heavy-duty plug-in limit switch operator. Designed for use with side rotary switches, this limit switch features a roller on the reverse side. Constructed with a stainless steel lever and a Nylatron roller, it ensures durability and reliable performance in demanding industrial environments.
- Heavy duty plug-in limit switch accessory
- Used with side rotary
- Roller on reverse side
Product Highlights
This limit switch operator is ideal for motor control applications, offering modular components for easy maintenance and replacement set.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E50KL547
-
Country of Origin: Mexico
Technical Specifications
-
Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
-
Catalog Number: E50KL547
-
UPC: 782113302096
-
Product Length/Depth: 3.22 in
-
Product Height: 0.61 in
-
Product Width: 0.75 in
-
Product Weight: 0.05 lb
-
Warranty: 1 year
-
Compliances: RoHS Compliant CE Marked
-
Certifications: UL Listed CSA Certified CE
-
Product Type: Heavy duty plug-in limit switch accessory
-
Used with: Used with side rotary
-
Special features: Roller on reverse side
-
Type: Operating Lever
-
Cable type: SOOW-A
-
Actuator Type: Roller lever
-
Torque rating: 1 in-oz min return
-
Series: E50
-
Switch type: Lever for side rotary switches
-
Operating temperature - max: 200 °F
-
Operating temperature - min: 10 °F
-
Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
-
Material: Nylatron Roller: Nylatron Lever: Stainless steel
-
Mounting Type: Device
-
Approval: CE, UL, CSA
-
Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
-
Length (in): 3.22
-
Width (in): 0.75
-
Height (in): 0.61
-
For Use With: Side Rotary Switches
-
Standards: NEMA, RoHS
-
Temperature Rating: 10 to 200 °F
-
Duty Rating: Heavy Duty
-
Gtin: 00782113302096
-
Diameter: 0.750 in
-
Length: 2 1/2 in
-
Mounting: Front roller lever
-
Manufacturer: Cutler Hammer
-
Brand: Cutler Hammer
-
Category: Motor Control
-
Item Subcategory: Motor Control Part And Accessory
-
Section: Limit Switch
-
Family: E50 Series
-
Amperage: 10A
-
Voltage: 600V
-
Phase: 3
-
Lever Material: Cast aluminum
-
Roller Material: Nylatron
-
Roller Diameter: 0.75 inch
-
NEMA Ratings: 1, 2, 3S, 4X, 6P, 13
-
Certification: UL Listed,CE,CSA Certified,RoHS Compliant
-
Dimensions: 3.22 in x 0.61 in x 0.75 in (Length/Depth x Height x Width)
