Eaton E50KL27 E50 NEMA heavy duty plug-in limit switch operator

Product Description

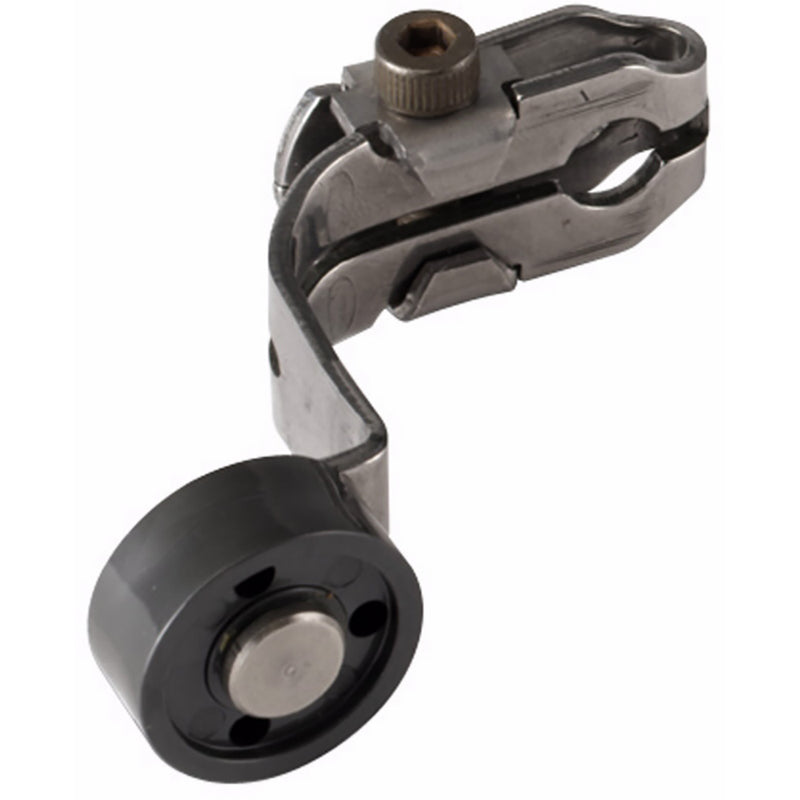

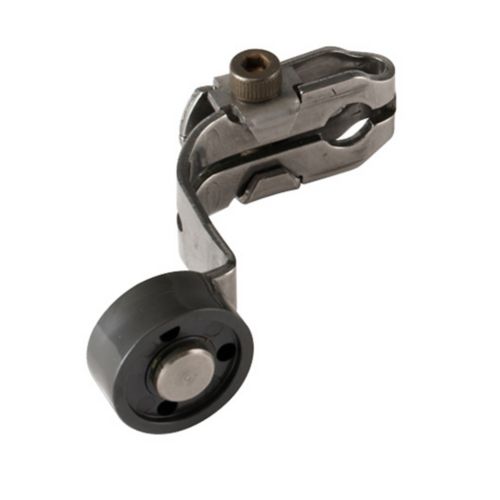

The Eaton E50KL27 is an E50 NEMA heavy-duty plug-in limit switch operator with a stainless steel lever designed for side rotary switches and a nylatron roller. This limit switch operator features an offset outboard roller and robust construction with a zinc die-cast enclosure and Viton gaskets for chemical resistance.

• Offset outboard roller
• Stainless steel lever
• Side rotary switch design

Product Highlights

The EATON E50KL27 limit switch operator is suitable for heavy-duty industrial applications and supports mounting dimensions compatible with U.S. and DIN standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL27

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL27
• UPC: 782113290874
• Product Length/Depth: 0.69 in
• Product Height: 2.3 in
• Product Width: 1.5 in
• Product Weight: 0.06 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Catalog Notes: Lever length is from the operating shaft axis to the roller axis
• Product Type: Heavy duty plug-in limit switch accessory
• Special features: Offset outboard roller
• Type: Operating Lever
• Cable type: SOOW-A
• Enclosure material: Roller: nylatron Lever: stainless steel
• Actuator Type: Roller lever
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 201 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
• Material: Roller: Nylatron Lever: Stainless steel
• Brand: Eaton
• Approval: CE, UL, CSA
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 0.69
• Width (in): 1.5
• Height (in): 2.3
• For Use With: Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: -40 to 201 °F
• Duty Rating: Heavy Duty
• Mpn: E50KL27
• Gtin: 00782113290874
• Category: Automation
• Item Subcategory: Automation Switch
• Section: Limit Switch
• Primary brand: Eaton
• Order code / Manufacturer SKU: E50KL27
• Manufacturer product status: Commercialized
• Manufacturer description: E50 Series Limit Switch Operator - Lever for Side Rotary Switch - Lever Stainless Steel - Roller Nylatron enclosure
