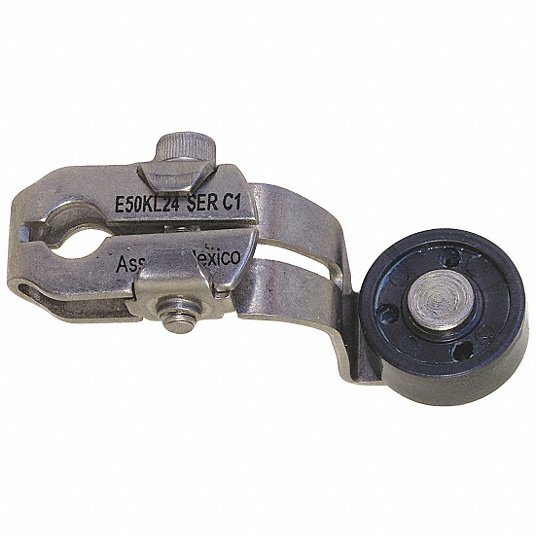

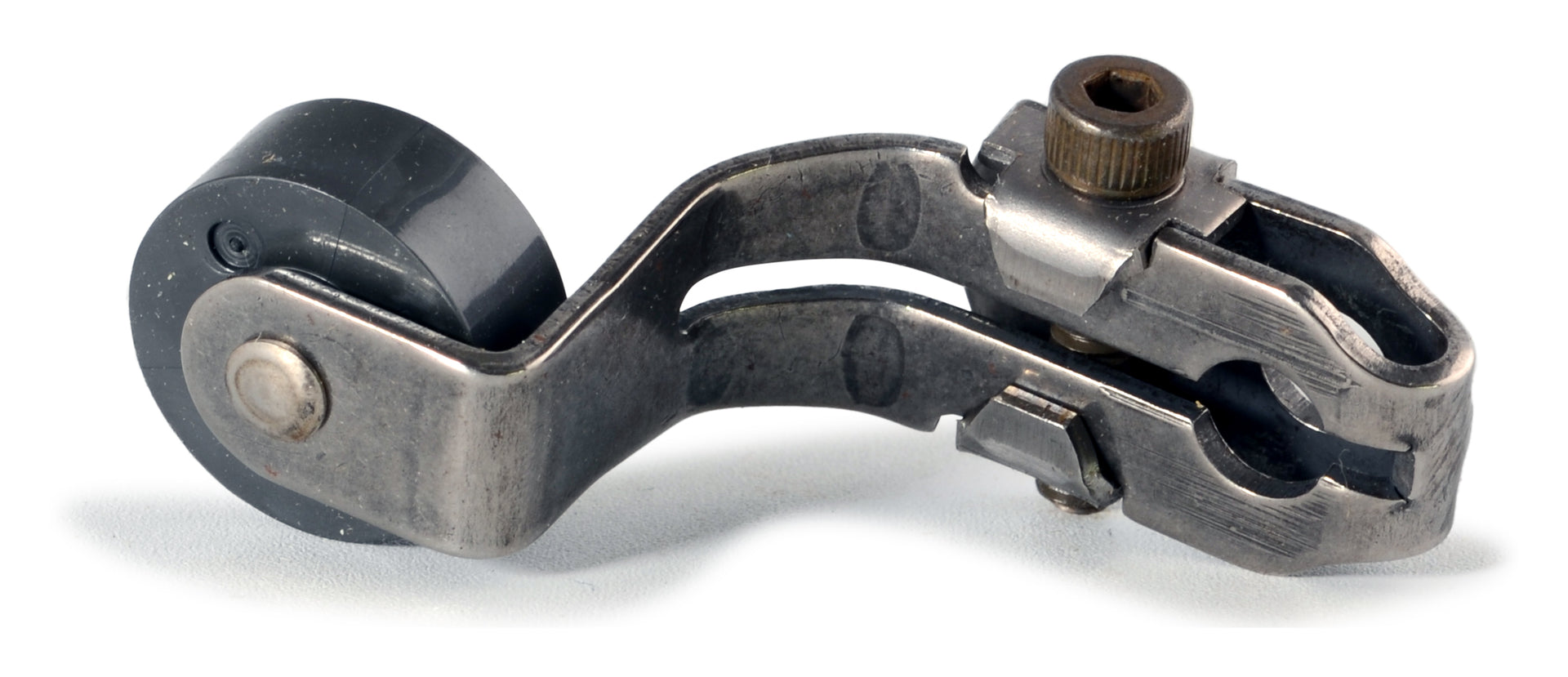

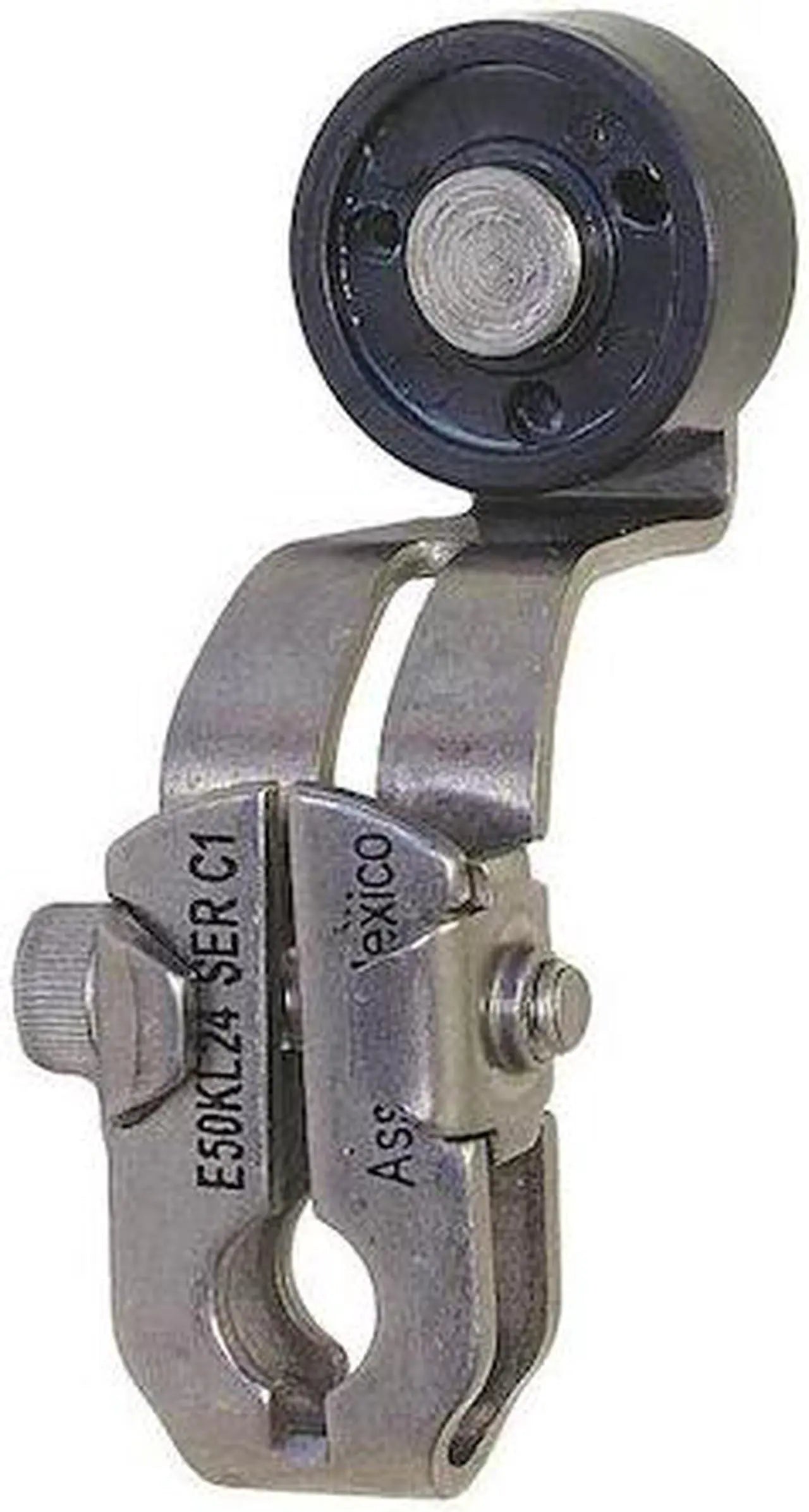

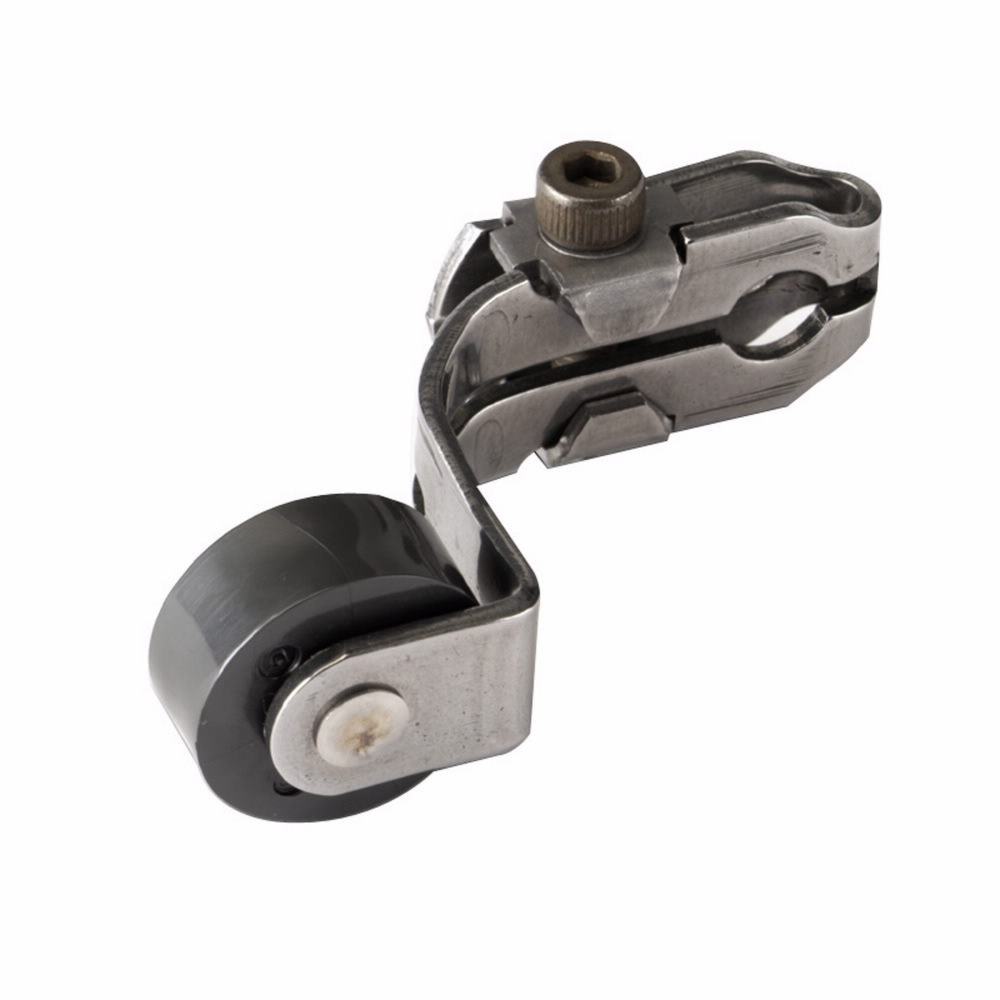

Eaton E50KL24 E50 Operating Lever

Product Description

The Eaton E50KL24 is an E50 operating lever designed as a limit switch accessory. It features an offset inboard roller and is used with side rotary switches. Constructed from stainless steel, this lever is suitable for heavy-duty plug-in limit switch applications.

• Limit Switch Lever
• Offset Inboard Roller
• Used with Side Rotary

Product Highlights

The EATON E50KL24 operating lever is a stainless steel accessory for limit switches, featuring an offset inboard roller.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL24
• Country of Origin: Mexico

Technical Specifications

• Type: Accessory
• Brand: Eaton
• Height: 1.24 Inch
• Length: 2.21 Inch
• Weight: 0.06 lb
• Actuator: Offset Inboard Roller
• Material: Stainless Steel
• Operating Temperature: 10 To 200 degrees F
• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL24
• UPC: 782113290867
• Product Length/Depth: 2.21 in
• Product Height: 1.24 in
• Product Width: 0.75 in
• Product Weight: 0.06 lb
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Product Type: Heavy duty plug-in limit switch accessory
• Used with: Used with side rotary
• Special features: Offset inboard roller
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 200 . The Eaton E50KL24 is an E50 operating lever designed as a limit switch accessory. It features an offset inboard roller and is used with side rotary switches. Constructed from stainless steel, this lever is suitable for heavy-duty plug-in limit switch applications.
