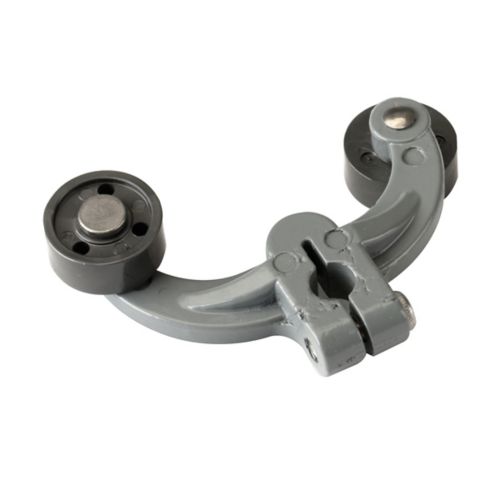

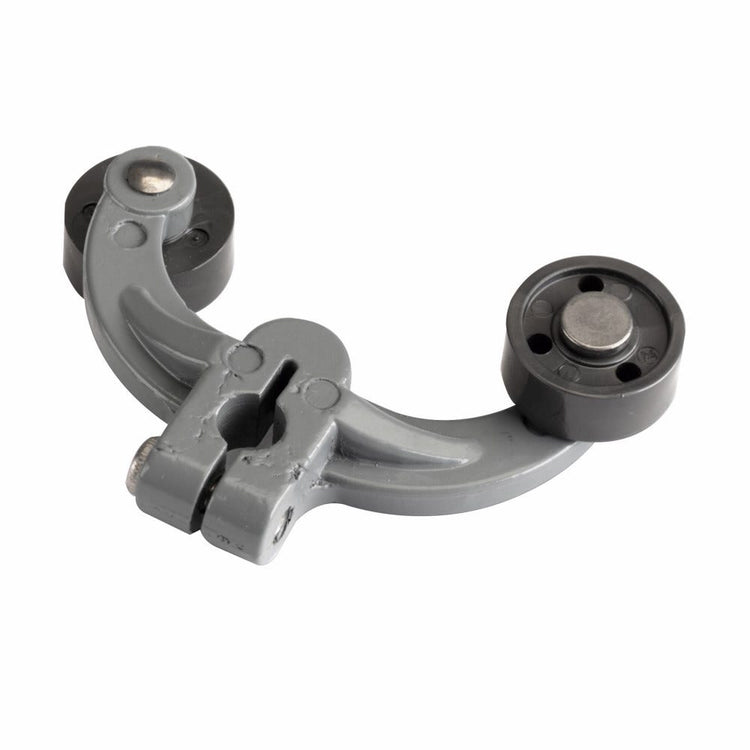

Eaton E50KL203 nema heavy duty plug-in limit switch operator

Product Description

The Eaton E50KL203 NEMA heavy-duty plug-in limit switch operator is a lever designed for use with side rotary switches. It features a fork lever and is suitable for heavy-duty industrial applications. The switch is designed to withstand harsh environments and is chemical resistant. It reduces maintenance and inventory costs and simplifies installation.

• Fork lever
• Suitable for heavy-duty industrial applications
• Chemical-resistant Viton gaskets, seals, and boots are standard

Product Highlights

The Eaton E50KL203 is a reliable choice for demanding industrial settings, offering design flexibility and easy retrofitting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50KL203

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch operator
• Catalog Number: E50KL203
• UPC: 782113298511
• Product Length/Depth: 1.9 in
• Product Height: 2.87 in
• Product Width: 0.93 in
• Product Weight: 0.06 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified CE
• Catalog Notes: Lever length is from the operating shaft axis to the roller axis
• Product Type: Heavy duty plug-in limit switch accessory
• Special features: Fork lever
• Type: Operating Lever
• Cable type: SOOW-A
• Enclosure material: Lever: die Cast Zinc Roller: nylatron
• Series: E50
• Switch type: Lever for side rotary switches
• Operating temperature - max: 201 °F
• Operating temperature - min: -40 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
• Material: Roller: Nylatron Lever: Die cast Zinc
• Brand: Eaton/Cutler-Hammer
• Approval: CE, UL, CSA
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 1.9
• Width (in): 0.93
• Height (in): 2.87
• For Use With: Side Rotary Switches
• Standards: NEMA, RoHS
• Temperature Rating: -40 to 201 °F
• Duty Rating: Heavy Duty
• Mpn: E50KL203
• Upc: 782113298511
• Gtin: 00782113298511
• UNSPSC: 39122213
• Application: Industrial Facilities and Factories Applications
• Roller Width: 0.32
• Roller Diameter: 3/4
• Roller Material: Nylatron
• Lever Type: Fork
• Accessory Type: Actuator
• Lever Material: Stainless Steel
• Lever Length/Radius: 1.5 Inch
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• Manufacturer: Eaton
• Component: Operator
• (Instrument-Sensor) Actuator: Lever
• (Instrument-Sensor) Temperature Range: -40 °F - 201 °F
• (Instrument-Sensor) Enclosure Composition: Lever: Die Cast Zinc
