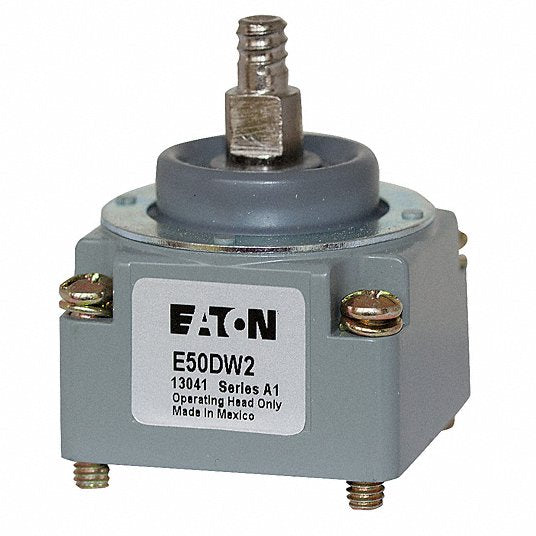

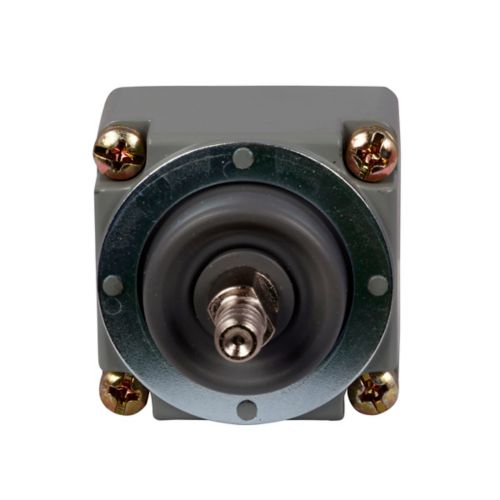

Eaton E50DW2 NEMA Heavy Duty Plug-in Limit Switch

Product Description

The Eaton E50DW2 NEMA heavy-duty plug-in limit switch features a wobble head and spring return. Designed for heavy-duty applications, it offers high strength and reliable performance. The zinc die-cast enclosure provides exceptional chemical resistance. It is suitable for use with the E50 series heavy-duty plug-in limit switch.

• Heavy duty high strength steel
• Wobble head, spring return actuator
• Exceptional chemical resistance

Product Highlights

This heavy-duty limit switch is ideal for industrial applications requiring a robust and reliable switching solution.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50DW2
• Country of Origin: China

Technical Specifications

• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch
• Catalog Number: E50DW2
• UPC: 782113453866
• Product Length/Depth: 1.85 in
• Product Height: 1.78 in
• Product Width: 1.54 in
• Product Weight: 0.11 lb
• Warranty: 1 year
• Compliances: RoHS Compliant CE Marked
• Certifications: CSA Certified UL Recognized UL Listed
• Product Type: Heavy duty plug-in limit switch
• Special features: Heavy duty high strength steel{I36514}
• Type: Operating Head
• Cable type: SOOW-A
• Enclosure material: Die cast zinc
• Actuator: Wobble head, spring return
• Series: E50
• Switch type: Wobble stick
• Operating temperature - max: 201 °F
• Operating temperature - min: 14 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• Material: Heavy duty high strength steel
• UNSPSC: 39122213
• Approval: UL, CSA, CE
• Application: Water and Wastewater Systems, Automation and Logic Control Equipment Applications
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Temperature Rating: 14 to 201
• Operating Temperature: 14 to 250 Deg F (Without Cable), 14 to 221 Deg F (With Cable)
• Reset Travel: 6 Degree
• Operation Type: Spring Return
• Operating Force: 0.67 N
• Operating Travel: 10 Degree
• Actuator/Head Type: Operating Head
• Suitable For Use With: E50 Limit Switch
• Brand: Eaton/Cutler-Hammer
• Amperage: 10
• Voltage: 600VAC
• Terminal Connection: Screw
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 1.85
• Width (in): 1.54
• Height (in): 1.78
• For Use With: E50SA Limit Switch
• Standards: NEMA, RoHS
• Duty Rating: Heavy Duty
• Actuator Type: Wobble Stick
• Action: Momentary
• Mpn: E50DW2
• Gtin: 782113453866
• Country of Origin: China
• Category: Business & Industrial Electrical Equipment & Supplies Switches Rocker Switches
• IP/NEMA Rating: NEMA 1, IP67, NEMA 4X, NEMA 4
• Actuator Location: Top
• Actuator Style: Wobble Stick
• Arm/Operator Length: 1.1 in
• Compatible with Brand: Eaton
• Compatible with Grainger Part Number: 49A973
• Compatible with Manufacturer Model Number: E50SA
• Compatible with Series: E50
• Differential Travel: 15°
• Directional Movement: Omnidirectional
• Display Qty: 1
• Display Sell UOM: EA
• Includes Actuator: No Actuator Included
• Manufacturer Warranty Length: 1 yr
• NEMA Enclosure Rating: 1; 3; 3S; 4; 4X; 6; 6P; 13
• Operating Torque: 2 in-lb
• Overall Depth: 1.85 in
• Overall Height: 1.78 in
• Overall Width: 1.54 in
• Overtravel: 10°
• Pretravel: 5°
• Total Travel: 15°
