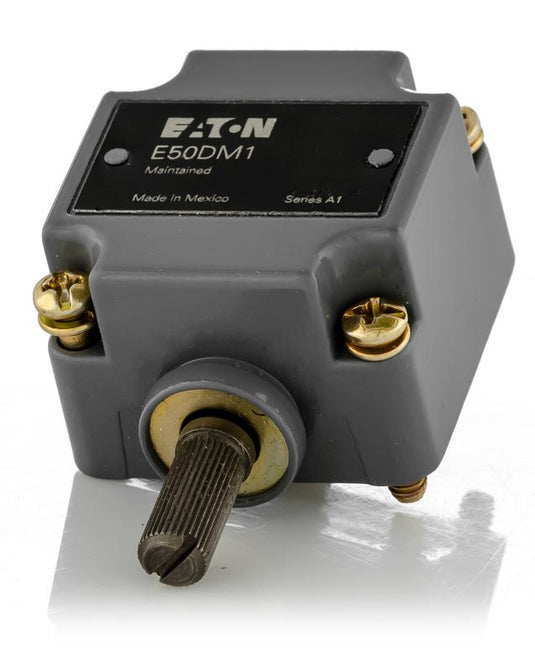

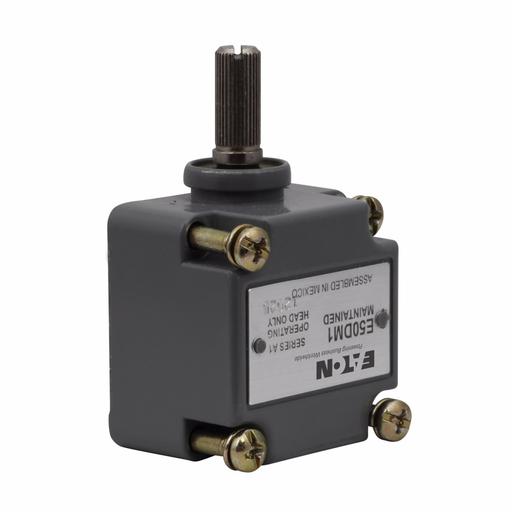

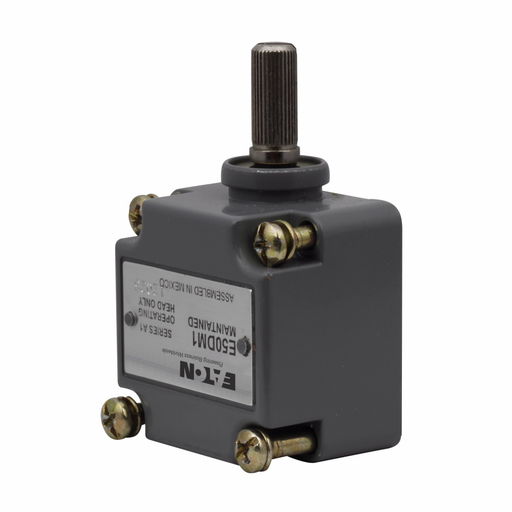

Eaton E50DM1 Limit Switch Head Side Rotary Maintained 2 Position

Product Description

The Eaton E50DM1 is a heavy-duty plug-in limit switch head with a side rotary, maintained 2-position actuator. Constructed with die-cast zinc, it is NEMA rated 1, 3, 3S, 4, 4X, 6, 6P, 13, and IP67. This limit switch is suitable for use with the E50 series heavy-duty plug-in side rotary limit switch.

• Modular, plug-in components provide application flexibility and reduced downtime.
• Manufactured to withstand physical and environmental stress, including cutting fluids and chemicals.
• Features chemical-resistant Viton gaskets, seals, and boots with captive, Posi-Drive screws.

Product Highlights

The E50DM1 limit switch head offers design versatility and high reliability for low maintenance, installation, and inventory costs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50DM1

Technical Specifications

• Type: Heavy duty plug-in limit switch
• Brand: Eaton
• Width: 1.54 in
• Height: 2.46 Inch
• Length: 1.05 Inch
• Weight: 0.11 lb
• Actuator: Side Rotary, Maintained 2 Position
• Material: Zinc Die Cast
• Enclosure Material: Zinc Die Cast
• Operating Temperature: -10 To 94 degrees C
• Product Name: Eaton E50 NEMA heavy duty plug-in limit switch
• Catalog Number: E50DM1
• Product Length/Depth: 1.05 in
• Product Height: 2.46 in
• Product Width: 1.54 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Recognized CSA Certified UL Listed
• Product Type: Heavy duty plug-in limit switch
• Cable type: SOOW-A
• Enclosure material: Die cast zinc
• Series: E50 heavy duty plug in E50
• Switch type: Side rotary Maintained
• Operating temperature - max: 201
