Eaton E50DG1 CH E50 Heavy Duty Limit Switch Special Purpose Head

Product Description

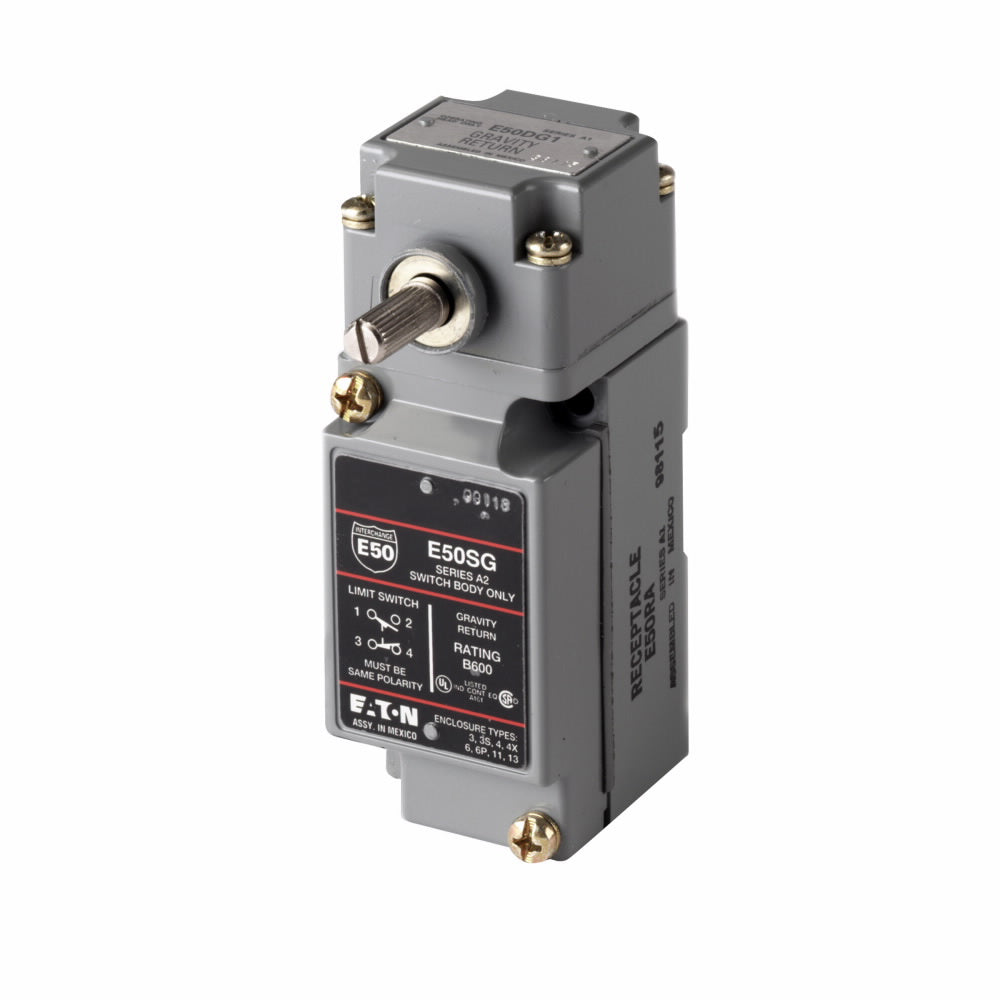

The EATON E50DG1 is a limit switch head designed for heavy-duty applications. Featuring a rotary lever actuator and side actuator location, it is suitable for use with the E50 series of plug-in limit switches. Constructed from die-cast zinc, it offers exceptional chemical resistance and reliable performance in harsh industrial environments.

• Rotary lever actuator with side location
• Suitable for E50 series heavy-duty plug-in limit switches
• Die-cast zinc construction for chemical resistance

Product Highlights

The EATON E50DG1 limit switch head is a reliable component for industrial applications, offering durability and precise operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50DG1
• Country of Origin: United States

Technical Specifications

• Actuator Location: Side
• Actuator Type: Rotary Lever
• Application: Water and Wastewater System Applications
• Manufacturer Part Number: E50DG1
• Material: Die Cast Zinc
• NEMA Rating: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Operating Force: 3 in-oz
• Series: E50
• Standards/Approvals: CE Certified|CSA Certified|RoHS Compliant|UL Listed
• Suitable For Use With: E50 Series Heavy Duty Plug-In Limit Switch
• Temperature Rating: 14 to 201 deg F
• Travel: 360 deg
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Heavy duty plug-in limit switch
• Type: Operating Head
• Cable type: SOOW-A
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
• UNSPSC: 39122213
• Terminal Connection: Screw
• Duty Rating: Heavy Duty
• Enclosure Material: Die Cast Zinc
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP67
• (Instrument-Sensor) Actuator: Side Pushbutton
• Sub Component: Heavy-Duty Plug-In Switch
• (Instrument-Sensor) Enclosure Composition: Die Cast Zinc
• (Instrument-Sensor) Temperature Range: 14 {
• Dimensions: 1.05 in L x 1.54 in W x 2.46 in H
