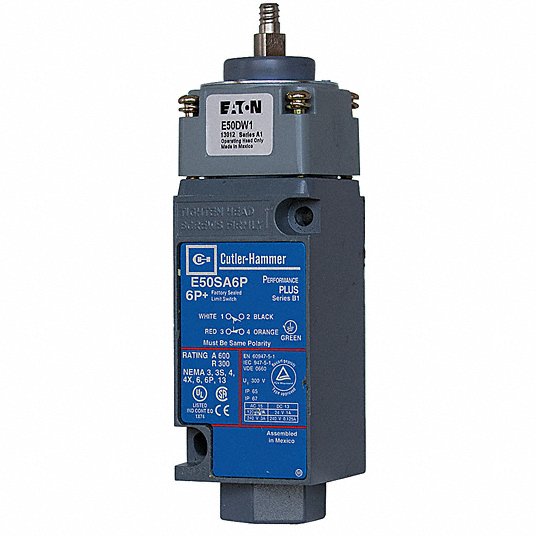

Eaton E50AW16P Heavy Duty Limit Switch Wobble Stick 1NC/1NO

Product Description

The EATON E50AW16P is a heavy-duty limit switch with a wobble stick actuator. Rated to 600V AC, this switch is designed for demanding industrial settings. It features a 1NC/1NO contact form and an 8ft cable connection. The modular, plug-in design offers application flexibility and reduces downtime.

• Wobble stick actuator style
• 1NC/1NO contact form
• NEMA 3, 3S, 4X, 6P enclosure rating

Product Highlights

The EATON E50AW16P limit switch offers a reliable solution for heavy-duty industrial applications with its robust design and versatile features.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E50AW16P
• Country of Origin: Mexico

Technical Specifications

• Series: E50
• Amperage: 10
• Voltage: 240/600VAC
• Mounting Type: Chassis Mount
• Approval: CE, UL, CSA
• Terminal Connection: 8ft Cable
• Nema Rating: 1, 3, 3S, 4, 4X, 6, 6P, 13
• Length (in): 1.54
• Width (in): 3.03
• Height (in): 4.67
• Standards: CE, CSA, UL, NEMA
• Temperature Rating: 14 to 221 °F
• Duty Rating: Heavy Duty
• Actuator Type: Wobble Stick
• Enclosure Material: Die Cast Zinc
• Action: Momentary/Momentary
• Contact Configuration: 1NO, 1NC
• Mpn: E50AW16P
• Upc: 782113135793
• Gtin: 00782113135793
• Depth [Specifications]: 1.79"
• Height [Specifications]: 1.48"
• Weight [Specifications]: 2.1 lb
• Movement [Specifications]: Rotary
• IP Rating: IP67; IP69K
• Wiring Entry [Specifications]: 1/2 in NPT
• Certification [Specifications]: UL Listed
• Actuator Location: Top
• Electrical Connection [Specifications]: 8 ft Cable
• Operating Temp. Range [Specifications]: 14 Degrees to 250 Degrees F
• Body Depth - Limit Switch [Specifications]: 1.78 in
• Body Style - Limit Switch [Specifications]: Standard
• Body Width - Limit Switch [Specifications]: 1.54 in
• Body Height - Limit Switch [Specifications]: 3.13 in
• Stem Thread - Limit Switch [Specifications]: No Stem
• Mounting Hole - Limit Switch [Specifications]: (2) 0.20 in dia
• Actuator Length: 1.54 in
• Operating Force: 2 lbf
• Reset Travel: 6°
• Total Travel: 15°
• Product Length/Depth: 1.54 in
• Product Height: 4.67 in
• Product Width: 3.03 in
• Product Weight: 2.1 lb
• Warranty: 1 year
• Compliances: CE Marked
• Cable type: SOOW-A
• Connection: 8 ft (2.4 m) cable
• Switch type: Wobble stick
• Operating temperature - max: 221 °F
• Operating temperature - min: 14 °F
• Environmental rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
• Maximum AC current: 10 A
• Maximum DC current: 1 A
• Differential Travel: 15°
• Directional Movement: Omnidirectional
• Includes Actuator: No Actuator Included
• Manufacturer Warranty Length: 1 yr
• Operating Torque: 2 in-lb
• Overall Depth: 1.54 in
• Overall Height: 5.38 in
• Overall Width: 1.58 in
• Pretravel: 5°
• Contact Rating: 10A at 240Vac, 1A at 250Vdc
• Voltage Rating - DC: 125 V
• Manufacturer: Eaton Electrical
• Packaging: Box
• Termination Style: Cable Leads
• Part Status: Active
• Ingress Protection: IP67 - Dust Tight, Waterproof
• Circuit: DPST-NO/NC
• Mechanical Life: 13,000,000 Cycles
• Switch Function: On-Off, Off-On
• Electrical Life: 100,000 Cycles
• Current Rating (Amps): 10A (AC), 1A (DC)
• Operating Temperature: -10°C ~ 94°C
• Voltage Rating - AC: 120 V
• (Instrument-Sensor) NEMA Protection: NEMA 3S
• (Instrument-Sensor) IP Protection: IP69K
• (Instrument-Sensor) Contact Configuration: 1 NO + 1 NC
• (Instrument-Sensor) Cable Length: 8 Ft
• (Instrument-Sensor) Actuator: Wobble Stick
• (Instrument-Sensor) Contact Rating: 1 Amp At 250 VDC
• Sub Component: Heavy-Duty Plug-In Switch
• (Instrument-Sensor) Enclosure Composition: Die Cast Zinc
• (Instrument-Sensor) Temperature Range: 14 °F - 221 °F
