Product Description

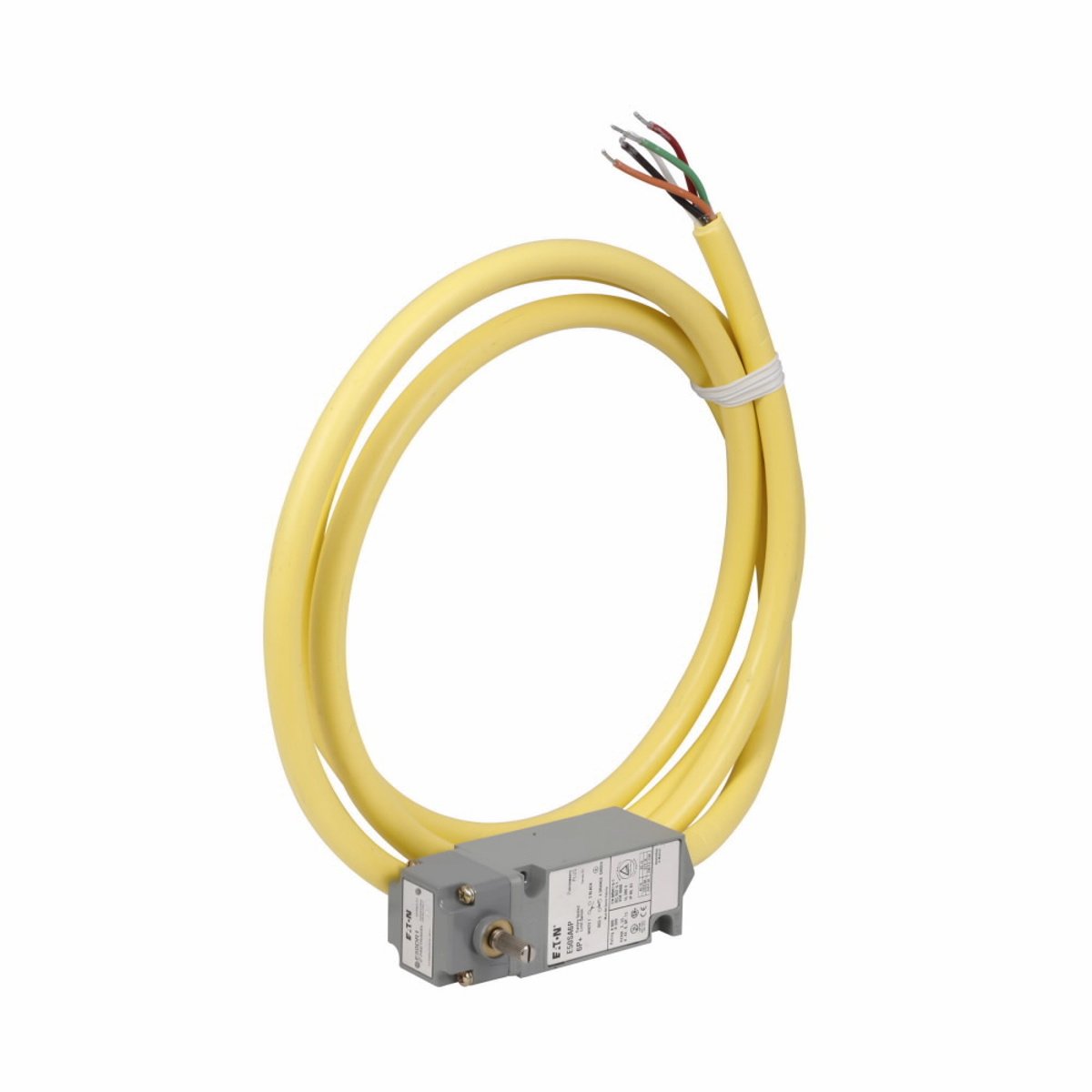

Eaton E50AR16P is a 240 VAC, 10 Amp plug-in limit switch designed for various heavy-duty applications. This switch features a die-cast zinc enclosure which offers protection against corrosion. The device operates on a side rotary mechanism with a standard spring return. It supports a contact configuration of one normally open (NO) and one normally closed (NC) contact.
- Rated for 10 Amp at 240 VAC and 1 Amp at 250 VDC
- IP67 and IP69K rated for water and dust resistance
- Operating temperature range from ten to two hundred degrees Fahrenheit
Product Highlights
Eaton's E50AR16P limit switch combines high reliability with low maintenance. It fits mounting dimensions compatible with both U.S. and DIN standards, simplifying installations.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer: Cutler-Hammer / Eaton
Technical Specifications
-
Catalog Number: E50AR16P
-
Contact Configuration: 1NO-1NC
-
Contact Rating: 10A at 240 VAC, 1A at 250 VDC
-
Actuator: Side rotary, standard spring return
-
Country of Origin: Mexico
-
Weight: 2.81 lb
-
Dimensions: 1.54 in width, 2.46 in height, 4.62 in length
-
Operating Temperature: 10 to 200 degrees F
