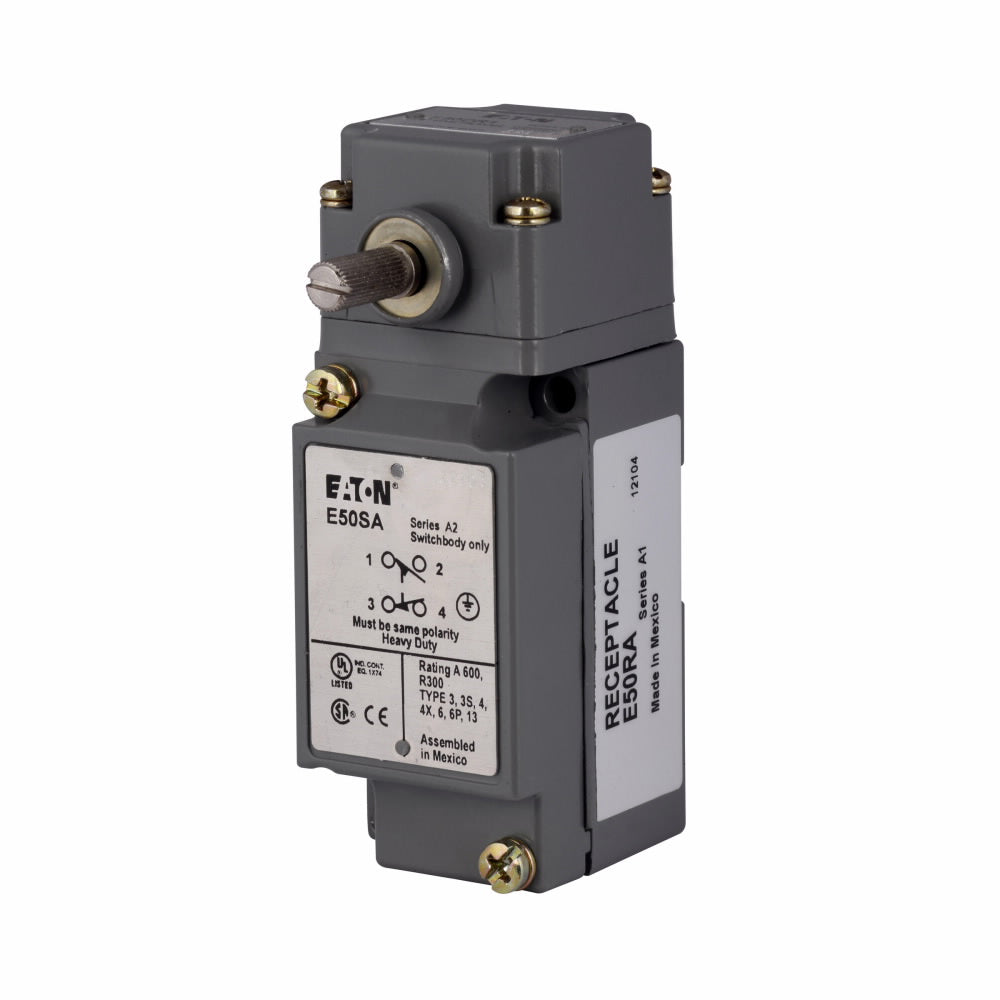

EATON E50AR1 Assembled Heavy Duty Plug-In Limit Switch 10 A at 240 VAC 1NO-1NC

Product Description

The EATON E50AR1 is an assembled heavy duty plug-in limit switch. It features one normally open and one normally closed contact. The device operates at 10 A at 240 VAC and 1 A at 250 VDC. It is designed for rotary action with a side rotary actuator, connecting via screw terminals. This model is suitable for various industrial applications, including automotive and wastewater systems.

• High reliability and low maintenance.
• Versatile design accommodates U.S. and DIN mounting standards.
• Exceptional chemical resistance due to its die-cast zinc enclosure.

Product Highlights

The E50AR1 includes standard Viton gaskets and seals. Its robust construction ensures durability in demanding conditions.

Product Information

Standard Information

• Manufacturer: EATON
• Catalog Number: E50AR1
• UPC: 782113289861
• Country of Origin: Mexico

Technical Specifications

• Contact Rating: 10 A at 240 VAC, 1 A at 250 VDC
• Size: 4.22 in L x 1.54 in W x 2.46 in H
• Enclosure Type: NEMA 1/3/3S/4/4X/6/6P/13/IP67
• Operating Temperature: 10 to 200 degrees F
• Material: Die Cast Zinc
• Actuator Type: Side Rotary
• Contact Configuration: 1NO-1NC
• Connection Type: Screw Terminal
