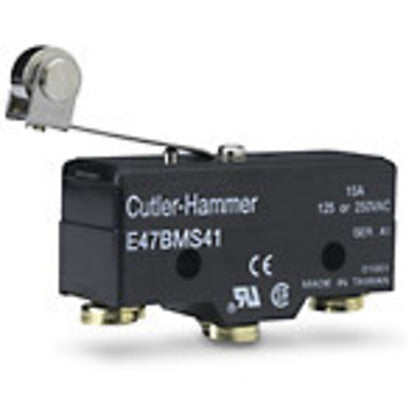

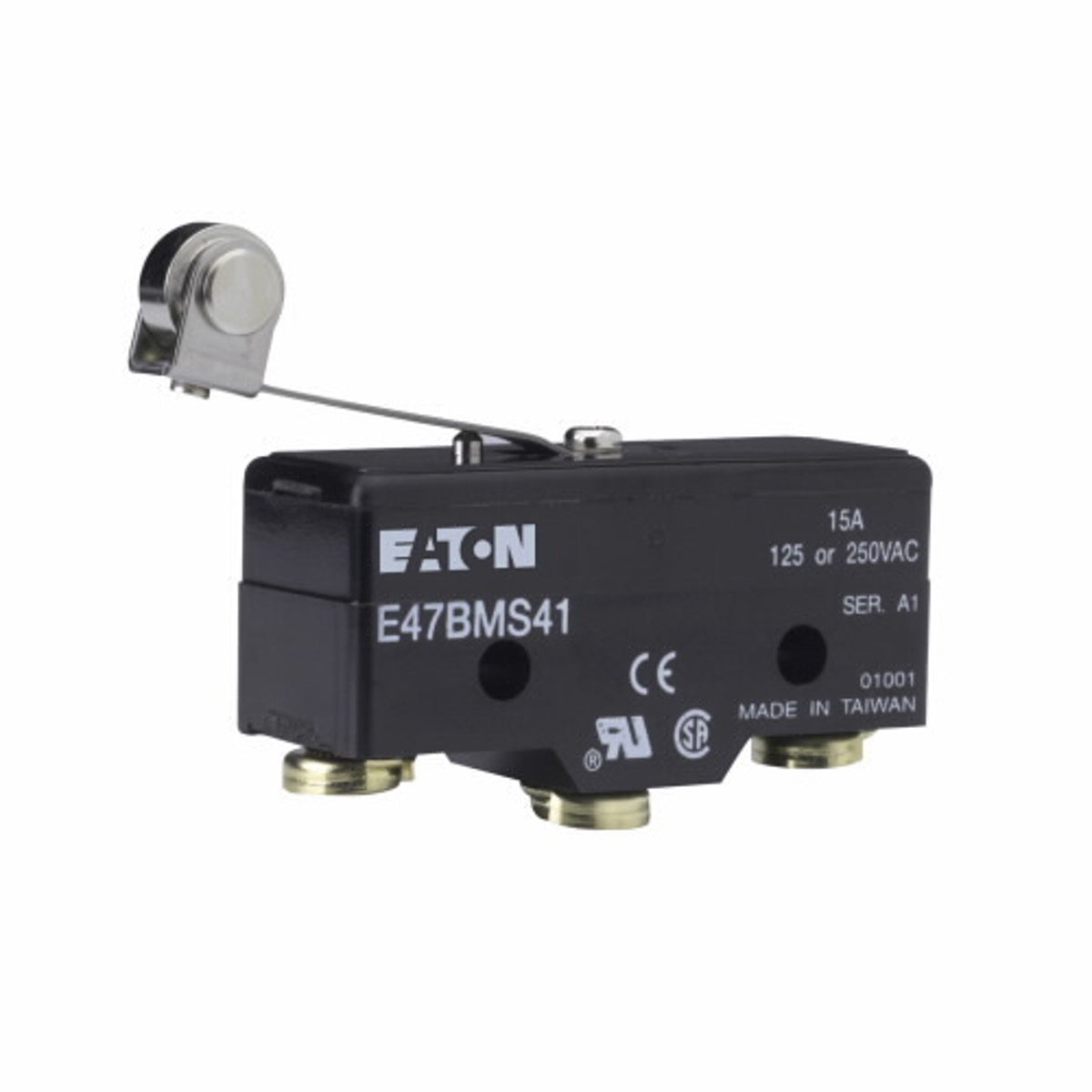

Eaton E47BMS41 Precision Limit Switch Reversed Roller Lever 15A at 250 Vac, 6A at 30 Vdc 1-SPDT (Form C)

Product Description

The EATON E47BMS41 precision limit switch provides high accuracy switching at an affordable price. Designed as a versatile, slim device for hard-to-fit applications where sealing integrity is required. The rugged die-cast aluminum alloy housing, cable connection and switch mechanism are encapsulated for protection.

• Compact housings are ideal for use where space is restricted
• Precision, snap action operators provide accurate repeatability of electrical and mechanical operating characteristics
• High current capacity (up to 20 A) allows power load switching and motor handling capability

Product Highlights

E47 precision switches provide accurate repeatability and are ideal for use where space is restricted.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BMS41
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: E47BMS41
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Actuator: Reversed roller lever
• Application: Ind Facilities & Factories - Facility: Safety and Security Systems
• Connection: Screw terminal
• Contact Configuration: 1-SPDT (form C)
• Contact Rating: 15 A at 250 VAC, 6 A at 30 VDC
• Standard: UL Listed,CSA Certified
• UPC: 782113770864
• GTIN: 00782113770864
• Item Type: Limit switch
• Operating Temperature: -13 to 176 deg F
• Action: Spring Return
• Closed Contact Resistance: 15 MOhm
• Connection Type: Screw
• Enclosure Type: NEMA 1
• Frequency Rating: 50/60 Hz
• Material: Phenolic
• Mounting Type: Threaded
• Operating Cycles: 20 cpm
• Series: E47
• Type: Basic
• Voltage Rating: 250 VAC, 30 VDC
• Amperage Rating: 6/15 A
• Number of Poles: 1
• Product Length/Depth: 2.5 in
• Product Height: 0.6 in
• Product Width: 1.8 in
• Product Weight: 0.08 lb
• Certifications: CSA Certified UL Listed
• Product Type: Limit switch
• Operating speed: 0.01 mm/s-1m/s
• Model: E47BMS41
• MPN: E47BMS41
• AC Contact Rating: 15 A @ 250 V
• Actuator Style: Roller, Lever
• Body Material: Thermoplastic
• Center Mounting Hole Distance: 1 in
• Contact Form: SPDT
• DC Contact Rating: 6 A @ 30 V
• Differential Travel - Maximum: 0.051 in
• Display Qty: 1
• Display Sell UOM: EA
• Electrical Connection: Screw Terminals
• Includes: Reversed Roller Lever
• Lever Actuator Length: 1.81 in
• Operating Force - Maximum: 28.22 ozf
• Operating Force - Minimum: 0.35 ozf
• Over Travel: 0.063 in
• Overall Depth: 2.5 in
• Overall Height: 0.6 in
• Overall Width: 1.8 in
• Pre-Travel: 0.016 in
• Release Force: 0.49 ozf
• Roller Adjustability: Fixed
• Roller Diameter: 0.37 in
• Roller Material: Nylon
• Roller Position: Top
• Roller Width: 0.16 in
• Standards: CSA; UL Listed
