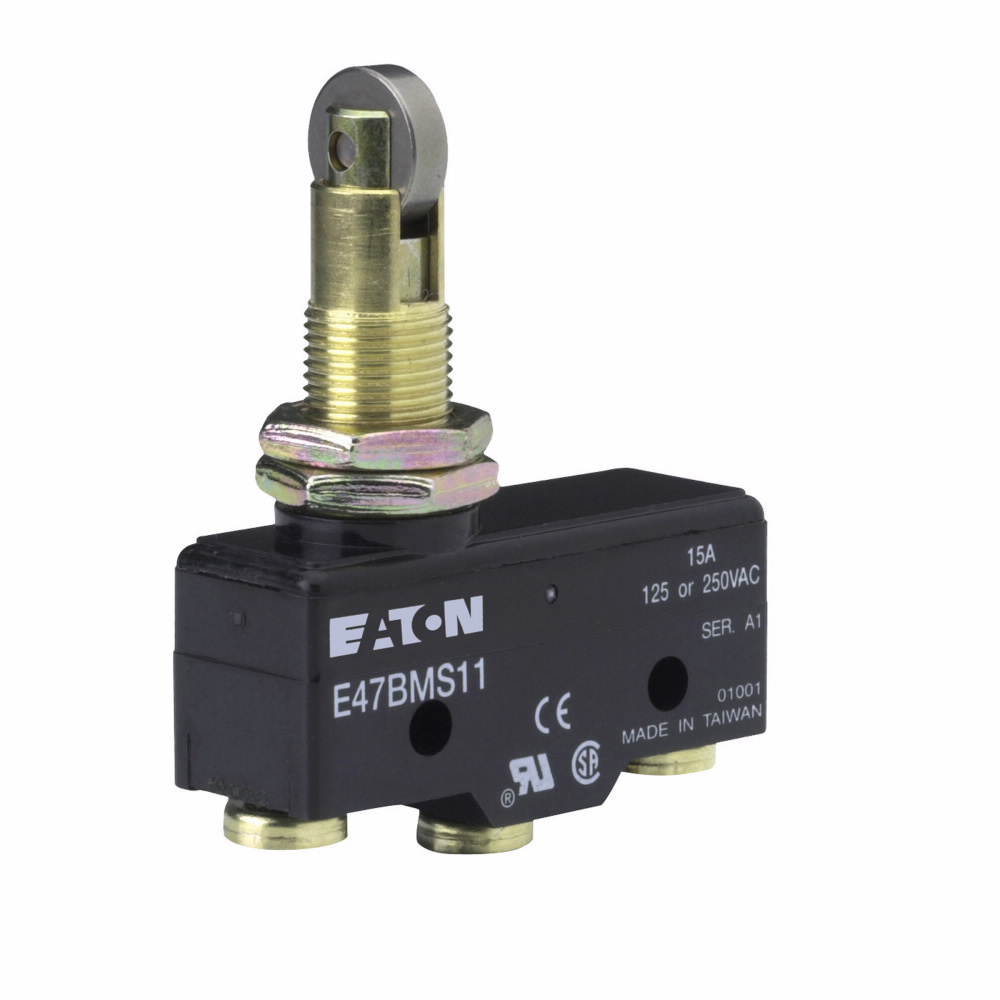

Eaton E47BMS11 ETN E47 limit switch 15A at 250 Vac - E47BMS11

Product Description

The Eaton E47BMS11 is a precision limit switch designed for various applications. It features a cross roller plunger and screw terminals. It can handle a load of 15 amps at two hundred fifty volts AC and six amps at thirty volts DC. The switch operates within a speed range of zero point zero one millimeters per second to one meter per second and comes in a one single pole double throw configuration.

• Cross roller plunger actuator type
• Operating temperature range from -13 to 176 degrees Fahrenheit
• Compact design suitable for hard-to-fit applications

Product Highlights

The Eaton E47BMS11 limit switch is ideal for safety and security systems in industrial facilities and factories. It provides accurate switching capabilities and features a robust design suitable for harsh environments.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: E47BMS11
• UPC: 782113770925
• GTIN: 00782113770925
• Weight: 0.12 lb
• Height: 1.82 inches
• Length: 1.94 inches
• Contact Rating: 15A at 250 Vac, 6A at 30 Vdc
• Contact Configuration: 1-SPDT (Form C)
• Connection: Screw terminals
• Enclosure Material: Mineral Filled Phenolic
• Operating Temperature: -13 to 176 degrees Fahrenheit
• Application: Industrial facilities and factories, safety and security systems
