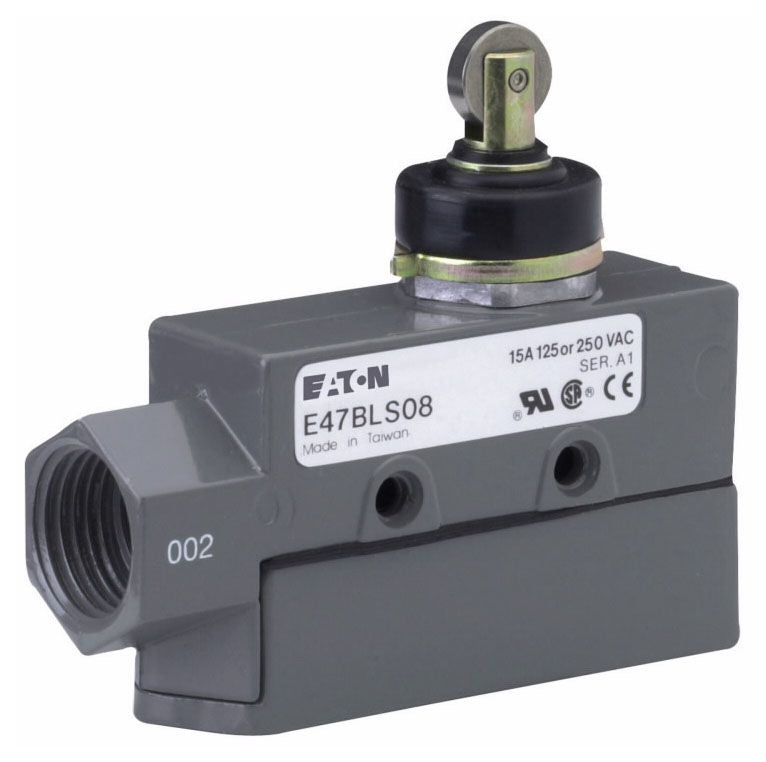

Eaton E47BLS08 Enclosed Spdt Limit Switch

Product Description

The EATON E47BLS08 is an enclosed single-pole double-throw (SPDT) limit switch designed for industrial and commercial control applications. It provides reliable position detection and circuit switching in machinery, conveyor systems, HVAC equipment, and automated process controls. The enclosed housing protects internal contacts from contaminants in demanding environments. Licensed electricians and industrial maintenance technicians install this switch as part of control circuits requiring precise mechanical actuation to open or close a circuit path.

The E47BLS08 is suited for residential and light commercial HVAC systems, industrial machinery, and process automation setups where a compact, enclosed SPDT limit switch is required. Its low-profile footprint measuring 4.5 inches by 3.5 inches by 1.0 inch makes it adaptable to panel cutouts and enclosures with limited space. It is a direct fit for replacement or new-installation limit switch applications in control panels and equipment frames.

Key Features

• Enclosed housing protects contacts from dust, debris, and moisture ingress
• SPDT configuration allows use as normally open, normally closed, or changeover switch in a single unit
• Compact profile at 4.5 inches x 3.5 inches x 1.0 inch fits tight panel installations
• Lightweight at 0.47 pounds for easy mounting without additional structural support
• Suitable for position sensing, safety interlocking, and mechanical actuation applications

Compatibility

Designed as an OEM-style replacement or new-installation enclosed SPDT limit switch for industrial control panels, HVAC systems, and automated machinery requiring mechanical position detection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit and lock out the power supply before mounting or wiring the switch. Ensure the actuator is aligned with the mechanical trip point before securing the switch housing. Verify correct terminal connections for the normally open and normally closed contacts before restoring power.

Technical Specifications

• Switch Type: Enclosed Limit Switch
• Contact Configuration: SPDT
• Length: 4.5 inches
• Width: 3.5 inches
• Height: 1.0 inch
• Weight: 0.47 pounds
• UPC: 78211377114

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BLS08
