Eaton E47BLS07 Ch Precision Limit Sw, Encl, Rollr Plnger Actuatr

Product Description

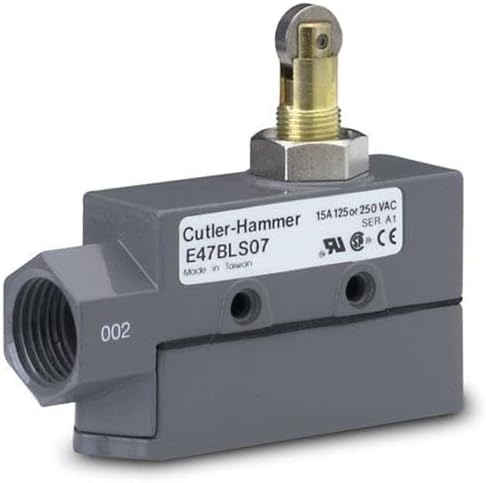

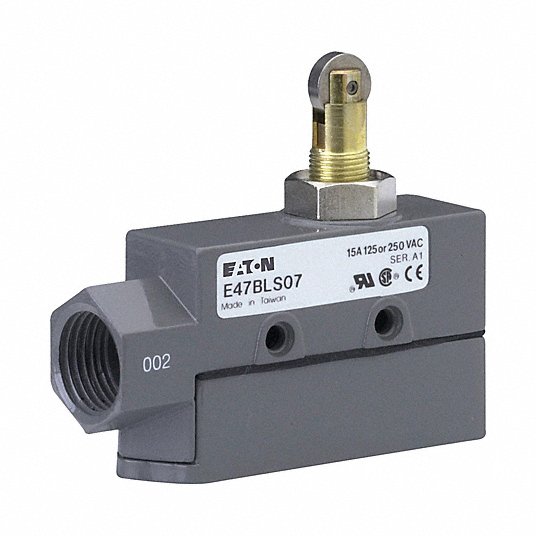

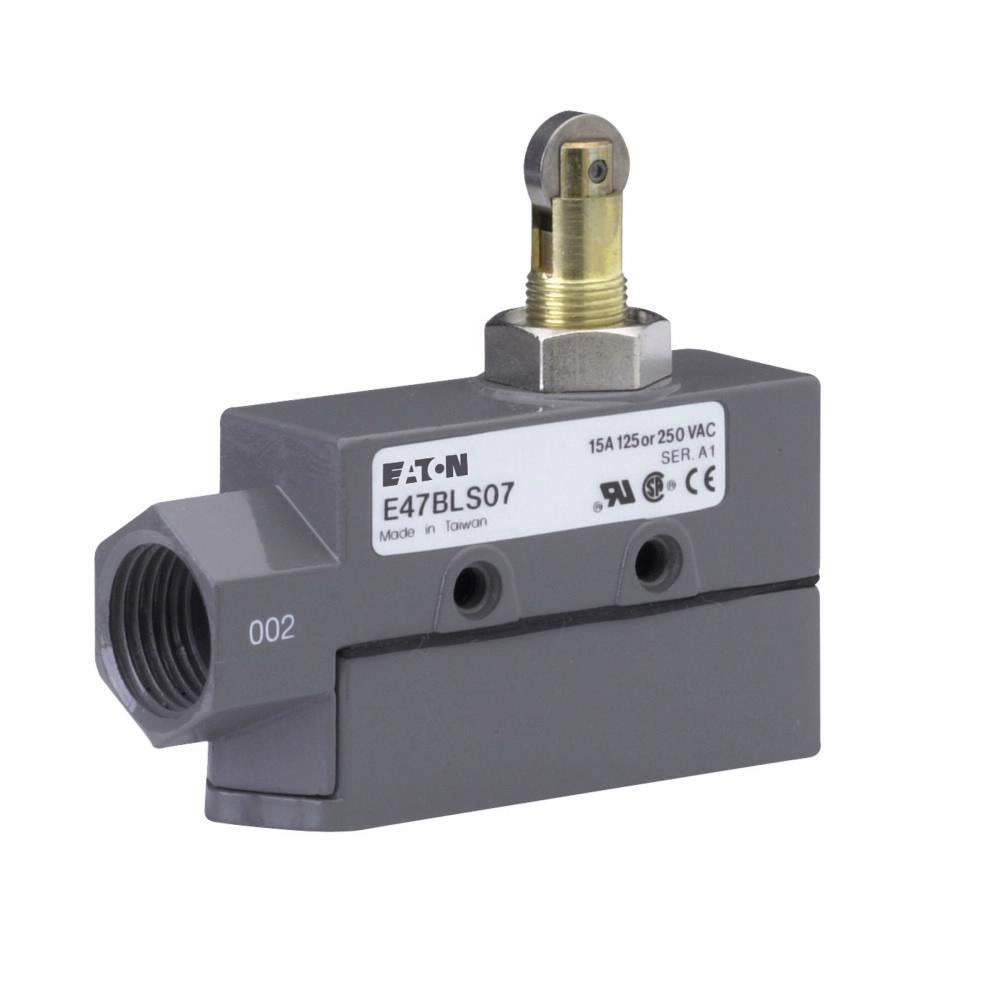

The EATON E47BLS07 precision limit switch is enclosed and part of the E47 series. It operates at 250 VAC and 30 VDC with a 6/15 A amperage rating and a 50/60 Hz frequency. It features a SPDT Form C contact configuration and a roller plunger actuator. Designed for threaded mounting and housed in a NEMA 1 enclosure.

• Compact housings ideal for restricted spaces
• Snap action operators ensure accurate repeatability
• High current capacity allows power load switching and motor handling

Product Highlights

This precision limit switch offers high accuracy switching for automation, safety, and security systems. Its rugged metal housing and versatile features make it suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E47BLS07
• Country of Origin: Taiwan

Technical Specifications

• Actuator: Roller Plunger
• Amperage Rating: 6/15 A
• Application: Overhead, Folding and Elevator Doors, Sliding Gates, Automated Guided Vehicles and Commercial Instrumentation
• Closed Contact Resistance: 15 MOhm
• Connection Type: Screw
• Contact Configuration: SPDT Form C
• Contact Rating: 15 A at 250 VAC, 6 A at 30 VDC
• Enclosure: NEMA 1
• Frequency Rating: 50/60 Hz
• Manufacturer Part Number: E47BLS07
• Material: Phenolic
• Mounting Type: Threaded
• Number of Poles: 1
• Operating Cycles: 20 cpm
• Operating Temperature: -13 to 176 deg F
• Series: E47
• Standards/Approvals: CSA Certified|cULus Listed|UL Listed
• Type: Enclosed
• Voltage Rating: 250 VAC, 30 VDC
• Product Length/Depth: 3.39 in
• Product Height: 3.01 in
• Product Width: 1 in
• Product Type: Limit switch
• Environmental rating: NEMA 1
• Maximum AC current: 15 A
• Maximum DC current: 15 A
• Operating speed: 0.01 mm/s-1m/s
• Current Rating: 15 Amps
• Operating Voltage: 600 Volts
• Actuator Type: Plunger
• Model: E47BLS07
• Manufacturer: Eaton Cutler Hammer
• Part Number: E47BLS07
• Action: Spring Return
• Standard & Approvals: UL Listed, CSA, CE Certified, RoHS Compliant
• Body Material: Aluminum
• Center Mounting Hole Distance: 1 in
• Contact Form: SPDT
• Differential Travel - Maximum: 0.002 in
• Display Qty: 1
• Display Sell UOM: EA
• Electrical Connection: Screw Terminals
• Includes: Roller Plunger
• Operating Force - Maximum: 28.22 ozf
• Operating Force - Minimum: 0.35 ozf
• Over Travel: 0.142 in
• Overall Depth: 3.39 in
• Overall Height: 3.01 in
• Overall Width: 1 in
• Pre-Travel: 0.016 in
• Release Force: 8.82 ozf
• Roller Adjustability: Fixed
• Roller Material: Metal
• Roller Position: Top
• Roller Width: 0.5 in
• Standards: CSA; UL Listed
• Features: Snap Action Switch, Series E47
• Country of Origin: TW
• Item Height: 4.500
• Item Length: 1.000
• Item Width: 3.500
• Weight: 0.4700
• Length: 1.000
• Width: 3.500
• Depth: 3.500
